Big Block Chevy Up & Forward Twin Turbo Kit

Available with BorgWarner or CompTurbo performance turbochargers
Availability: Current Lead Times are 2-3 Weeks
Pricing: $5,669.95

Customize Your Item

- Twin TurboCharger Selection -
 * required
- Turbosmart Wastegate Selection -
 * required
- Wastegate Anodize Color -
 * required
- -
 * required
- Log Manifold Size -
 * required
- ARP Header Bolts -
 * required


Big Block Chevy Up & Forward Twin Turbo Kit

This universal twin turbo header kit has everything you'll need to assemble your own high-performance stainless turbo header. Every component is carefully selected for premium, reliable performance, wrapped into an affordable kit.

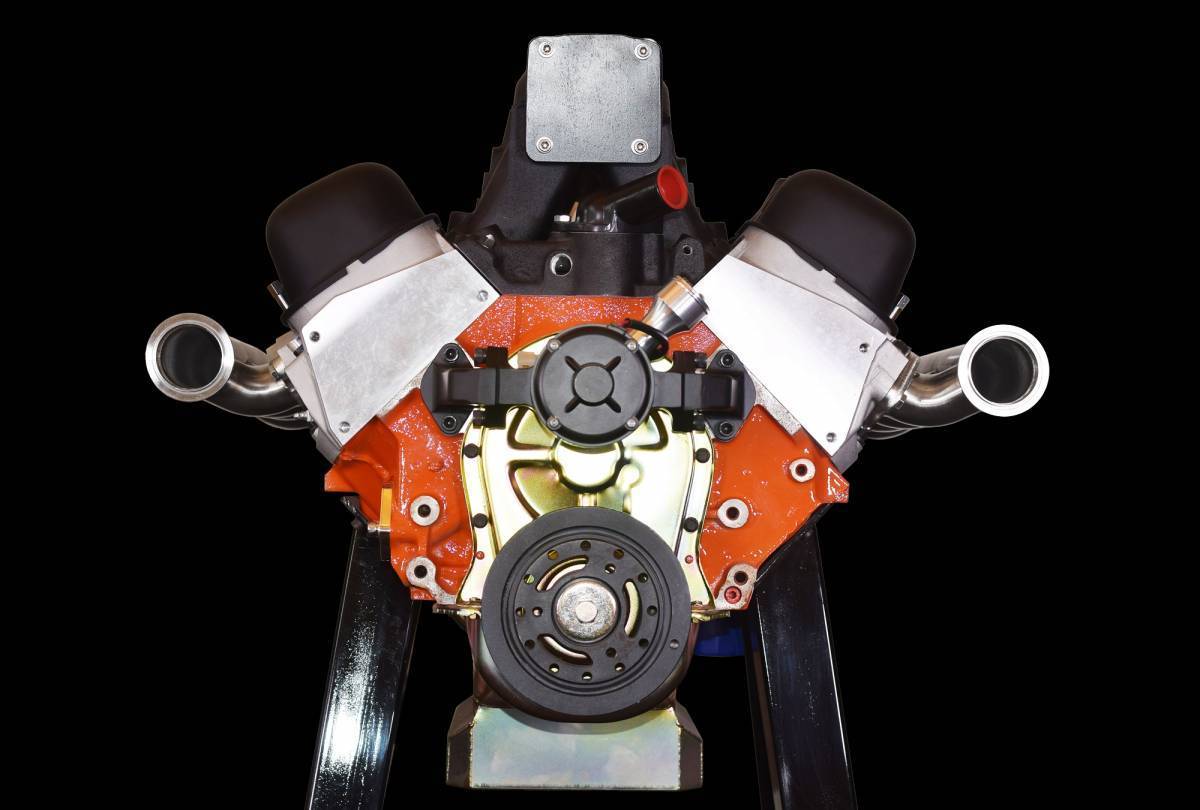

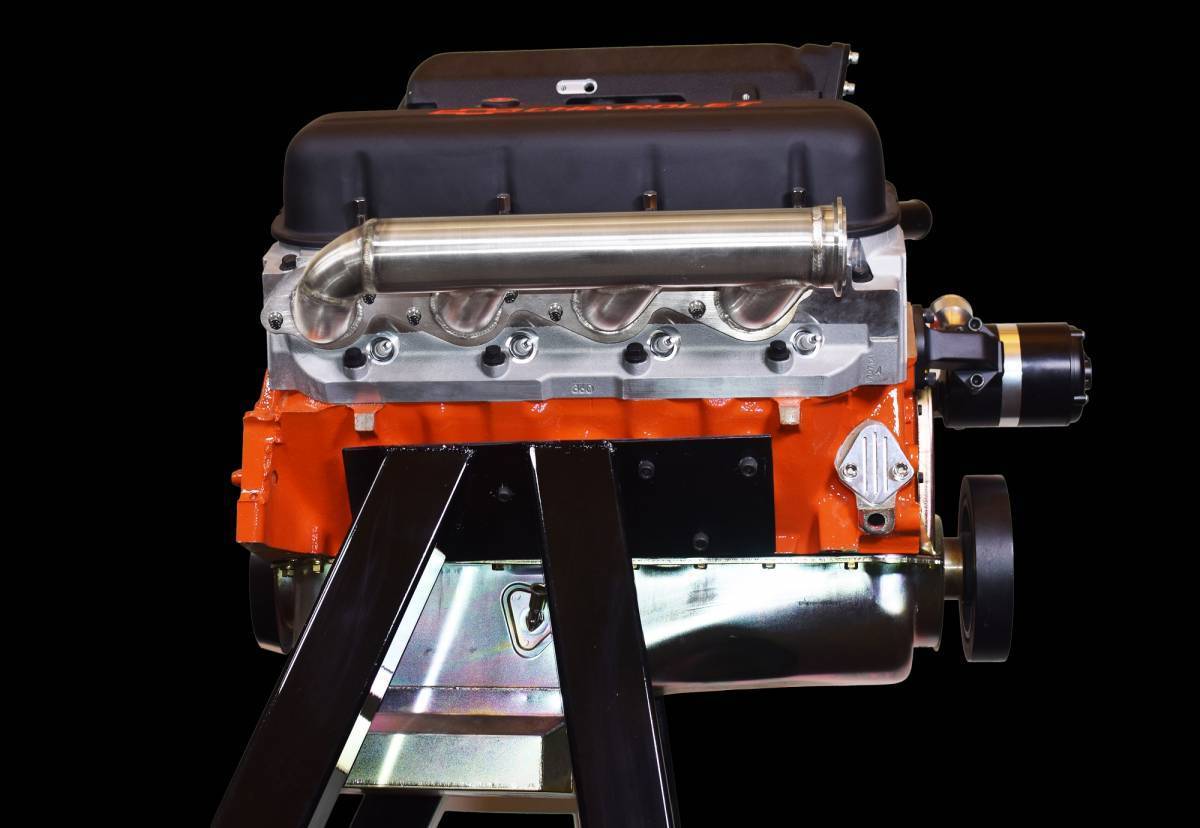

This Big Block Chevy twin turbo kit uses our proven turbo manifolds with 0.120" thick, 304SS tubular construction, and completely TIG welded. The log manifolds are designed specifically for all conventional style Big Block Chevy cylinder heads. These bolt up to, and function great with, BBC square port & D-port heads as well.

The flanges include slotted bolt holes, are 1/2" thick, and surfaced + straightened for optimum sealing surface to the cylinder head.

**Lead times on the turbo manifolds are currently 15-20 business days**

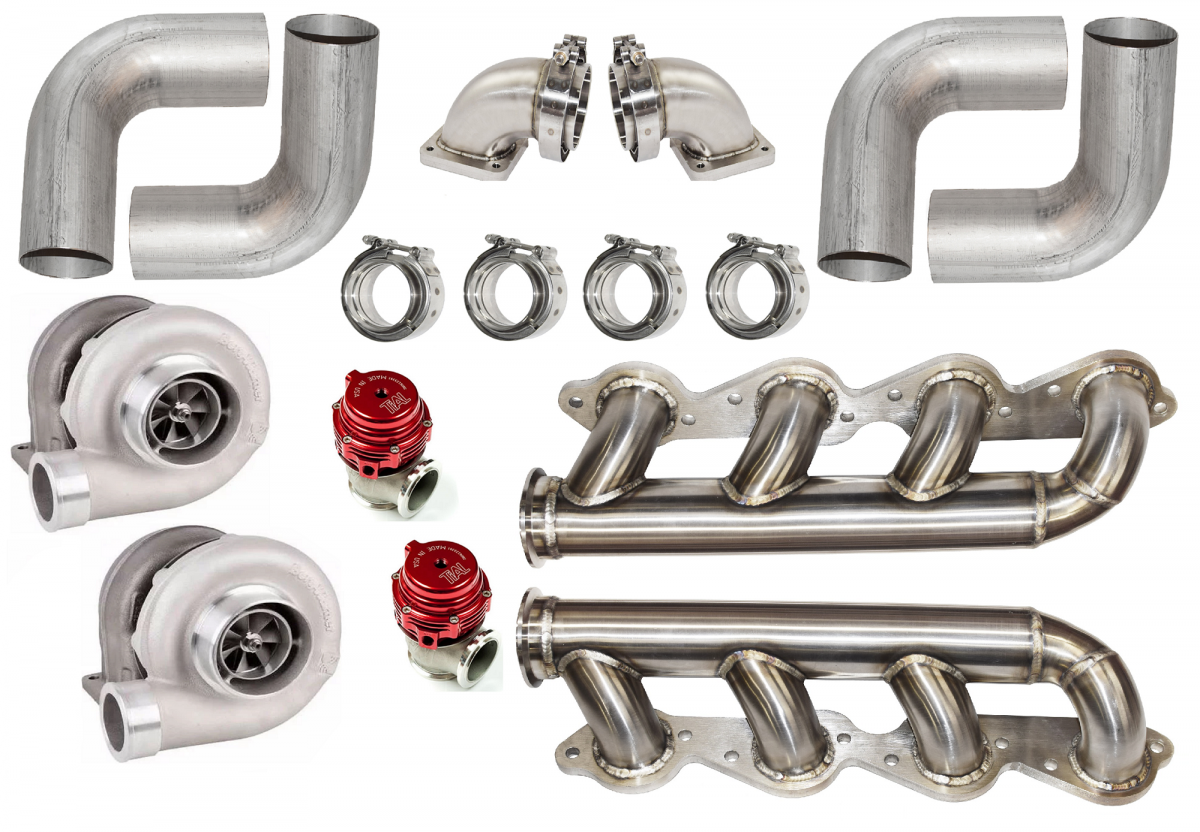

The kit will come with the following:

  • (2) American Made 304SS Turbo Log Manifolds (2.5" or 3" diameter. SELECT above)

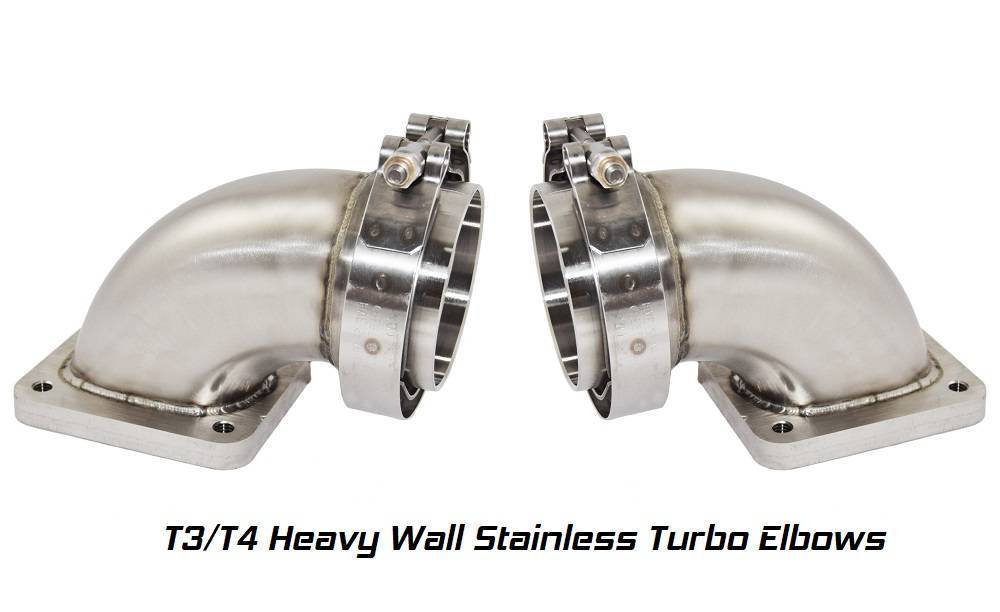

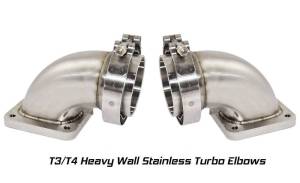

  • (2) American Made 304SS 90 Degree T4/T6 Turbo elbows, also built from the same 0.120" thick 304SS tubing. Including wastegate tubes to fit the selected wastegates.

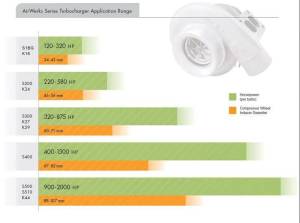

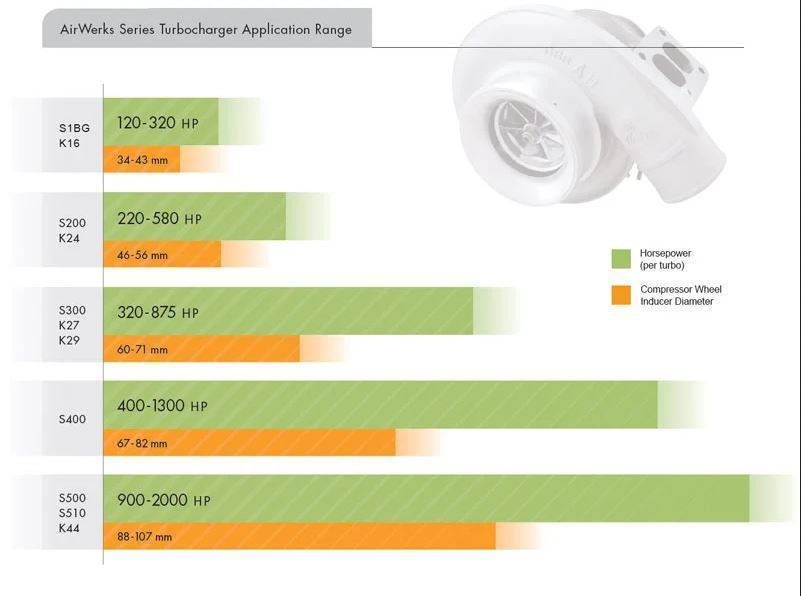

  • (2) Performance BorgWarner Turbochargers- Several options available

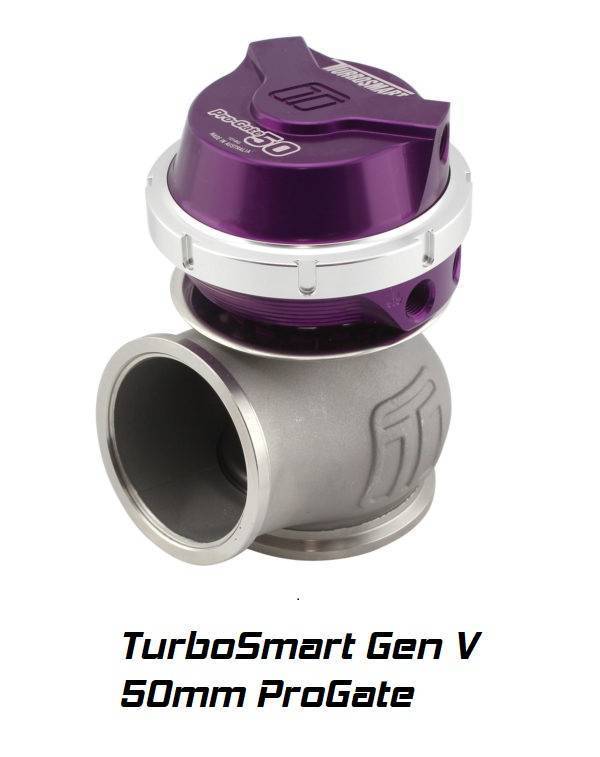

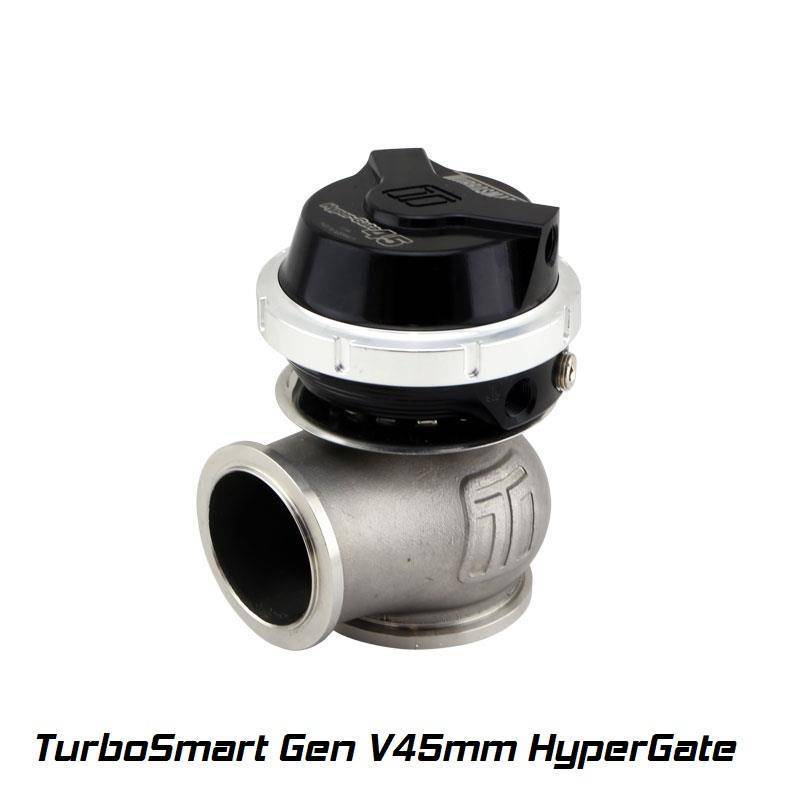

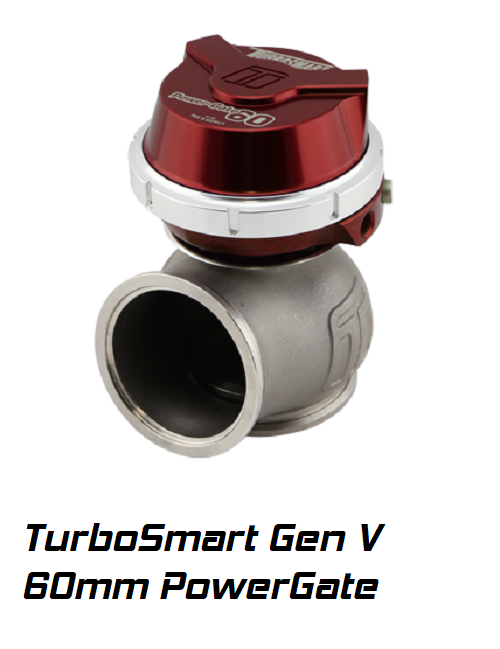

  • (2) Performance TurboSmart Wastegates- Several options available
  • (2) Turbo Downpipe flanges (Marmon or V-Band) & Downpipe stubs
  • (4) American Made 304SS 90 Degree Bends to fit the selected turbo downpipe size

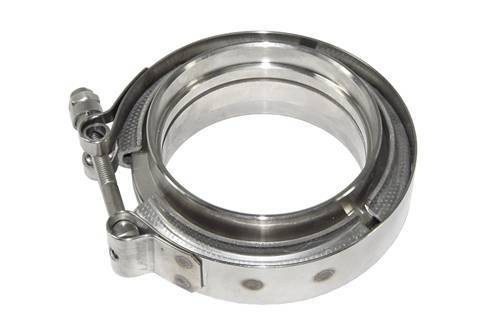

  • (4) American Made 304SS V-Bands to fit the downpipe size



Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W31.0000” x H20.0000” x L20.0000”
  • $20.00
  • This item ships in its own box.
