BorgWarner S480SX4 Series Turbo- 80mm #177287

SHM-BWS480SX4-80
BorgWarner S480SX4 Series Turbo- 80mm #177287
Please Call for Availability
1-800-290-3920
Availability: 3-4 Day Lead time for Shipment

Description

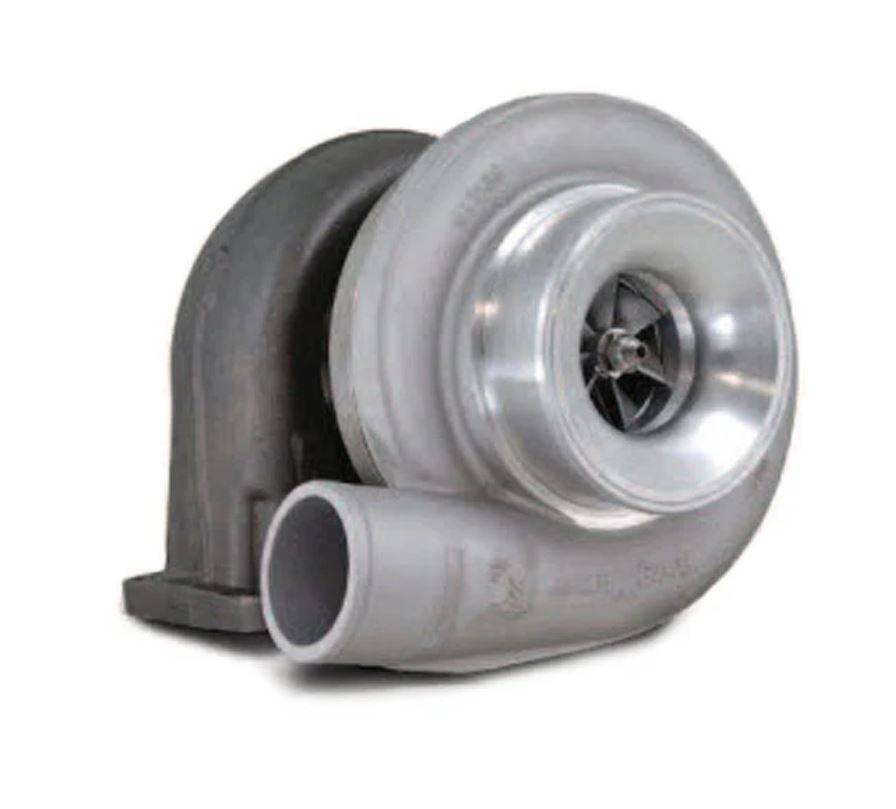

This BorgWarner S400SX4 Turbo has an A/R of 1.32, T4 inlet flange, twin scroll housing, 80 mm compressor inducer, 88 mm exducer, and an 96 mm turbine wheel. This is a complete turbo, ready to bolt on to any application with a horsepower range of 750-1250 HP.

S400SX4 Turbocharger

  • 80mm/3.16'' Compressor Inducer Dia.
  • 110mm/4.32'' Compressor Wheel O.D.
  • 88mm/3.47'' Turbine Exducer Dia.
  • 96mm/3.77'' Turbine Wheel O.D.
  • 1.32 Turbine A/R
  • T4 Twin Flow Turbine Inlet
    Straight Compressor Outlet
  • BorgWarner #177287

Details

  • SHM-BWS480SX4-80
  • SHM-BWS480SX4-80
  • BorgWarner
  • 3-4 Day Lead time for Shipment
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 55.0 lbs.
  • W16.0000” x H16.0000” x L16.0000”
  • $10.00
  • This item ships in its own box.
