Ford 5.0L Coyote Stainless Steel Header Flange Kit

Stainless Headers Mfg. header flange kits come with the stubs formed and welded in to make custom header fabrication easier.

This set fits all Gen I and Gen II Ford Coyote Heads, and early Gen III Heads. Late Gen III and all Gen IV Coyote Heads have separate bolt patterns, use our flange kit #3575a for that assembly instead

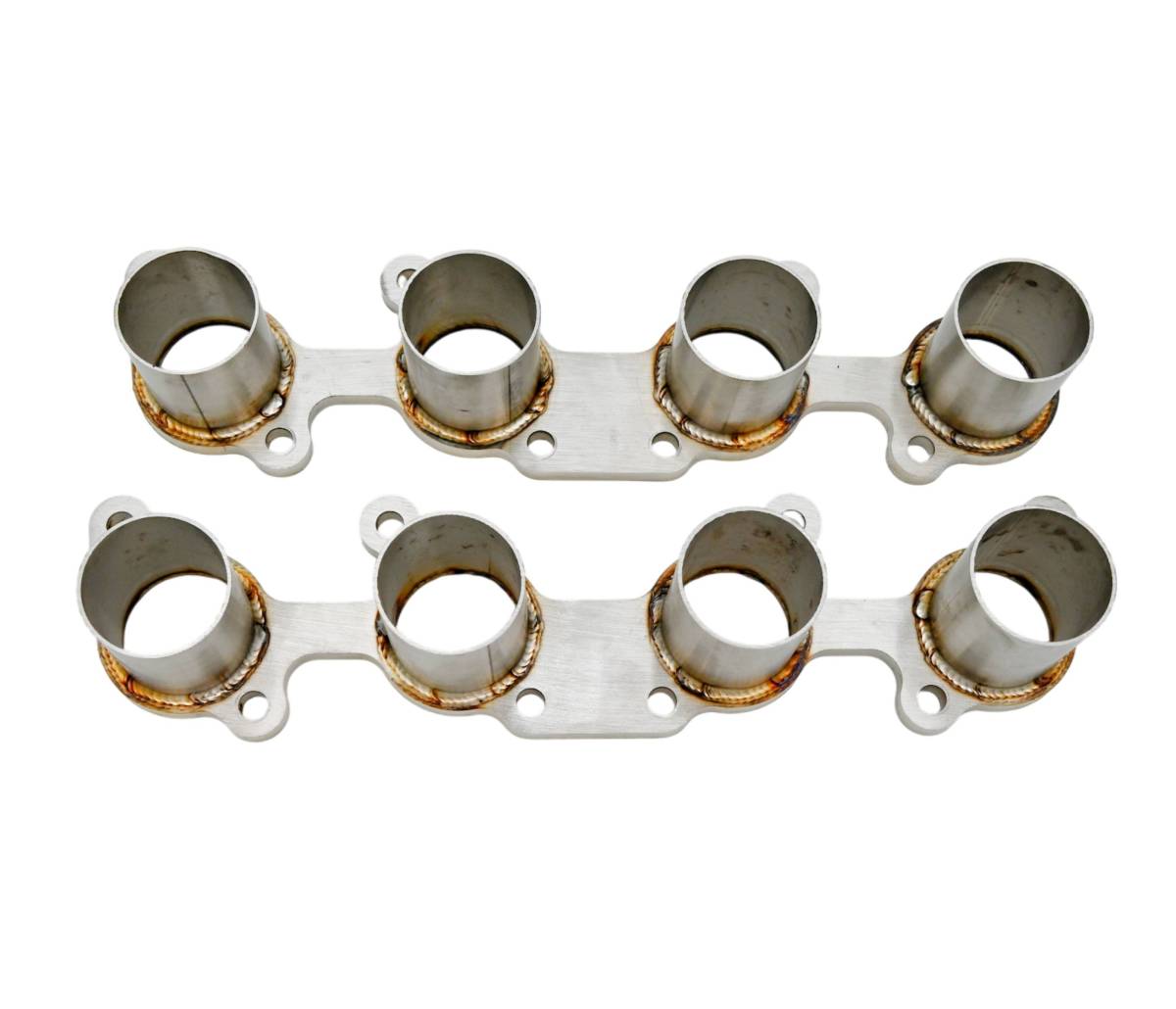

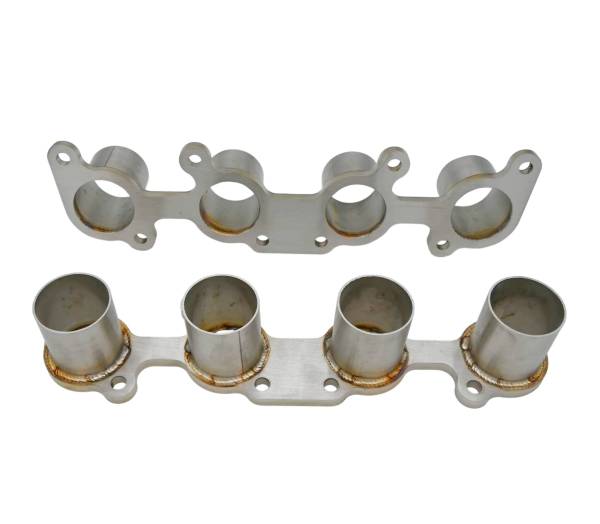

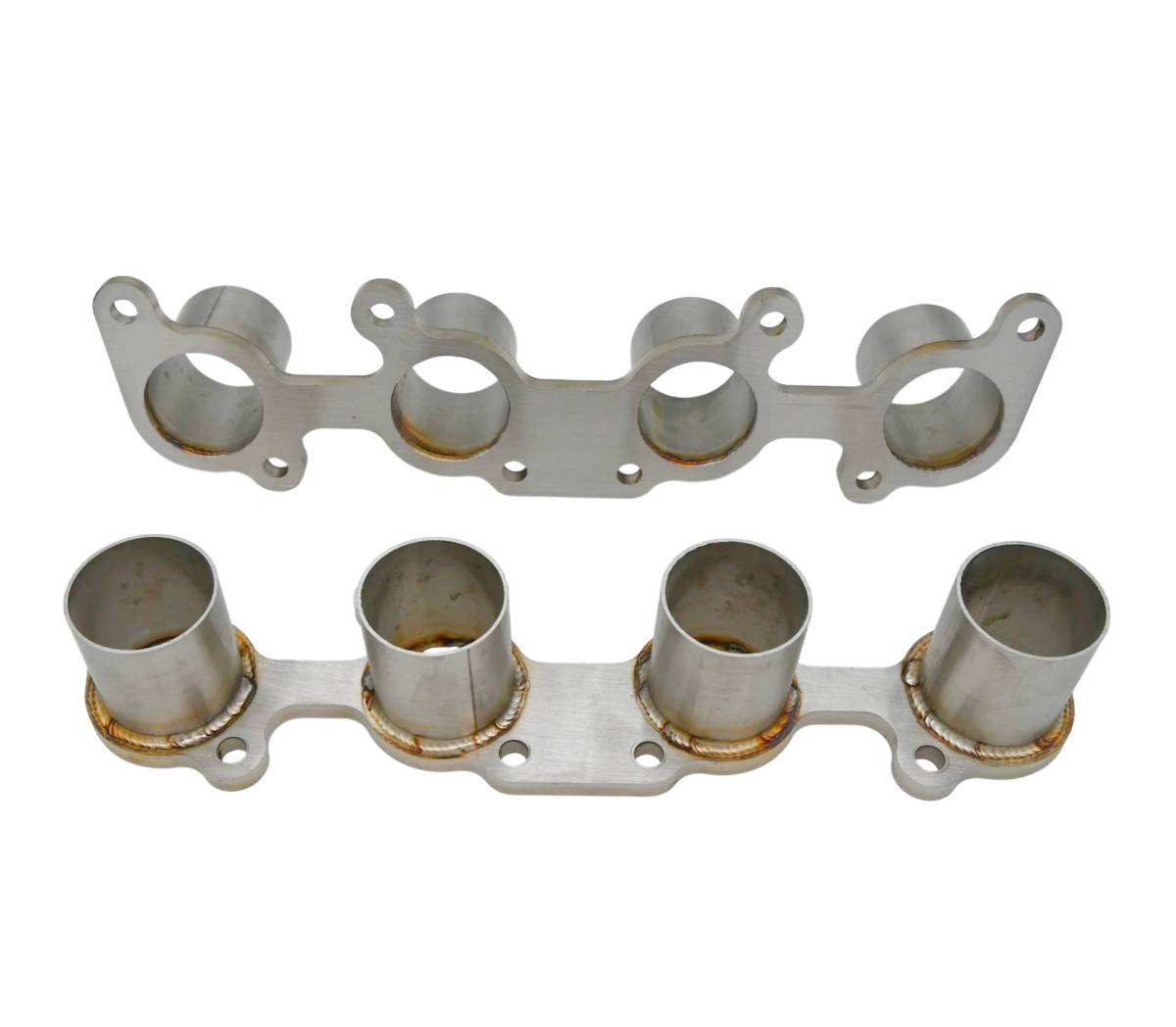

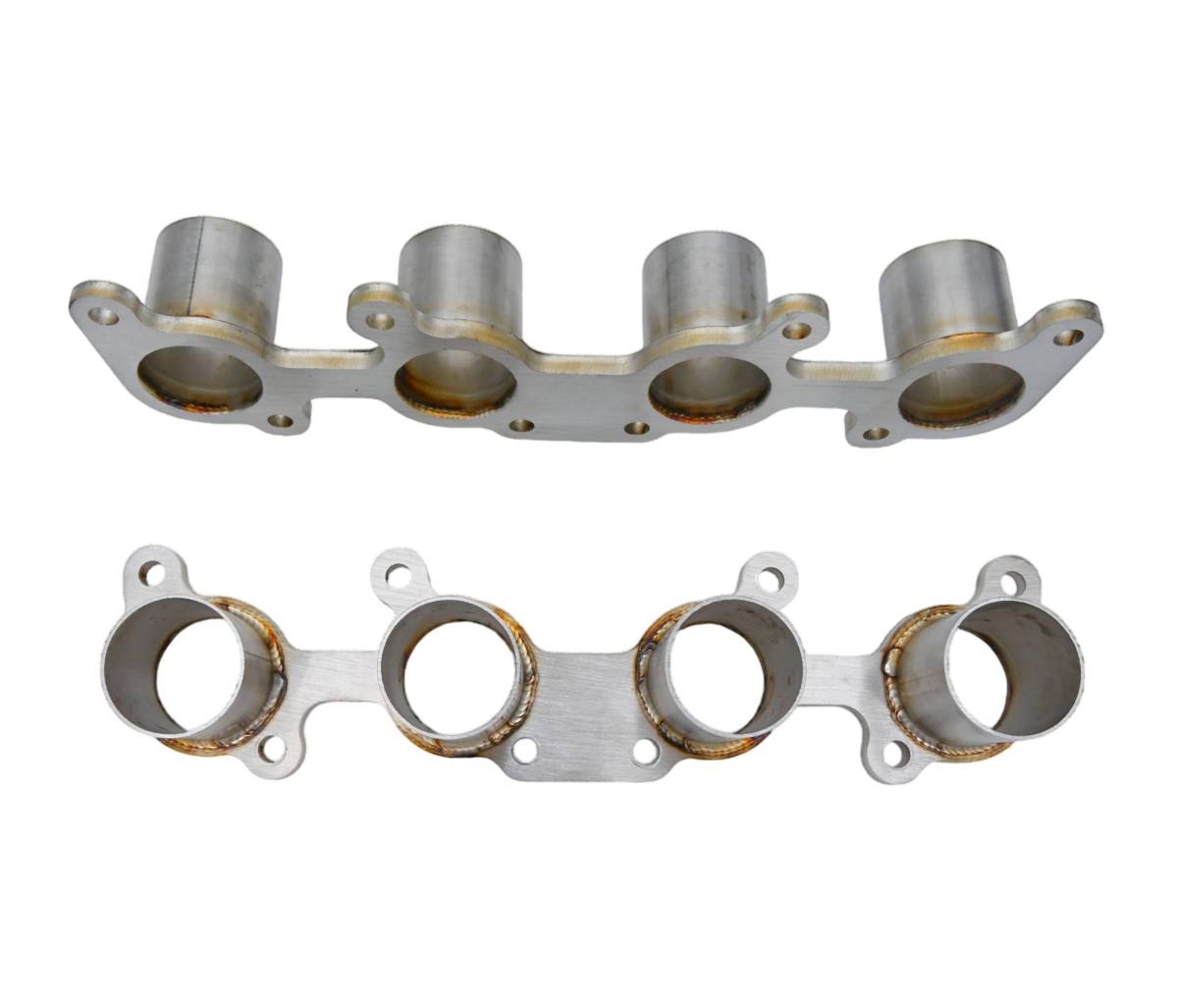

Each Header Flange Kit comes with (2) 3/8" thick American Made 304 Stainless Steel flanges, and (8) stubs TIG welded and machine surfaced onto the flange.

Each flange has a 2" long stub welded on the mating surface and stitch welded on the exterior for bolt clearance. The flange is then surfaced for a superior gasket seal.

Made from an American made 304 stainless and purge tig welded, these flanges kits will get your header project off to a great start.

Port Size: 1 5/8", 1 3/4", 1 7/8", or 2" Available
