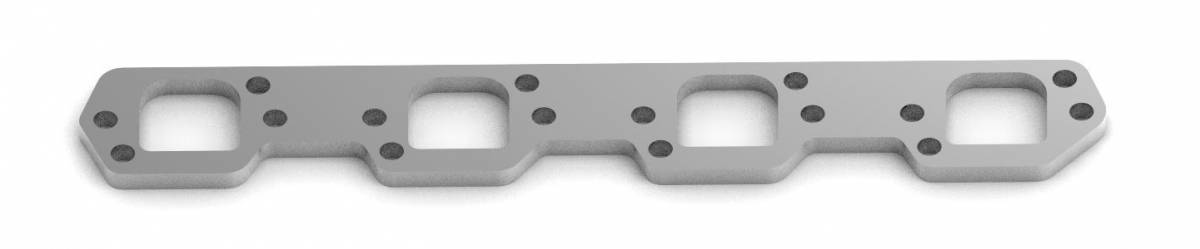

Small Block Ford- High Port Trickflow/Brodix Head Hunter Stainless Header Flange

Precision laser cut from 3/8" thick 304 Stainless Steel, our header flanges are manufactured in the U.S. and are machine surfaced. These header flanges are specifically made for SBF-W Hi-Port heads with a 2 3/4" horizontal bolt space pattern, or a type "R" diagonal bolt pattern. This second diagonal bolt pattern to allow for larger tube sizes and is 2 5/8" on center. These flanges will fit the aftermarket TrickFlow 225cc Twisted Wedge heads as well as Brodix Header Hunter 'F' 15 Degree heads.

Preformed Flange Stubs are 2"-3" in length, and are formed to perfectly fit the non-round port in the flange. Stubs drastically reduce overall build time and increase builder's efficiency.

We carry over 400 different header flange designs, so if you don't see the flange you're looking for, talk with one our tech reps about custom header flange cutting.

Flanges sold separately.
