Customer Gallery » Pro Mod Big Block Headers

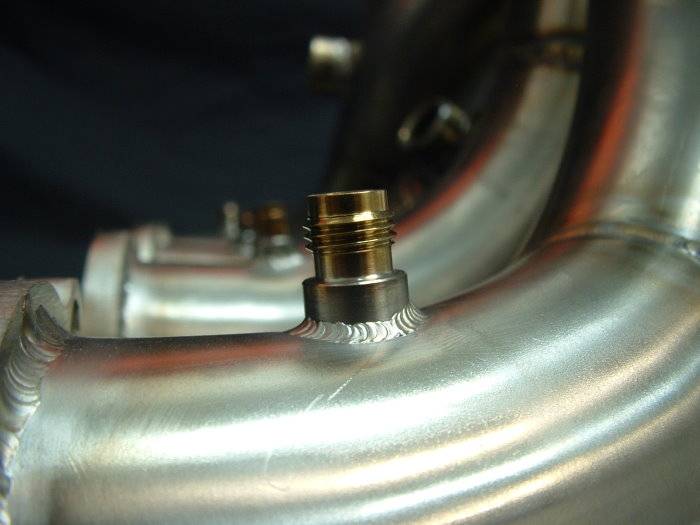

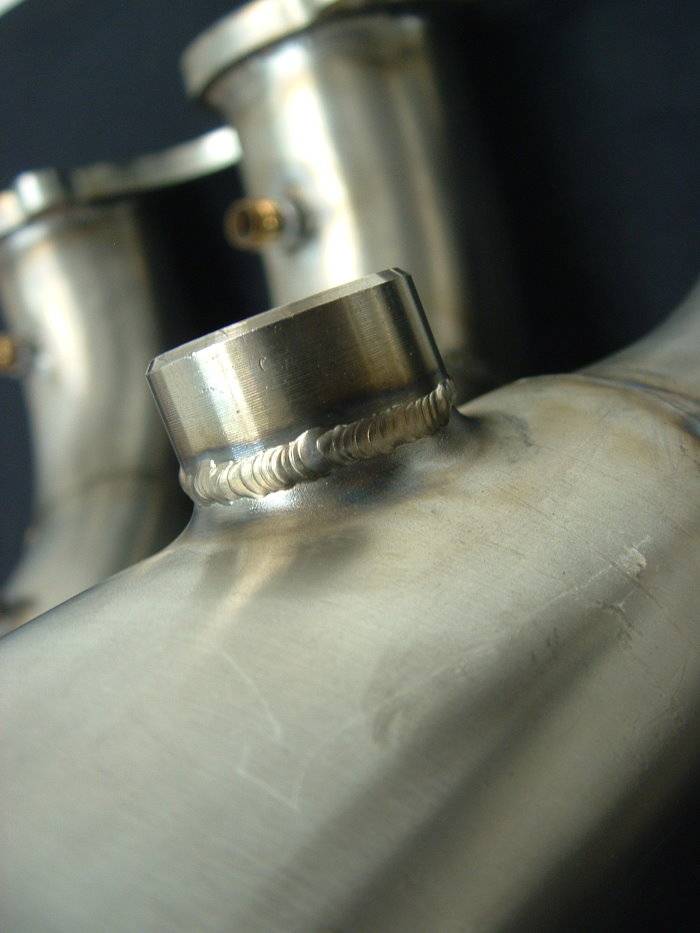

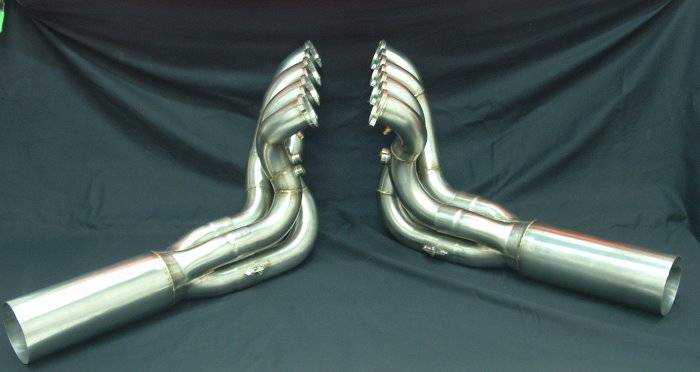

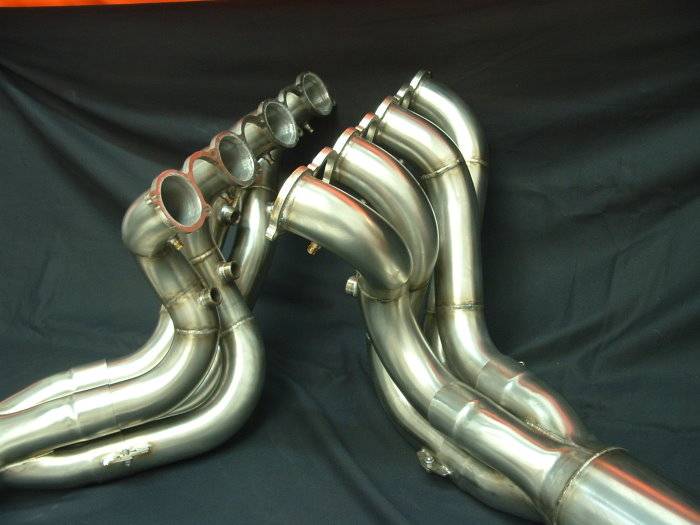

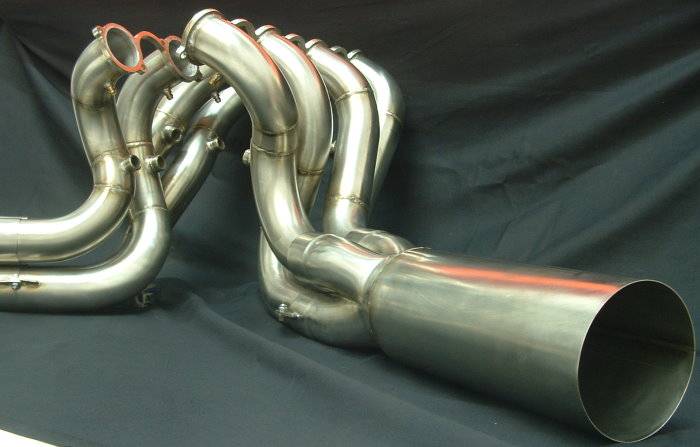

The collectors were left extra long for the customer to angle cut to his exact requirements for the side exit configuration. Notice the extruded part of this 2 1/2" tube where it comes up to meet the O2 bung. This type of design helps reduces cracking by giving the bung to primary tube a smooth transitional radius. These particular Pro Mod headers used a Racepak set of EGT bungs This set of headers was built for a Pro Mod big block Chevy with 5.3 bore spacing. Fabricated with 2 1/2" .049 321 stainless primary tubes and a 5" diameter secondary merge collector.
