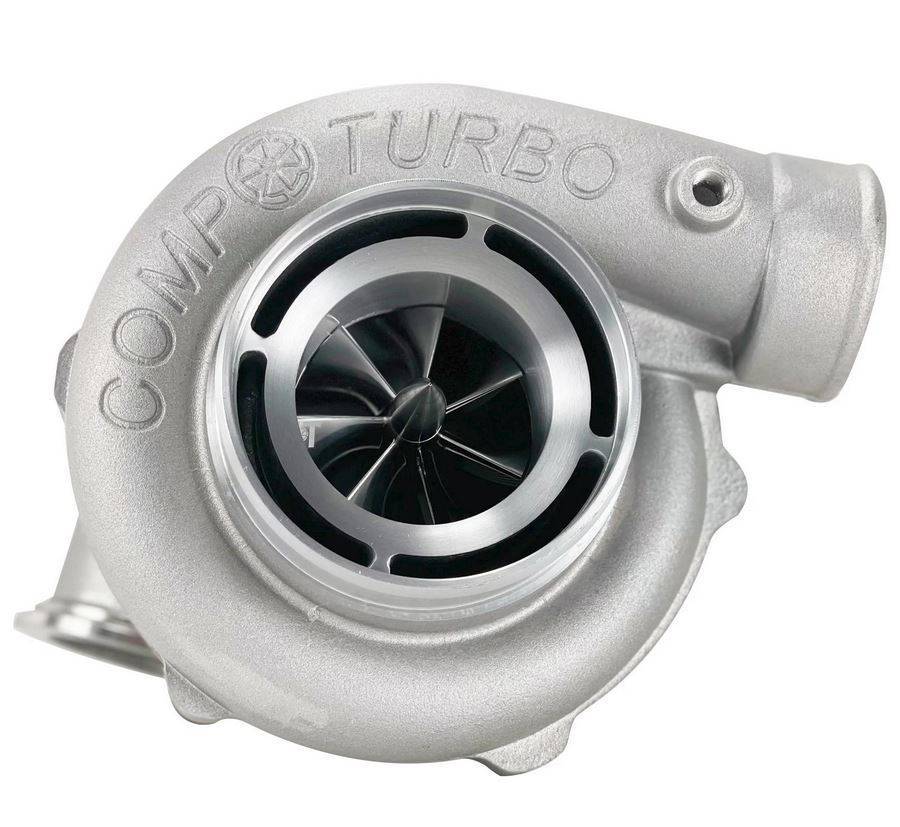

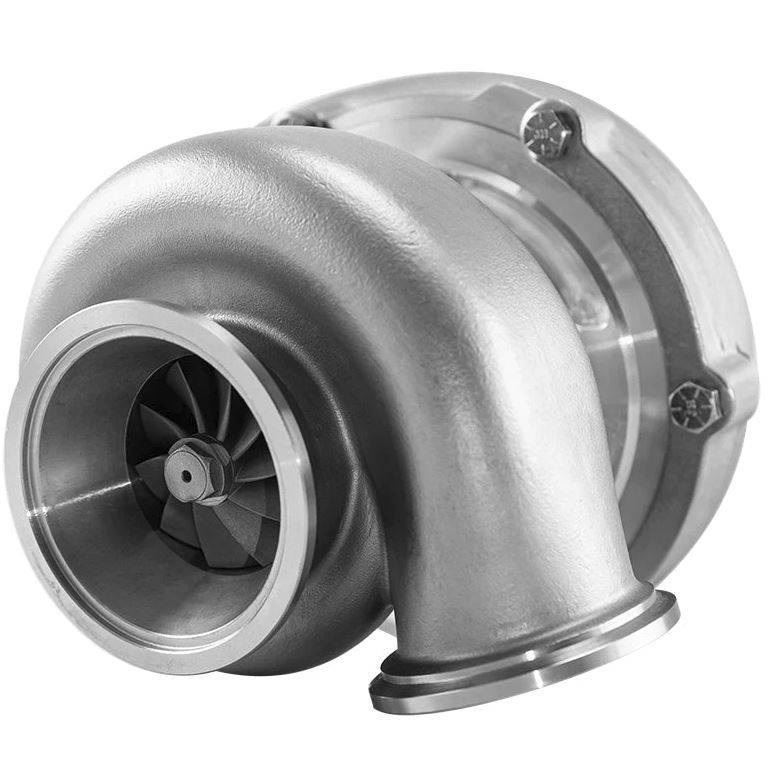

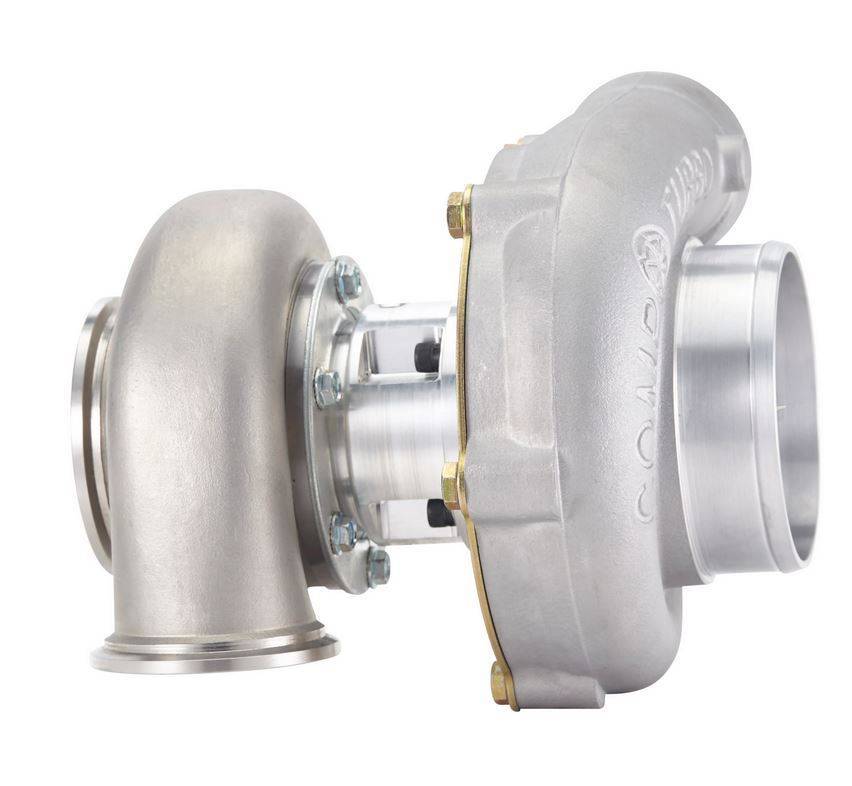

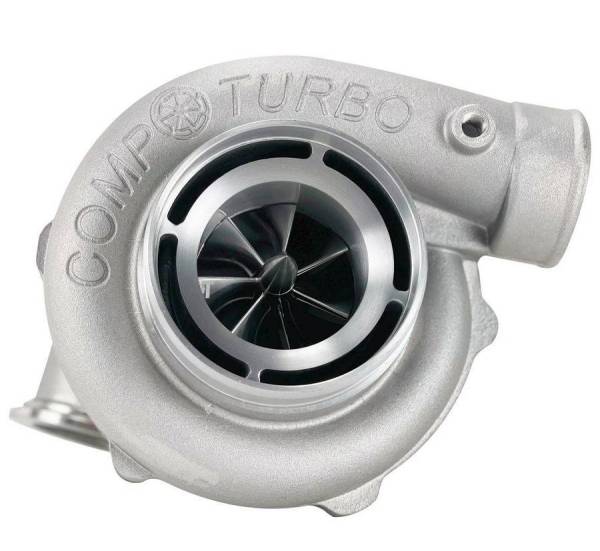

CTR4002H-6875 Oil Lubricated 2.0 Turbocharger (1150 HP)

SHM-CTR4002H-3BB
CTR4002H-6875 Oil Lubricated 2.0 Turbocharger (1150 HP)
Availability: All CompTurbo Turbochargers are made-to-order. The standard lead time is 3-5 weeks for any given combination. ALL COMPTURBO SALES ARE FINAL. NO REFUNDS, NO RETURNS, NO EXCHANGES PER MANUFACTURER POLICY.
Pricing: $1,619.95

Qty:
Free GROUND Shipping

Description

As we know, the journal bearing has long been the strength of a turbocharger and is still currently used within most turbochargers. However, a ball bearing cartridge is the latest in turbocharger bearing technology providing momentous performance enhancements and at Comp Turbo, is being taken to a new level still! Comp Turbo's innovative design and technology has reset that standard for quality, performance, and value! High performance applications require a turbocharger that accelerates fast to build boost pressure as rapidly as possible, allowing the engine to develop high torque at low engine speed and produce very high-power output at maximum engine speed. Enter Comp Turbo's patented Triplex Ceramic Turbochargers! Comp Turbo ball bearing turbochargers feature a patented triplex ball bearing design boasting a 99% mechanical efficiency! Resulting in a faster transient response over the industry standard dual ball bearing system due to minimized friction losses. Dramatically improving response times and maximizing power output! Our patented Triplex Ceramic bearing system is housed within a billet aluminum cartridge making our turbochargers an average of 5 to 12 pounds lighter than others! Our complete line of turbochargers is proudly made in the USA and feature our latest R-Line technology! Consisting of the CTR 7/14 veined billet slim hub extended tip compressor wheel and high efficiency CTR slim hub lightweight high flow turbine wheel, our most advanced rotor technology yet!

Features

-Titanium Bullet Nose
-Fully Rebuildable/Upgradeable
-Anti-Surge Compressor Housing
-CTR Compressor and Turbine Wheel
-Triplex Ceramic Bearing System

CTR Compressor Wheel Technology

The CTR-line of turbochargers feature a compressor wheel that is 7-14 vaned and embody the latest in compressor design technology. They feature a minimum diameter hub to maximize intake airflow and an extended tip design for increased efficiency at higher pressure ratios. The R-line design features, including maximum inducer diameters, produce higher boost pressures at high engine speeds and allow increases in engine HP output of up to 15%. The R-line of advanced design compressor wheels is now available on our complete line of CT turbochargers.

CTR High Flow Turbine Technology

The CTR Turbine wheels are 25% lower inertia leading to faster rotor acceleration. The slim hub and thin blade design make this wheel unique while the design feature maximizes the flow capacity, increasing it by 30% more than the prior GT style Turbine wheel. The Comp Turbo CTR high flow turbine wheels have minimal leaving velocity due to a longer surface blade length, thus leaving losses are minimized. Which leads to higher turbine efficiency and greater flow range than available turbine wheels in the industry. CTR turbine wheels are designed where high exhaust flow capability is required and have minimal leaving gas velocity that increases turbine efficiency.

Turbochargers are built to order and takes 3 to 5 weeks to deliver.

How to Service Your Triplex Ceramic Oil-Less and Air-Cooled Turbocharger

Details

  • SHM-CTR4002H-3BB
  • SHM-CTR4002H-3BB
  • CompTurbo Technologies
  • All CompTurbo Turbochargers are made-to-order. The standard lead time is 3-5 weeks for any given combination. ALL COMPTURBO SALES ARE FINAL. NO REFUNDS, NO RETURNS, NO EXCHANGES PER MANUFACTURER POLICY.
  • New

Shipping Information

  • Item Requires Shipping
  • 24.0 lbs.
  • W15.0000” x H15.0000” x L15.0000”
  • Free GROUND Shipping
  • This item ships in its own box.
