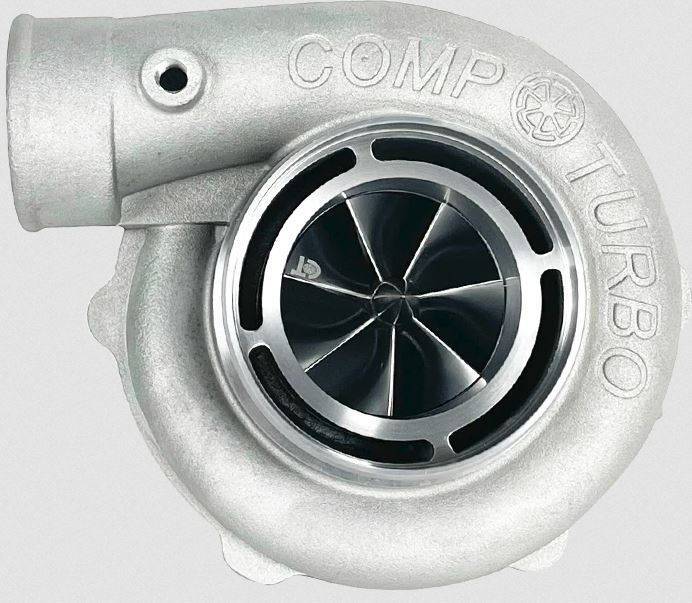

CTR4102H-7275 Reverse Rotation Air-Cooled 1.0 Turbocharger (1175 HP)
Lubrication is essential for turbochargers which rotate at extremely high speeds. The use of engine oil to lubricate turbocharger bearing systems has long been the standard, but not without its limitations and inconveniences. Oil lubricated systems offer limited mounting options where oil must be gravity fed back into the engine unless incorporating expensive and complicated scavenging systems. Oil lubricated systems are also susceptible to contaminants from engine wear and are susceptible to leaking and smoking. These factors served as motivation to remove the use of engine oil from turbocharger bearing systems, thereby eliminating the problems associated. Comp Turbo's innovative design and technology led to the development and introduction of the world's first production oil-less turbocharger! The patented CTR Oil-Less Turbochargers employ a version of the Triplex Ceramic triple ball bearing system where bearings are lubricated by a proprietary high-quality non-channeling grease. The bearing housing of the Air-Cooled model incorporates an internal air passage from behind the compressor wheel for cooling in place of a water jacket. Without the need for oil or water lines, and a Zerk fitting for easy servicing, the CTR Air-Cooled Triplex Ceramic Turbochargers are the ultimate choice for low, mid, or remote mount combinations. Comp Turbo ball bearing turbochargers feature a patented triple ball bearing design boasting a 99% mechanical efficiency! Resulting in a faster transient response over the industry standard dual ball bearing system due to minimized friction losses. Dramatically improving response times and maximizing power output! Our patented Triplex Ceramic bearing system is housed within a billet aluminum housing making our turbochargers an average of 5 to 12 pounds lighter than others! Our complete line of turbochargers is proudly made in the USA and feature our latest R-Line technology! Consisting of the CTR 7/14 veined billet slim hub extended tip compressor wheel and CTR slim hub lightweight turbine wheel, our most advanced rotor technology yet!
-Titanium Bullet Nose
-Anti-Surge Compressor Housing
-CTR Compressor and Turbine Wheel
-Eliminates the need for oil and water lines
-Can be mounted in any orientation
CTR Compressor Wheel Technology
The CTR-line of turbochargers feature a compressor wheel that is 7-14 vaned and embody the latest in compressor design technology. They feature a minimum diameter hub to maximize intake airflow and an extended tip design for increased efficiency at higher pressure ratios. The R-line design features, including maximum inducer diameters, produce higher boost pressures at high engine speeds and allow increases in engine HP output of up to 15%. The R-line of advanced design compressor wheels is now available on our complete line of CT turbochargers.
CTR High Flow Turbine Technology
The CTR Turbine wheels are 25% lower inertia leading to faster rotor acceleration. The slim hub and thin blade design make this wheel unique while the design feature maximizes the flow capacity, increasing it by 30% more than the prior GT style Turbine wheel. The Comp Turbo CTR high flow turbine wheels have minimal leaving velocity due to a longer surface blade length, thus leaving losses are minimized. Which leads to higher turbine efficiency and greater flow range than available turbine wheels in the industry. CTR turbine wheels are designed where high exhaust flow capability is required and have minimal leaving gas velocity that increases turbine efficiency.
Turbochargers are built to order and takes 3 to 5 weeks to deliver.
How to Service Your Triplex Ceramic Oil-Less and Air-Cooled Turbocharger
- CompTurbo Technologies
- All CompTurbo Turbochargers are made-to-order. The standard lead time is 3-5 weeks for any given combination. ALL COMPTURBO SALES ARE FINAL. NO REFUNDS, NO RETURNS, NO EXCHANGES PER MANUFACTURER POLICY.
- Item Requires Shipping
- 24.0 lbs.
- W15.0000” x H15.0000” x L15.0000”
- Free GROUND Shipping
- This item ships in its own box.
