BorgWarner S400SX Turbo Charger- 75mm #176806

SHM-BWS400SX-75-1.1
BorgWarner S400SX Turbo Charger- 75mm #176806
Please Call for Availability
1-800-290-3920
Availability: Current ETA from manufacturer: 42-48 business days

Description

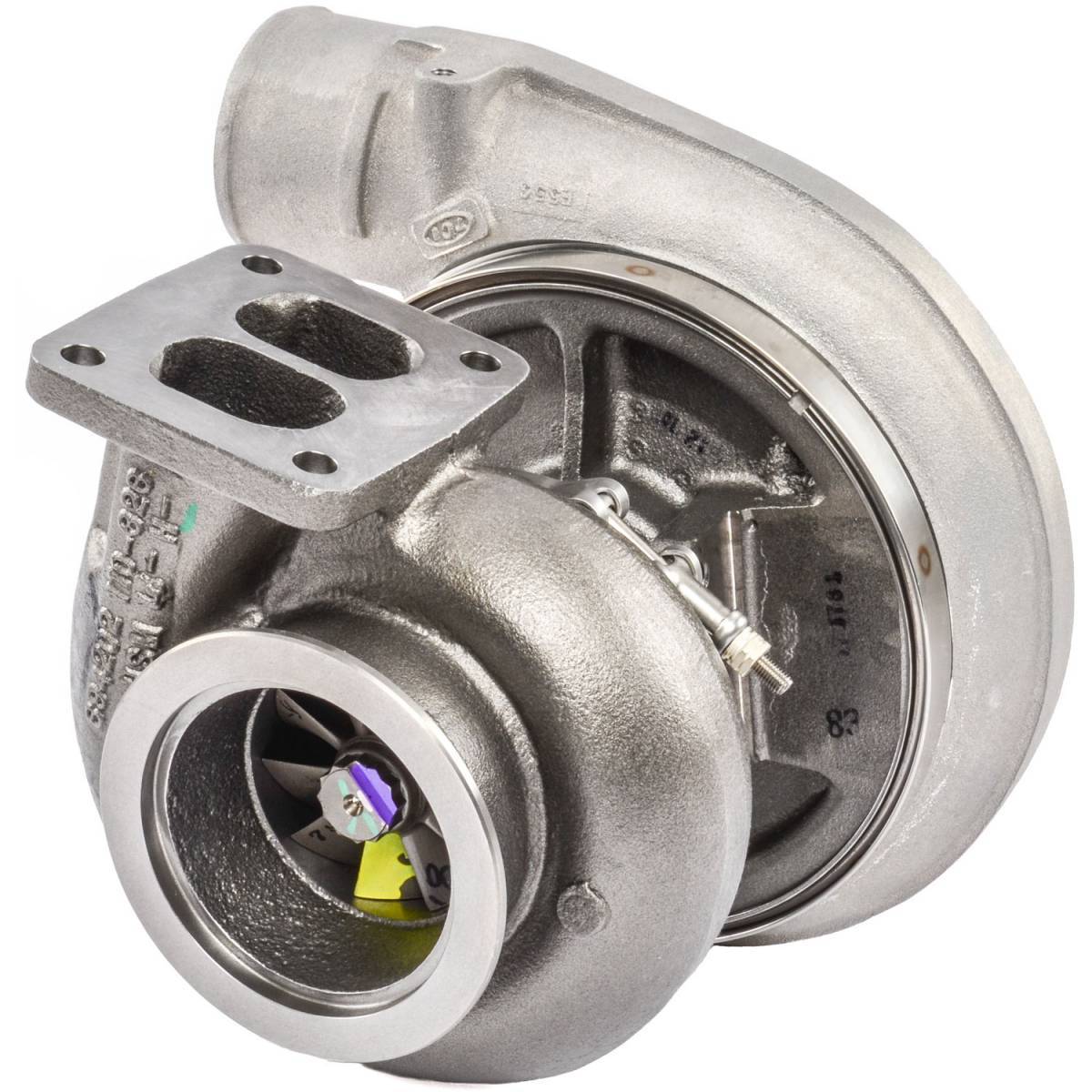

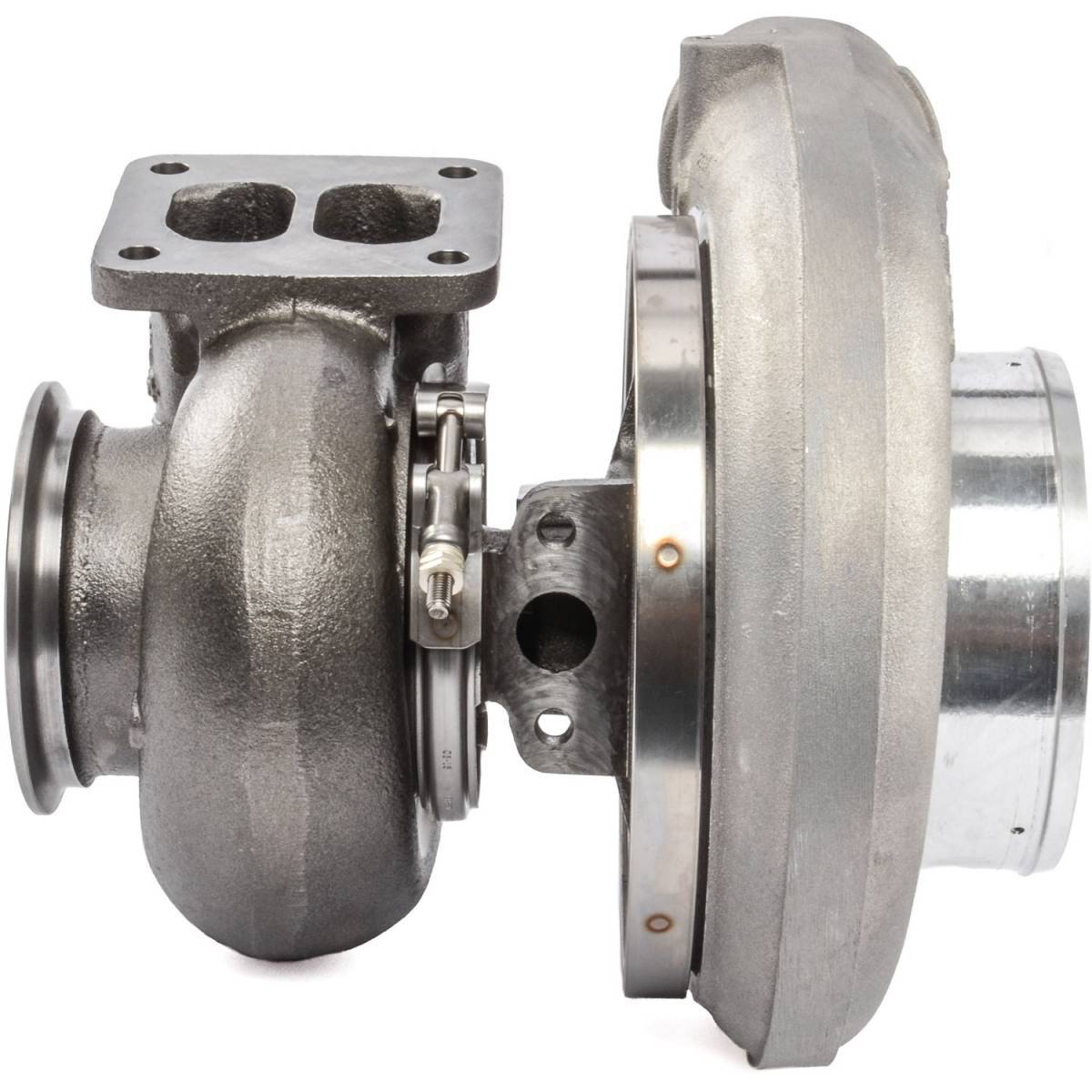

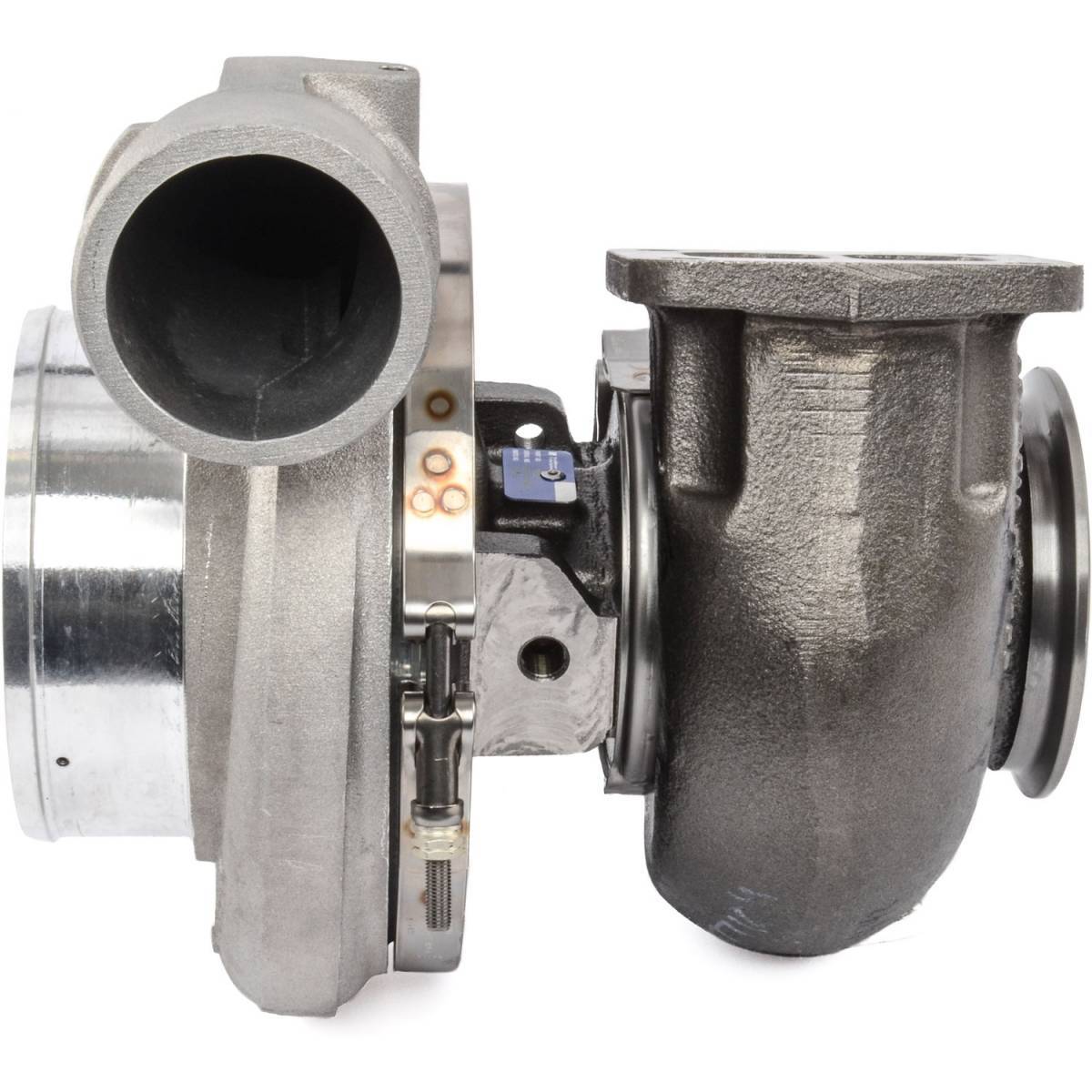

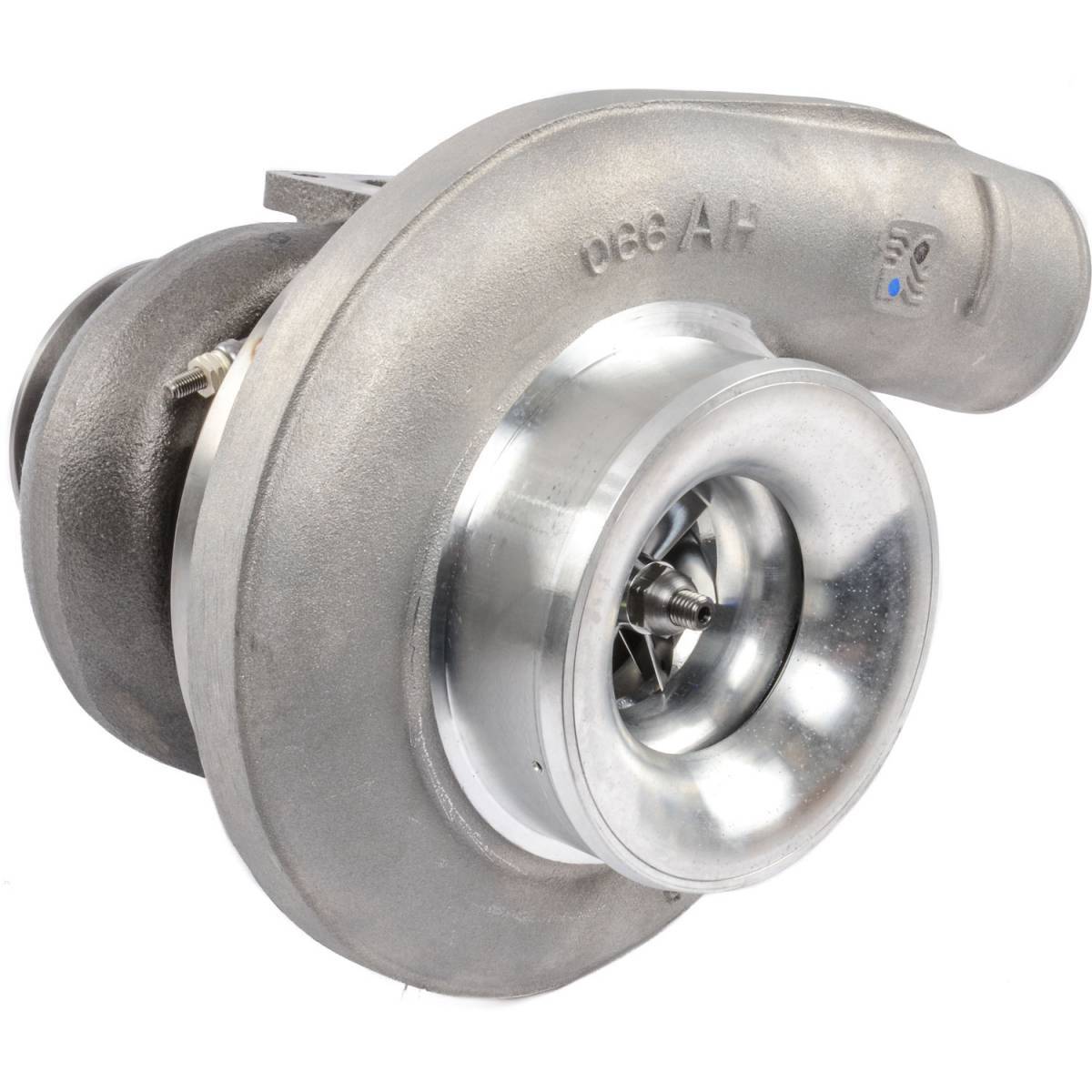

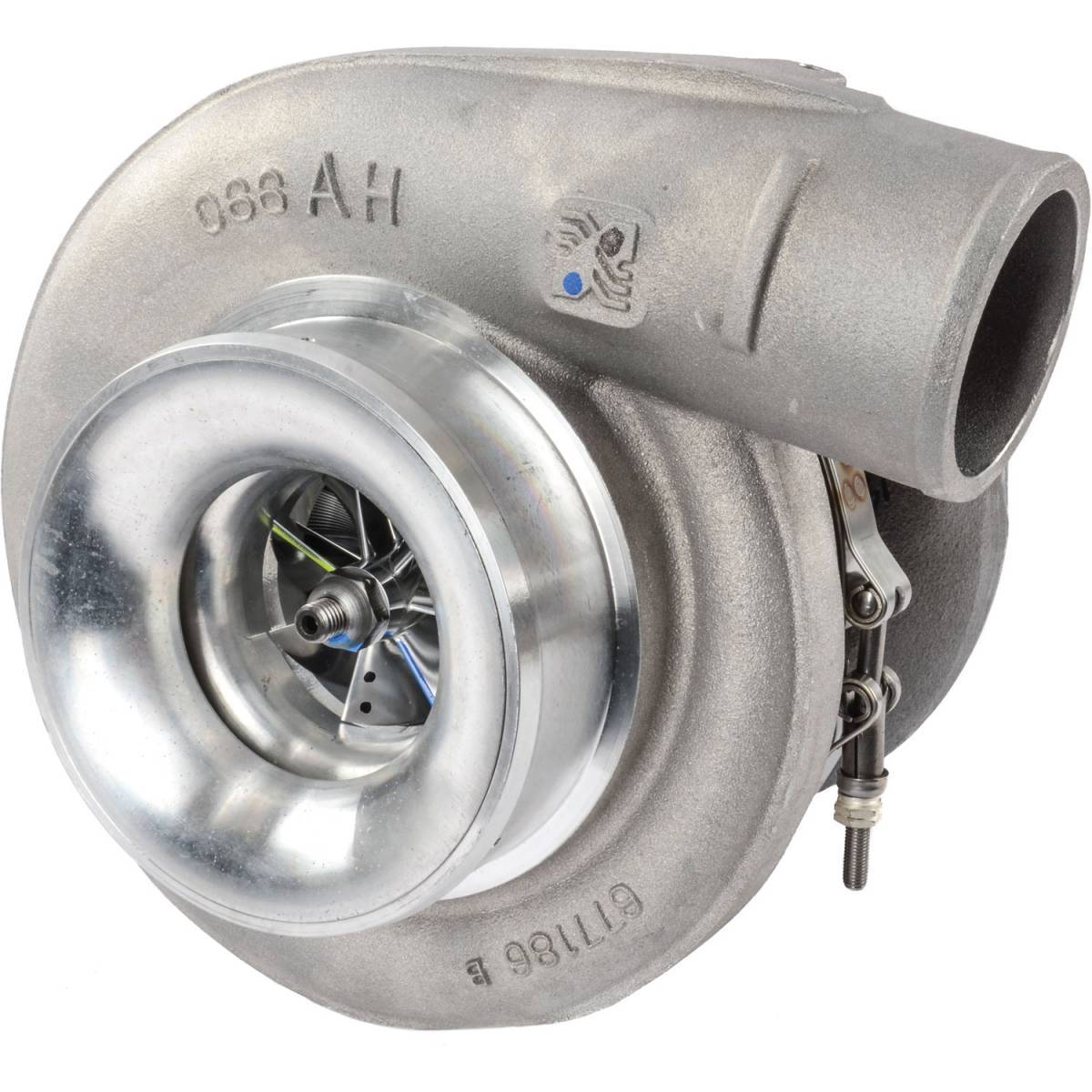

This BorgWarner S400SX4 Turbo has an A/R of 1.10, T4 inlet flange, twin scroll housing, 75 mm compressor inducer, 74 mm exducer, and an 83 mm turbine wheel. This is a complete turbo, ready to bolt on to any application with a horsepower range of 500-1050 HP.

S400SX4 Turbocharger

  • 75mm/2.94'' Compressor Inducer Dia.
  • 100mm/3.94'' Compressor Wheel O.D.
  • 74mm/2.92' Turbine Exducer Dia.
  • 83mm/3.29'' Turbine Wheel O.D.
  • 1.10 Turbine A/R
  • T4 Twin Flow Turbine Inlet
    Straight Compressor Outlet
  • BorgWarner #176806

Details

  • SHM-BWS400SX-75-1.1
  • SHM-BWS400SX-75-1.1
  • BorgWarner
  • Current ETA from manufacturer: 42-48 business days
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 55.0 lbs.
  • W16.0000” x H16.0000” x L16.0000”
  • Free GROUND Shipping
  • This item ships in its own box.
