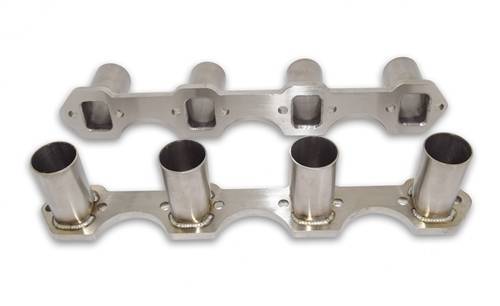

Small Block Ford 289/302/351W Stainless Steel Header Flange Kit

SHM-3530-FK-304
Ford 289/302/351W Stainless Steel Header Flange Kit
Free GROUND Shipping
Pricing: $349.95

Customize Your Item

1 5/8" Primary Stubs
 * required
Qty:

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Description

Pro Series Stainless Header Flange Kits- Ford 302/351W

Stainless Headers Mfg. header flange kits come with the stubs formed and welded in to make custom header fabrication easier.

Each Header Flange Kit comes with (2) 3/8" thick American Made 304 Stainless Steel flanges, and (8) stubs TIG welded and machine surfaced onto the flange.

Each flange has a 2" long stub welded on the mating surface and stitch welded on the exterior for bolt clearance. The flange is then surfaced for a superior gasket seal.

Made from an American made 304 stainless and purge tig welded, these flanges kits will get your header project off to a great start.

Port Size: 1.625"/1.755"

Stub Sizes Available: 1 5/8" or 1 3/4" Available

Specify tube diameter when ordering. (We carry over 300 flange patterns that we configure as a set with stubs) Depending on the tube size combination, the tube stub may go through the flange port or sit on top of the flange-call for details.
