Suzuki Sidekick 1.8L/2.0L/2.3L Turbo Header- Front Exit

Suzuki, Sidekick

SHM-MTH-6275F
Built for the Suzuki G-Series engines (1.8L/2.0L/2.3L) This turbo header is available in Raw, V-Band, T25, or T3 turbo configurations.
Limited Supply
Availability: Current lead times are 4-5 weeks
Pricing: $799.95

Customize Your Item

- Ceramic Coating -
 * required
- Add Wastegate Mount? -
 * required
Qty:
Free GROUND Shipping

Description

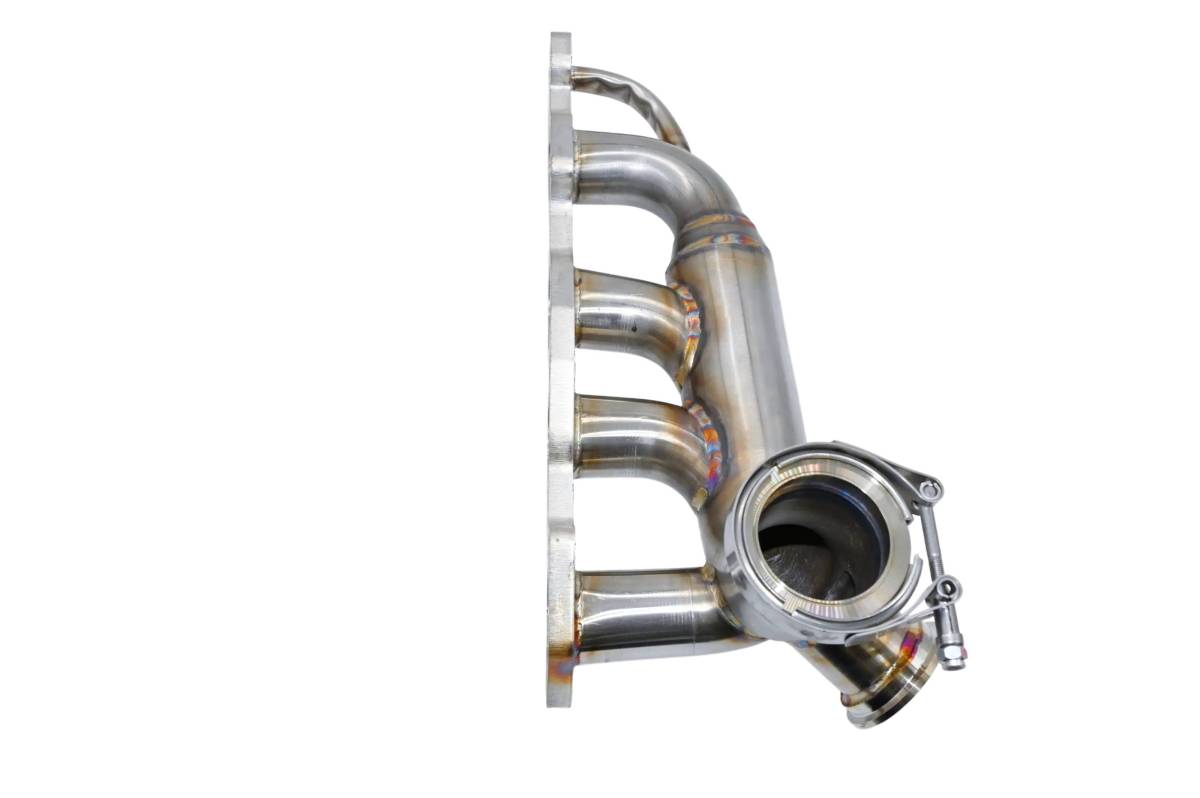

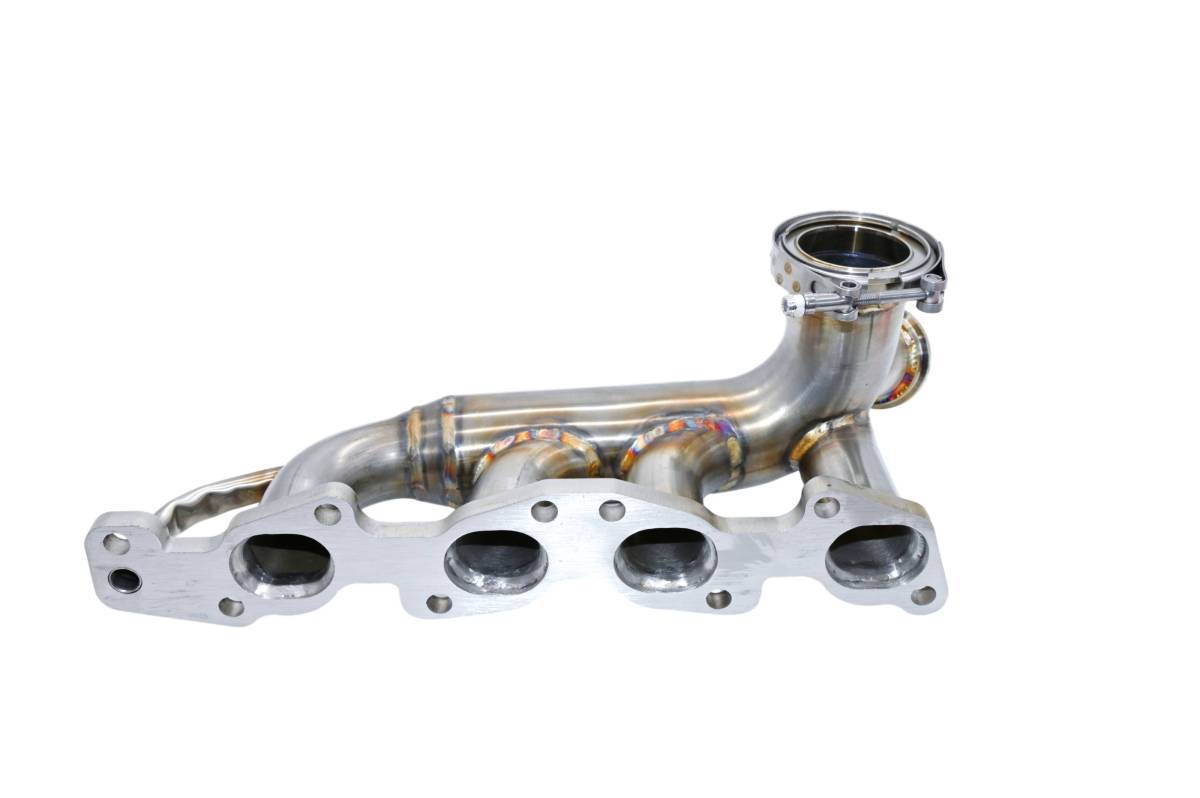

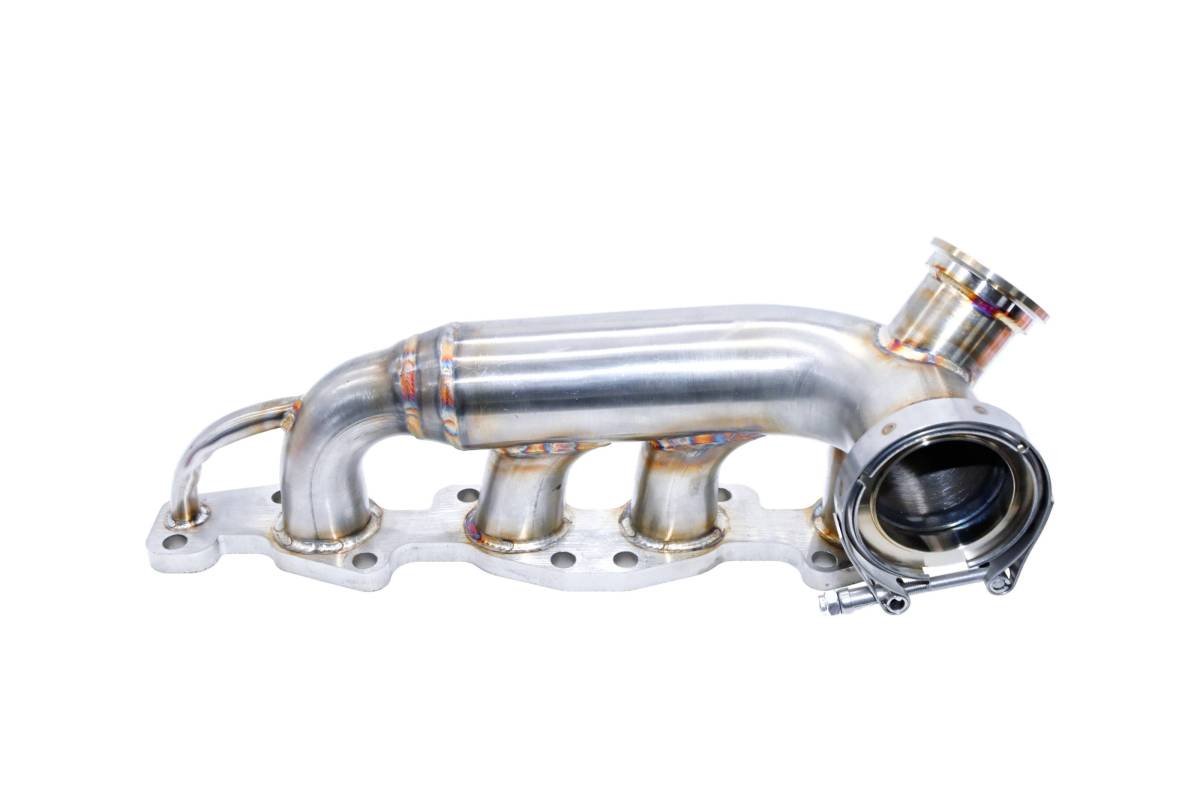

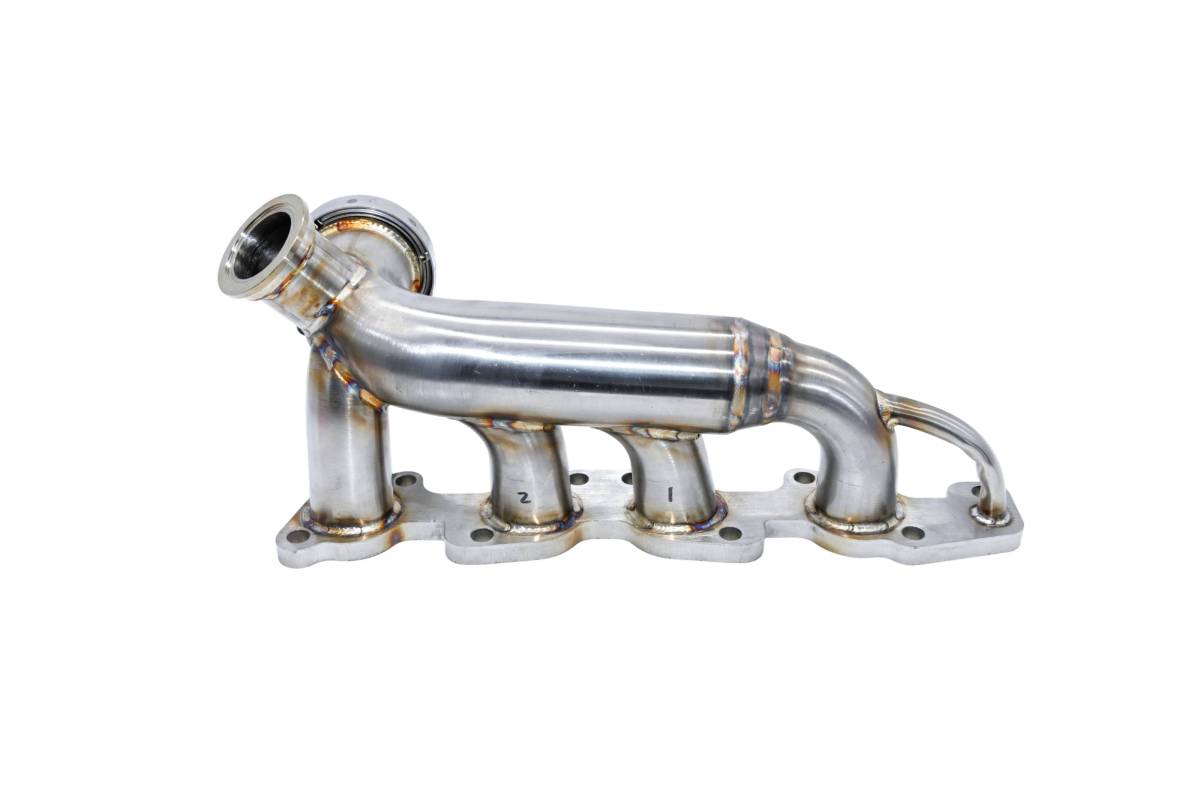

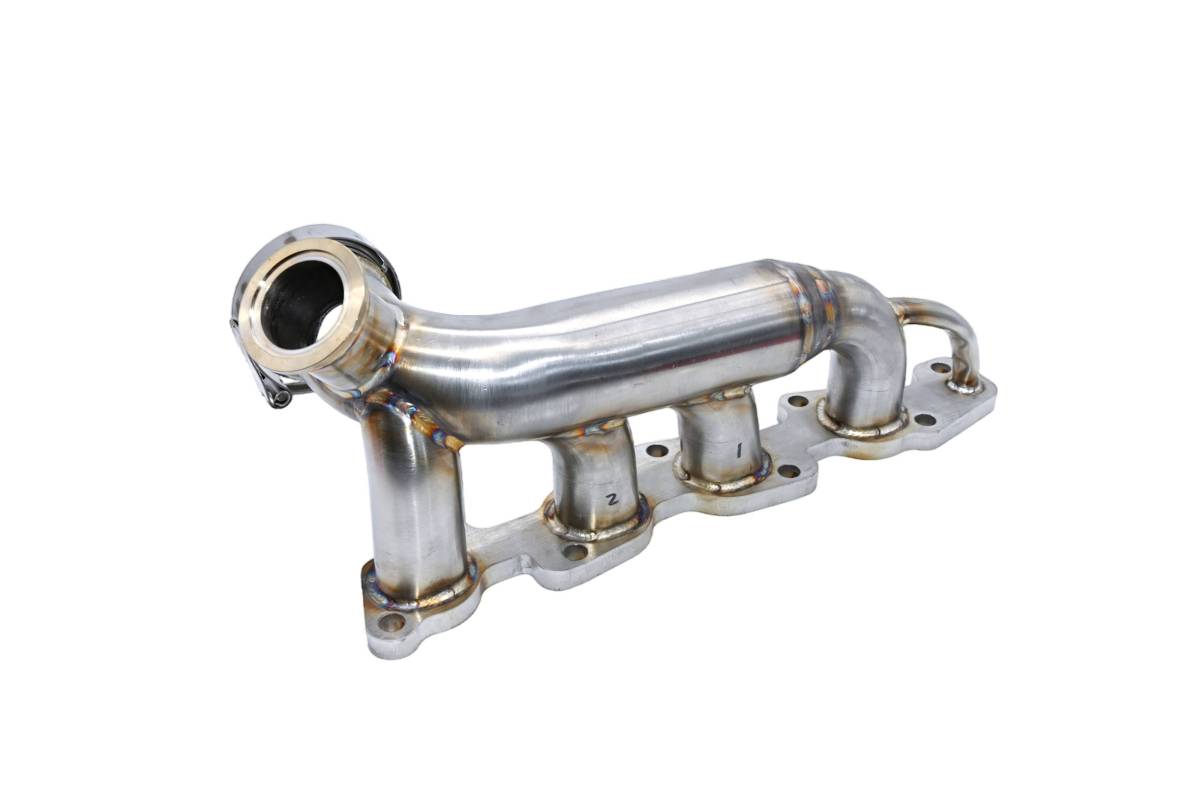

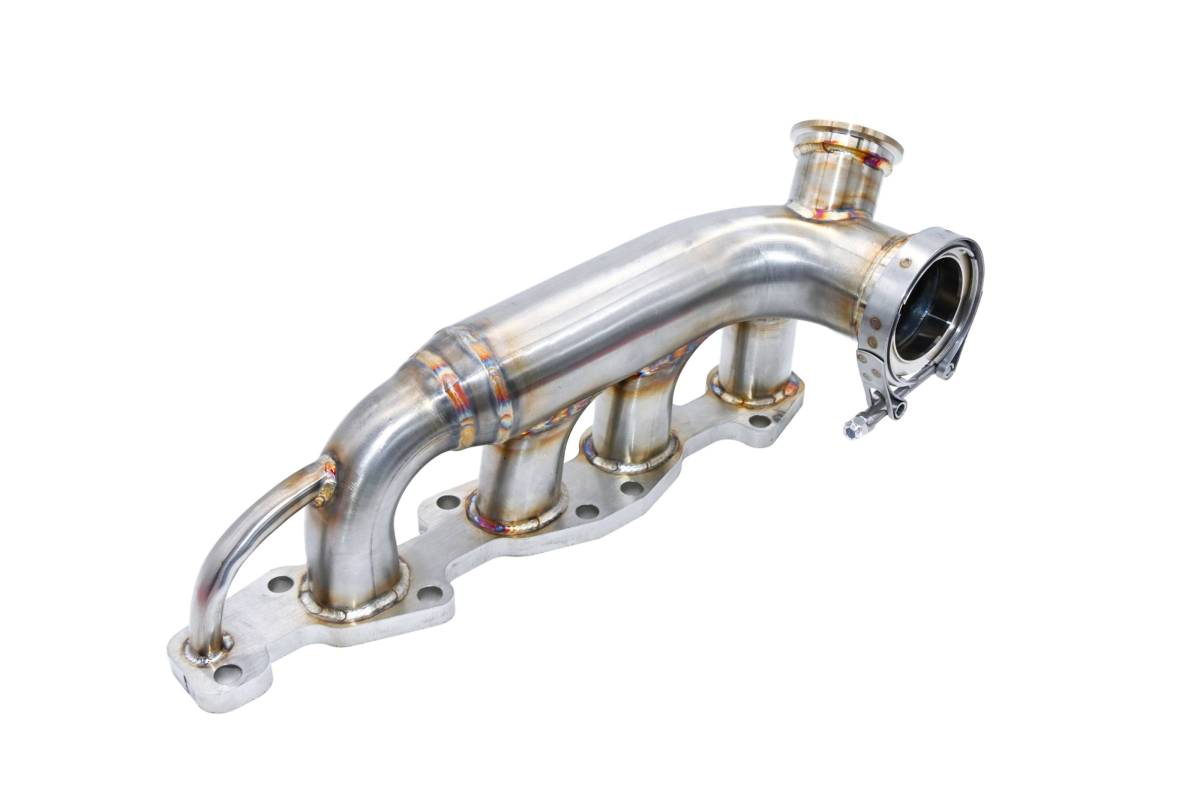

Suzuki Sidekick 1.8L/2.0L/2.3L Turbo Header- Front Exit

Yeah. You read that right. We really did it. This is a beautiful, affordable, over-built, American-Made turbo header made specifically for the Suzuki Sidekick with a G-series Engine (1.8L/2.0L/2.3L) I-4. Hand-crafted from USA made 11ga 304 Stainless Steel tubing, these turbo headers are built to take a beating. These turbo headers were purpose built for one thing: to put some bite back in those Sidekicks!. Designed to fit the carbureted and EFI heads, these bolt-on turbo headers are the perfect solution to any turbo header packaging concerns. They fit all aftermarket heads, and most (if not all) factory & aftermarket intake manifolds. This heavy-duty tubular design is more than capable of handling the vibrations and heat from any turbo build.

Using 1 3/4" Primaries, 2 1/2" Manifold, and a single outlet (Tube end, v-band, T25, or T3 flange)

The beauty behind this design? The builder never has to touch a tig welder or strike an arc. Every component can be bolted and pieced together in a modular fashion, without every worrying about the strength or quality of the builder's welds and fabrication. The compact design also allows use of these modular turbo headers in small engine bays. The heavy wall construction of these manifolds means less heat-absorption by the tubing, which means less energy produced by the engine's combustion process is wasted as heat, and is instead conserved as energy and velocity going to your turbos. This also leads to cooler engine bay temperatures, which can also improve intake air temps, increasing the density of oxygen in the air, leading to further power gains.

We recommend builders start off with the base manifolds prior to adding in the additional elbows to meet your turbo mount points.





**Turbo Headers are NOT returnable/refundable items. All sales are final. For further information, check the Returns/Shipping policy. Any questions or concerns, call the shop for further information.
Ceramic coated products are NOT returnable nor refundable items. All sales are final**



Not seeing what you need? Not a problem- We can custom build turbo headers or elbows to fit your turbo header needs.



Details

Categories

Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W19.0000” x H13.0000” x L13.0000”
  • Free GROUND Shipping
