Stainless Headers product slideshow

Merge Collectors True Merge Collectors

Our custom merge collectors are hand made to your exacting specifications. The turbo merge collectors are available with double slip joints. Engineered to obtain the high flow and velocity only available in a true merge collector, these units are available in mild steel, 304 stainless steel and 321 stainless steel. Every unit is purge tig welded  and incorporates a transition spike that is  internally blended, making the transition from the primary tube to the collector as smooth as possible. This smooth transition maintains exhaust velocity, improving volumetric efficiency.



           Merge Collectors                      Turbo Merge Collectors





          Tri Y Merge Collectors                Collector Cutaway







Collectors For Any Application

Building Your Own Headers?



See Our Custom Header Fabrication Video Series.





Merge Collector Configurations



  • Standard Straight Exit
  • Turbo Flanged
  • ā€œVā€ Band Flanged
  • Turbo Double Slip
  • Megaphone Exit
  • Evacuation Tube and Many More

We Also Offer Formed Collectors

 Call for pricing on welded collector turbo flanges, megaphones, transitions or any special configurations.



321 Stainless Steel 4 Into 1

Base Merge Collectors

(.049) 18 Gauge

1 1/2" $268.00
1 5/8" $274.00
1 3/4" $289.00
1 7/8" $299.00
2" $294.00
2 1/8" $319.00
2 1/4" $329.00
2 3/8" $348.00
2 1/2" $369.00

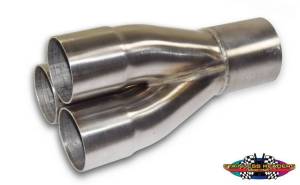

321 Stainless Steel 3 into 1

Base Merge Collectors

(.049) 18 Gauge

1 1/2" $229.00
1 5/8" $239.00
1 3/4" $239.00
1 7/8" $244.00
2" $245.00
2 1/8" $268.00
2 1/4" $274.00
2 3/8" $285.00
2 1/2" $299.00



321 Stainless Steel 2 Into 1

 Base Merge Collector

(.049) 18 Gauge

1 1/2" $104.00
1 5/8" $124.00
1 3/4" $143.00
1 7/8" $157.00
2" $159.00
2 1/8" $164.00
2 1/4" $178.00
2 3/8" $184.00
2 1/2" $194.00



304 Stainless Steel 4 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $199.00
1 5/8" $225.00
1 3/4" $225.00
1 7/8" $235.00
2" $228.00
2 1/8" $242.00
2 1/4" $259.00
2 3/8" $276.00
2 1/2" $283.00

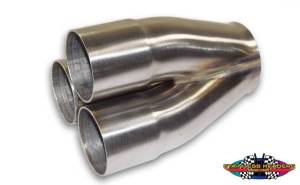

304 Stainless Steel 3 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $178.00
1 5/8" $187.00
1 3/4" $189.00
1 7/8" $198.00
2" $198.00
2 1/8" $215.00
2 1/4" $232.00
2 3/8" $239.00
2 1/2" $239.00



304 Stainless Steel 2 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $79.00
1 5/8" $84.00
1 3/4" $84.00
1 7/8" $89.00
2" $89.00
2 1/8" $99.00
2 1/4" $99.00
2 3/8" $108.00
2 1/2" $109.00

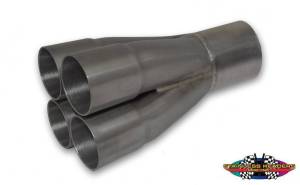

Mild Steel 4 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $189.00
1 5/8" $195.00
1 3/4" $199.00
1 7/8" $199.00
2" $205.00
2 1/8" $215.00
2 1/4" $225.00
2 3/8" $235.00
2 1/2" $245.00



Mild Steel 3 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $145.00
1 5/8" $149.00
1 3/4" $159.00
1 7/8" $159.00
2" $162.00
2 1/8" $189.00
2 1/4" $189.00
2 3/8" $199.00
2 1/2" $199.00





Mild Steel 2 Into 1

 Base Merge Collector

(.065) 16 Gauge

1 1/2" $74.00
1 5/8" $78.00
1 3/4" $79.00
1 7/8" $82.00
2" $84.00
2 1/8" $86.00
2 1/4" $89.00
2 3/8" $98.00
2 1/2" $98.00
