Chevy LS Twin Turbo Kit

SHM-CTK-LS
Available with BorgWarner or CompTurbo performance turbochargers
Availability: Current Lead Times are 2-3 Weeks
Pricing: $4,500.00

Customize Your Item

- Twin TurboCharger Selection -
 * required
- Turbosmart Wastegate Selection -
 * required
- Wastegate Anodize Color -
 * required
- -
 * required
- ARP Header Bolts -
 * required
Qty:

Description

Chevy LS1/6 Twin Turbo Kit


This universal twin turbo header kit has everything you'll need to assemble your own high-performance stainless turbo header. Every component is carefully selected for premium, reliable performance, wrapped into an affordable kit.

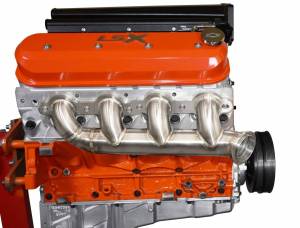

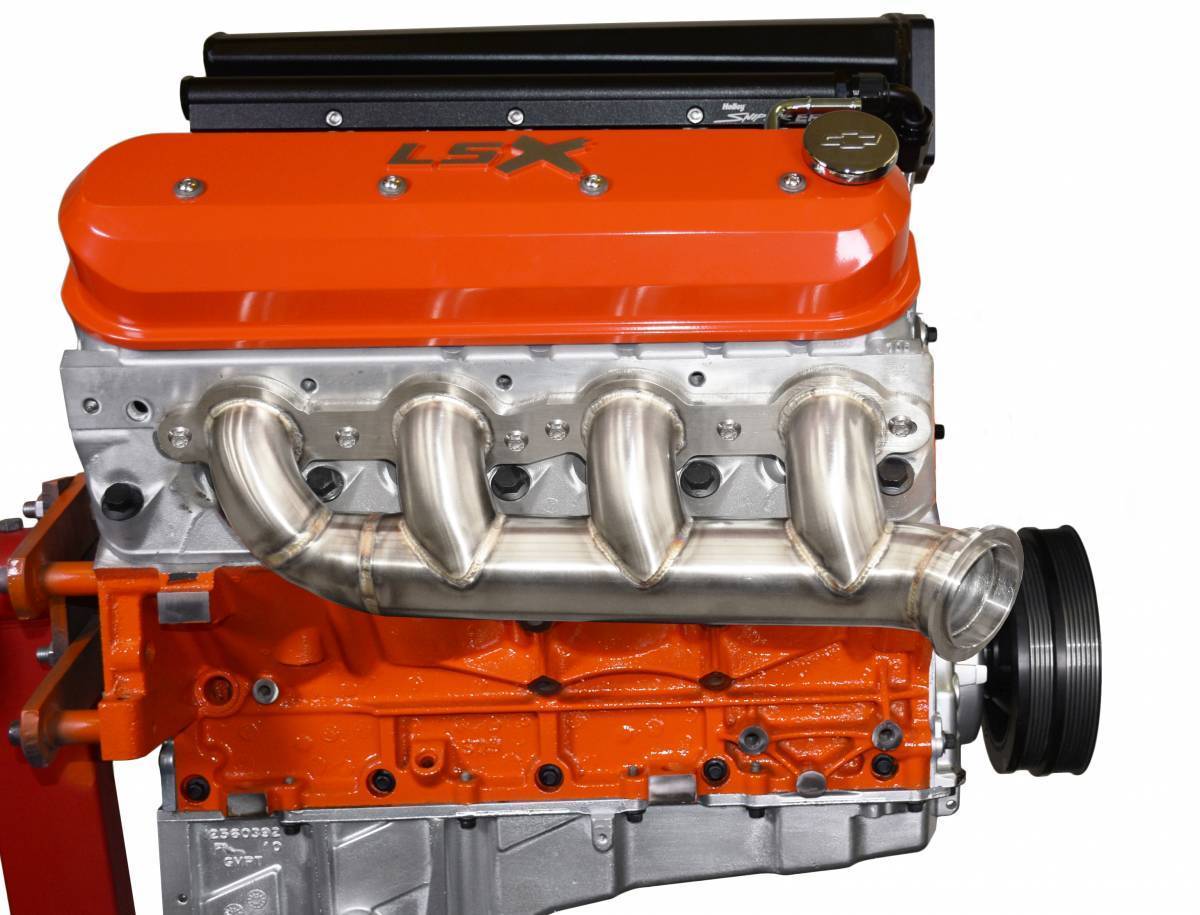

This Chevy LS twin turbo kit uses our proven turbo manifolds with 0.120" thick, 304SS tubular construction, and completely TIG welded. The log manifolds are designed specifically for all standard exhaust bolt pattern LS/LT cylinder heads. These bolt up to, and function great with, LSX/LS7 D-port heads as well.

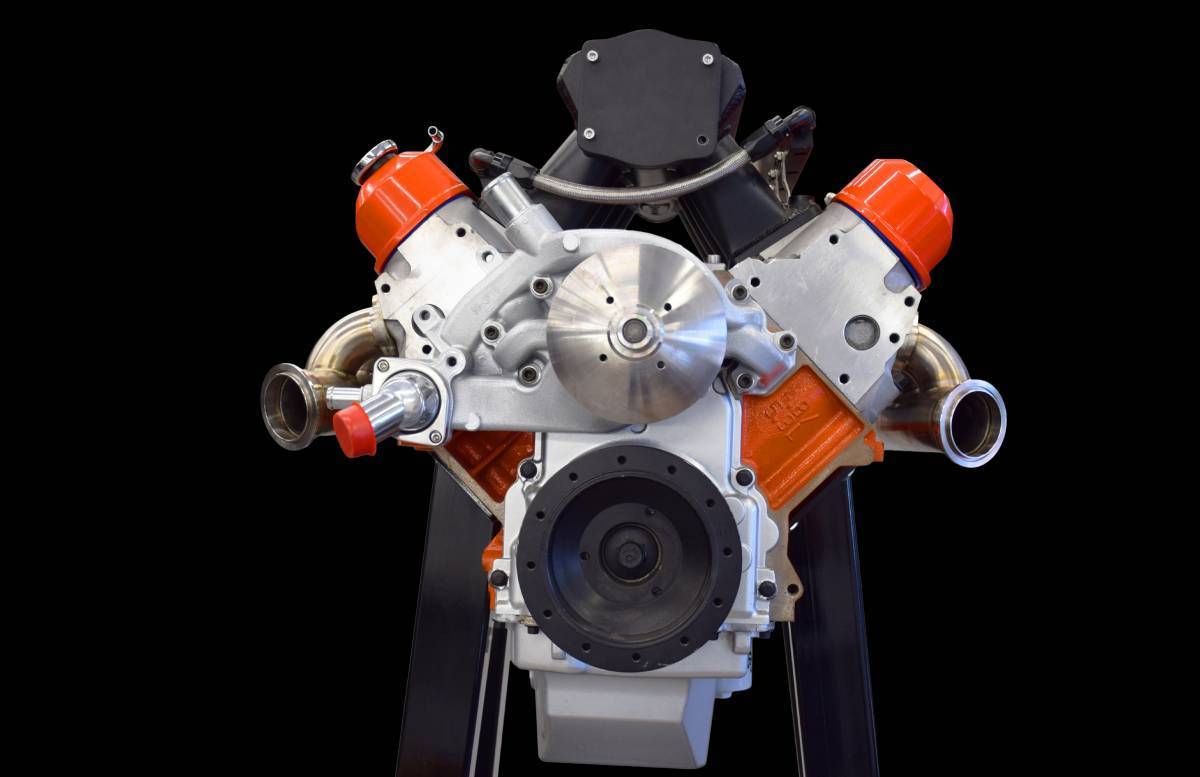

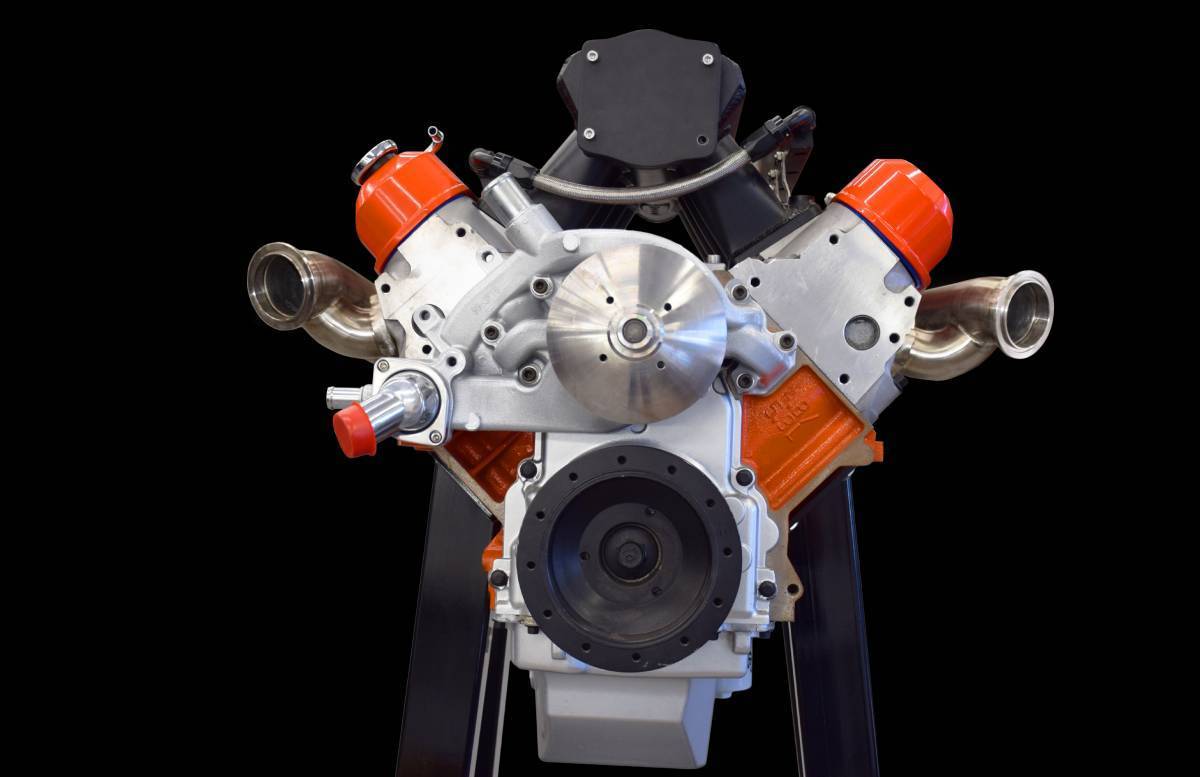

This LS turbo manifold includes the "kick-outs" on the vbands to avoid the stock water pump placement and accessory drives.

The flanges include slotted bolt holes, are 1/2" thick, and surfaced + straightened for optimum sealing surface to the cylinder head.

**Lead times on the turbo manifolds are currently 15-20 business days**

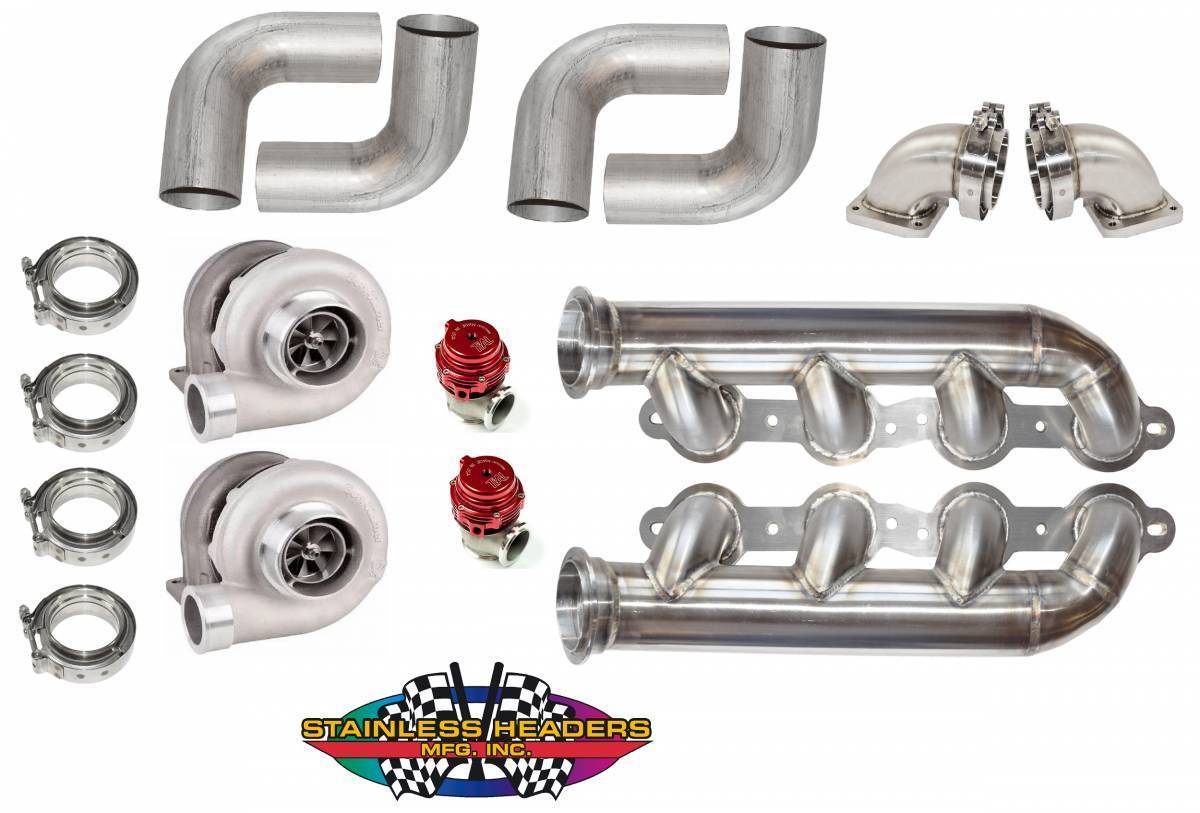

The kit will come with the following:

  • (2) American Made 304SS Turbo Log Manifolds

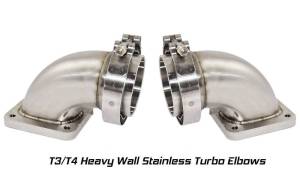

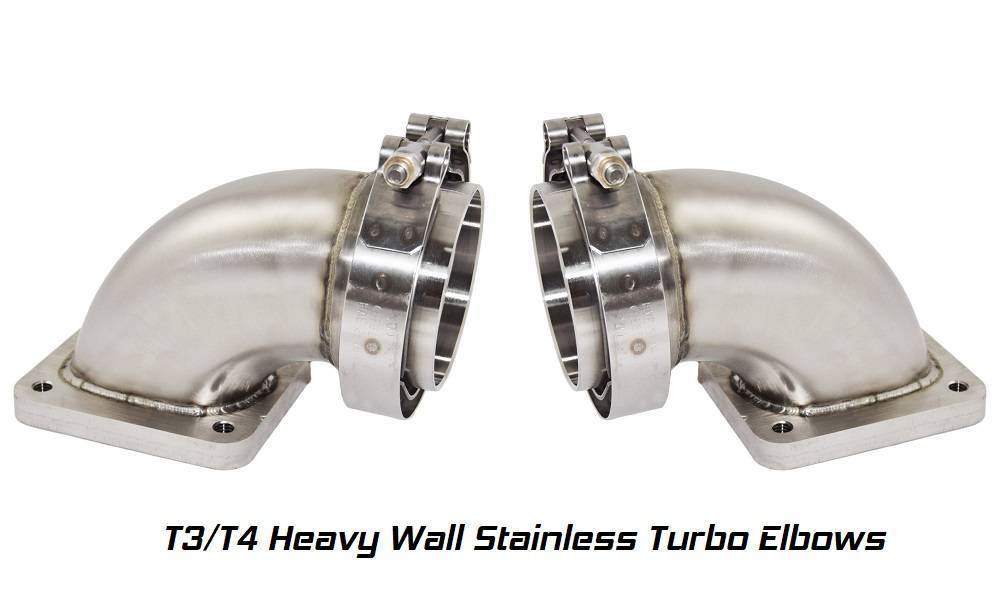

  • (2) American Made 304SS 90 Degree T3/T4/T6 Turbo elbows, also built from the same 0.120" thick 304SS tubing. Including wastegate tubes to fit the selected wastegates.
  • (2) Performance BorgWarner Turbochargers- Several options available
  • (2) Performance TiAL Wastegates- Several options available
  • (2) Turbo Downpipe flanges (Marmon or V-Band) & Downpipe stubs
  • (4) American Made 304SS 90 Degree Bends to fit the selected turbo downpipe size

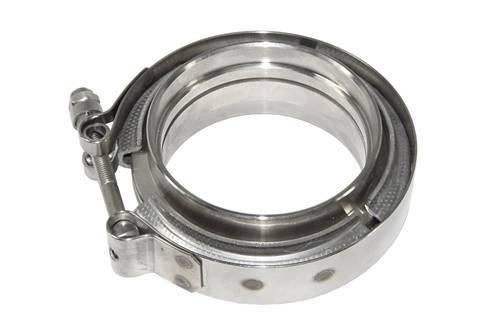

  • (4) American Made 304SS V-Bands to fit the downpipe size

Check out our selection of premium Mishimoto Intercoolers and TiAL Sport + Turbosmart BOV's to complete your custom turbo system.

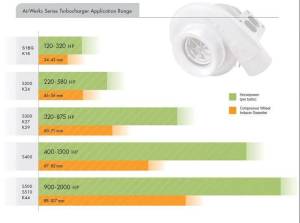

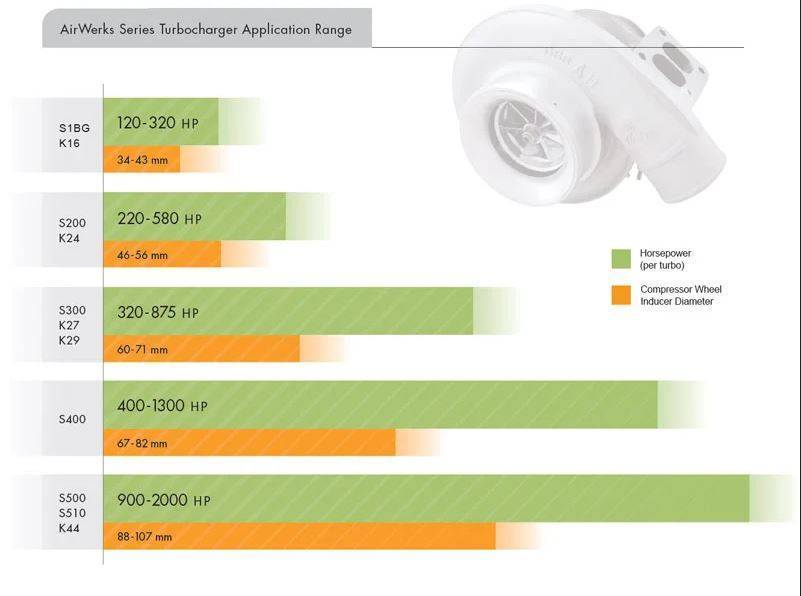

BorgWarner Turbo Options:

S300SX3 Turbocharger


  • 66mm / 2.60'' Compressor Inducer Dia.

  • 3.60'' Compressor Wheel O.D.

  • 73mm / 2.89'' Turbine Exducer Dia.

  • 80mm / 3.14'' Turbine Wheel O.D.

  • 0.91 Turbine A/R

  • T4 Twin Flow Turbine Inlet

  • Straight Compressor Outlet

  • 4" Air Inlet

  • 4.21" x 3/4 Marmon Flange Outlet

  • 3.5" or 4" Downpipe (Select)

  • BorgWarner #177275

S400SX3 Turbocharger


  • 71.08mm/2.80'' Compressor Inducer Dia.

  • 3.94'' Compressor Wheel O.D.

  • 74.29mm/2.92'' Turbine Exducer Dia.

  • 83.47mm/3.29'' Turbine Wheel O.D.

  • 1.10 Turbine A/R

  • T4 Twin Flow Turbine Inlet

  • Straight Compressor Outlet

  • 5" Air Inlet

  •

  • 5.75" Full Marmon Flange Outlet

  • 4" or 4.5" Downpipe (Select)
  • BorgWarner #179171



S400SX4 Turbocharger


  • 75mm / 2.94'' Compressor Inducer Dia.

  • 3.94'' Compressor Wheel O.D.

  • 88mm / 3.47'' Turbine Exducer Dia.

  • 96mm / 3.77'' Turbine Wheel O.D.

  • 1.32 Turbine A/R

  • T6 Twin Flow Turbine Inlet

  • Straight Compressor Outlet

  • 5.51" Air Inlet
  • 5.75" x 1/2 Marmon Flange Outlet

  • 4.5" or 5" Downpipe (Select)

  • BorgWarner #171702



S500SX Turbocharger


  • 90.67mm/3.57'' Compressor Inducer Dia.

  • 4.73'' Compressor Wheel O.D.

  • 99.08mm/3.90'' Turbine Exducer Dia.

  • 109.73mm/4.32'' Turbine Wheel O.D.

  • 0.85 Turbine A/R

  • T6 Open Flow Turbine Inlet

  • Straight Compressor Outlet

  • 6" Air Inlet

  •

  • Flat 5.21" V-Band Outlet

  • 4.5" or 5" Downpipe (Select)
  • BorgWarner #179191



BorgWarner S300SX3-66mm BorgWarner S400SX3-71mm BorgWarner S400SX3-71mm BorgWarner S500SX-90mm





TiAL Sport Performance Wastegate Options:



TiAL Sport MV-S 38mm Wastegate 1.75" OD Inlet Flange

  • 1.75'' OD Inlet Flange
  • 1.50'' OD Outlet Flange
  • 0.3 to 1.7 BAR Springs Included
  • Multiple Anodize Color Finishes Available
  • TiAL #002955

TiAL Sport MV-R 44mm Wastegate 1.875" OD Inlet Flange

  • 1.875'' OD Inlet Flange
  • 1.75'' OD Outlet Flange
  • 0.2 to 1.5 BAR Springs Included
  • Multiple Anodize Color Finishes Available
  • TiAL #002949

TiAL Sport V60 60mm Wastegate 2.50" OD Inlet Flange

  • 2.50'' OD Inlet Flange
  • 2.375'' OD Outlet Flange
  • 0.149 BAR / 2.17 psi Spring
  • Multiple Anodize Color Finishes Available
  • TiAL #002615



TiAL Sport MV-S 38mm Wastegate TiAL Sport MV-R 44mm Wastegate TiAL Sport V60 60mm Wastegate

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W31.0000” x H20.0000” x L20.0000”
  • $20.00
  • This item ships in its own box.
