Chevy LS-Universal Twin Turbo Kit: Straight Exit Manifolds

SHM-CTK-LS-S
Available with BorgWarner or CompTurbo performance turbochargers
Availability: Current Lead Times are 2-3 Weeks
Pricing: $5,129.95

Customize Your Item

- Twin TurboCharger Selection -
 * required
- Turbosmart Wastegate Selection -
 * required
- Wastegate Anodize Color -
 * required
- -
 * required
- Motor Plate In Use? -
 * required
- ARP Header Bolts -
 * required
Qty:

Description

Chevy LS1/6 Universal Twin Turbo Kit- Straight Exit Manifolds


This universal twin turbo header kit has everything you'll need to assemble your own high-performance stainless turbo header. Every component is carefully selected for premium, reliable performance, wrapped into an affordable kit.

This small block Ford twin turbo kit uses our proven turbo manifolds with 0.120" thick, 304SS tubular construction, and completely TIG welded. The log manifolds are designed specifically for all standard exhaust bolt pattern LS/LT cylinder heads. These bolt up to, and function great with, LSX/LS7 D-port heads as well.

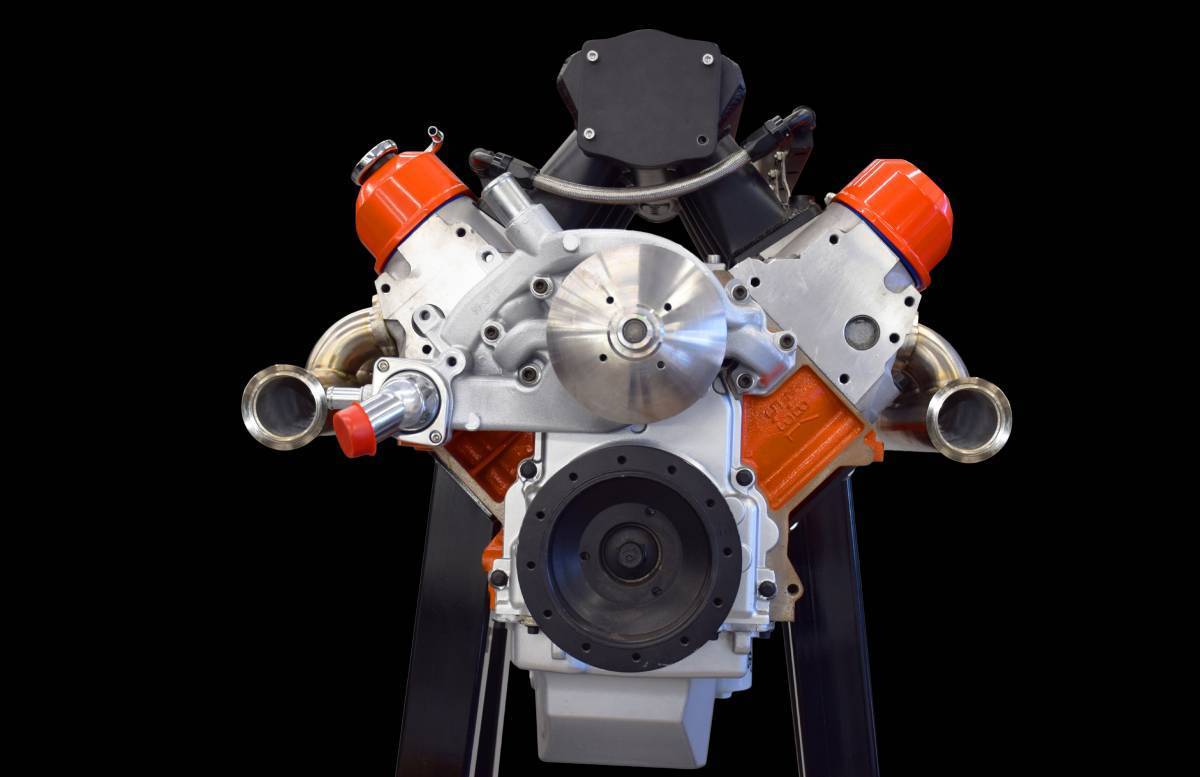

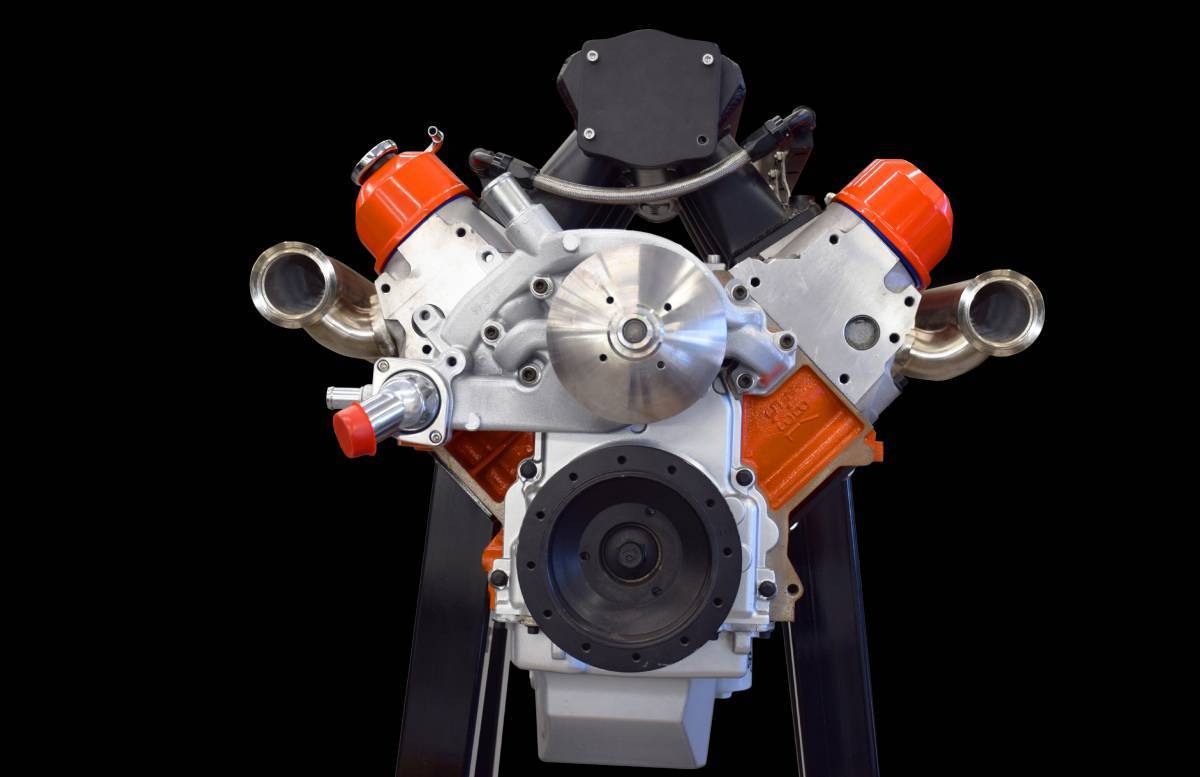

This LS turbo manifold come straight forward on the vbands to maintain tight clearances for those narrow engine bays. These are also great for motor plate set ups where the headers need to come straight in front of the block.

Selecting "YES" for the"Motor Plate" option will lengthen the main log by 4", to ensure both sides can clear the front surface of a motor plate, to make for easier turbo set ups.

The flanges include slotted bolt holes, are 1/2" thick, and surfaced + straightened for optimum sealing surface to the cylinder head.

**Lead times on the turbo manifolds are currently 15-20 business days**

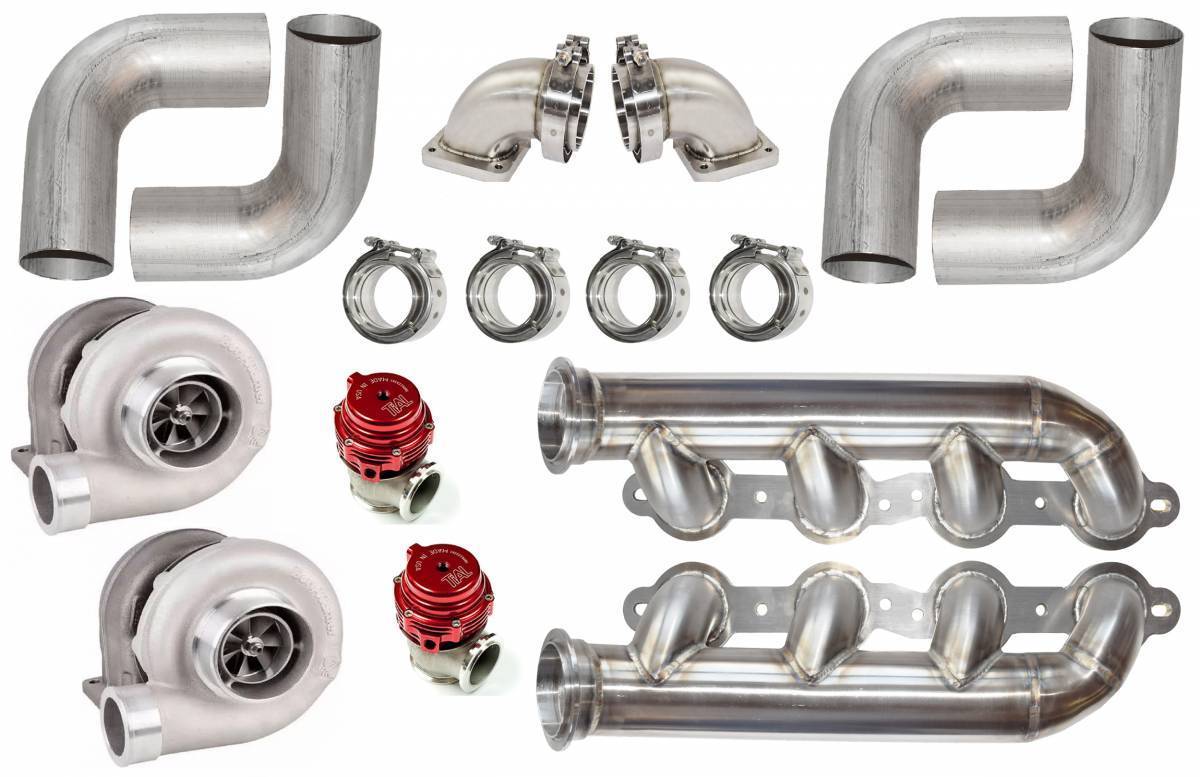

The kit will come with the following:

  • (2) American Made 304SS Turbo Log Manifolds

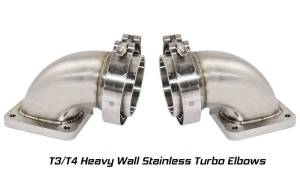

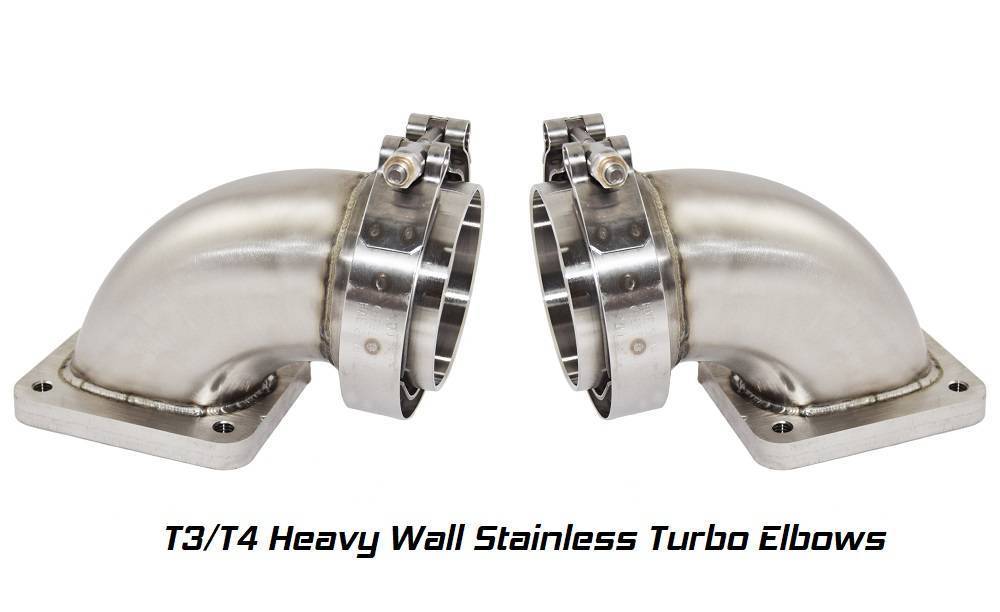

  • (2) American Made 304SS 90 Degree T3/T4/T6 Turbo elbows, also built from the same 0.120" thick 304SS tubing. Including wastegate tubes to fit the selected wastegates.

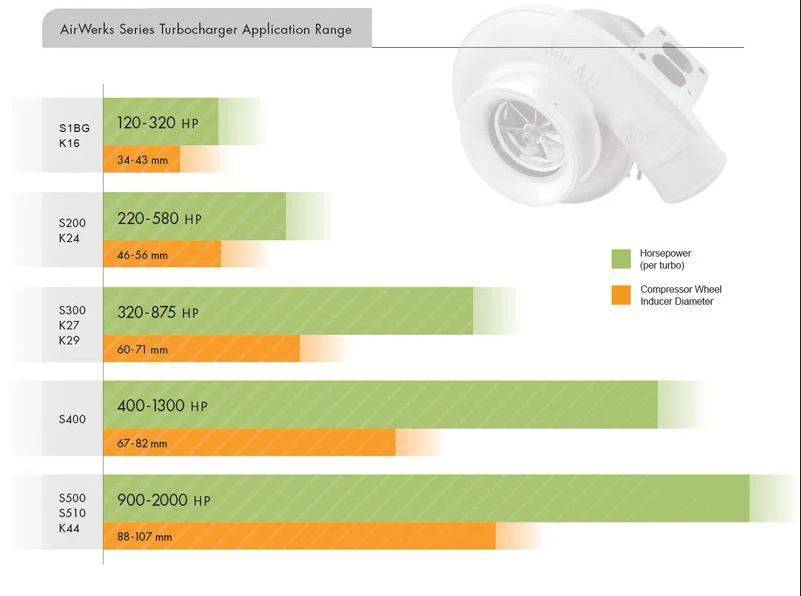

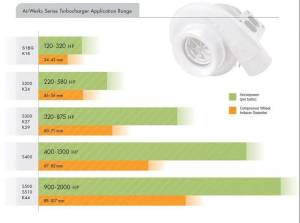

  • (2) Performance BorgWarner Turbochargers- Several options available
  • (2) Performance TurboSmart Wastegates- Several options available
  • (2) Turbo Downpipe flanges (Marmon or V-Band) & Downpipe stubs
  • (4) American Made 304SS 90 Degree Bends to fit the selected turbo downpipe size

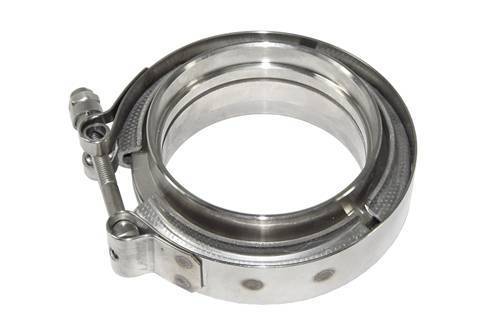

  • (2) American Made 304SS V-Bands to fit the downpipe size

Check out our selection of premium Mishimoto Intercoolers and Turbosmart BOV's to complete your custom turbo system

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W31.0000” x H20.0000” x L20.0000”
  • $20.00
  • This item ships in its own box.
