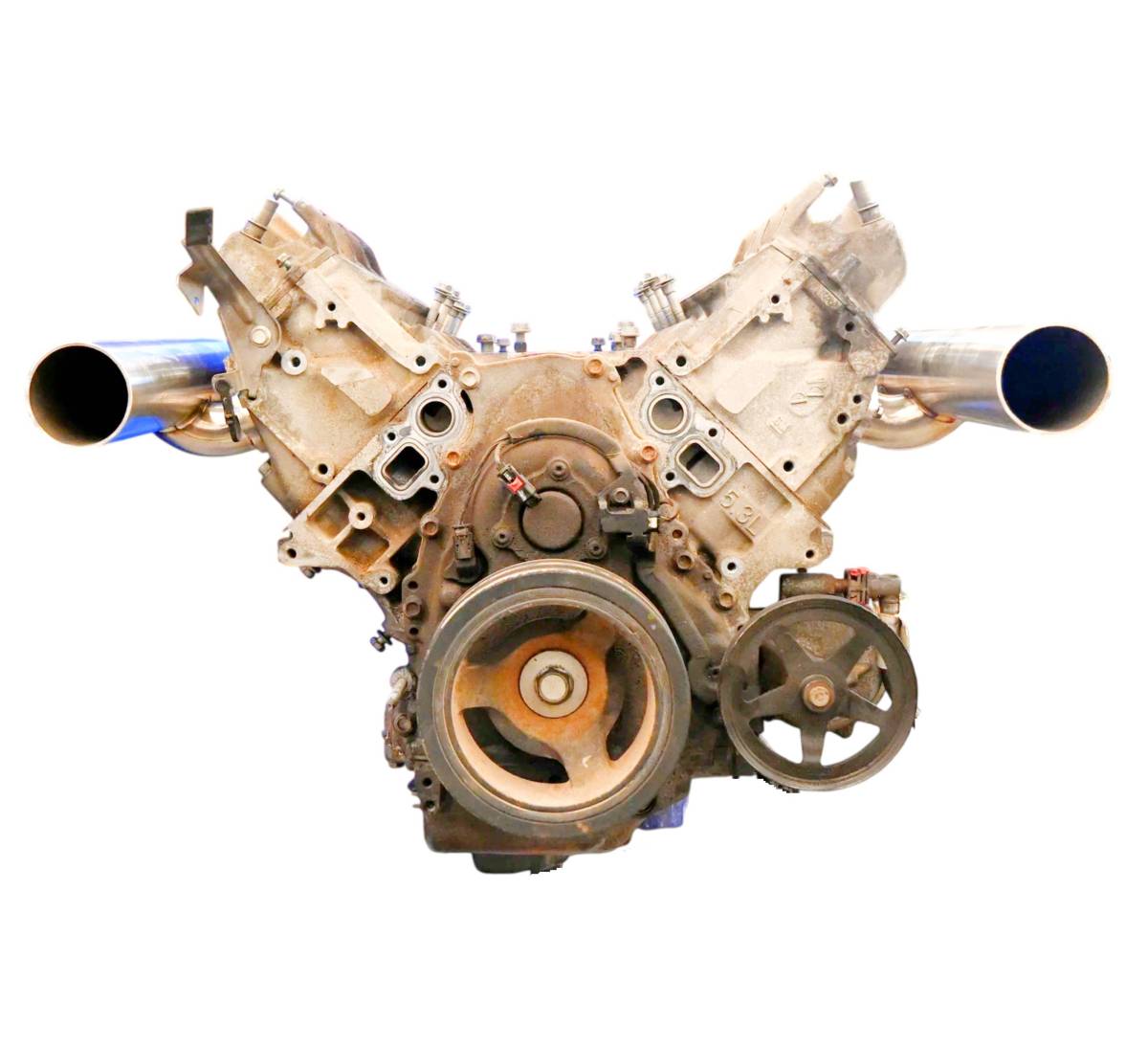

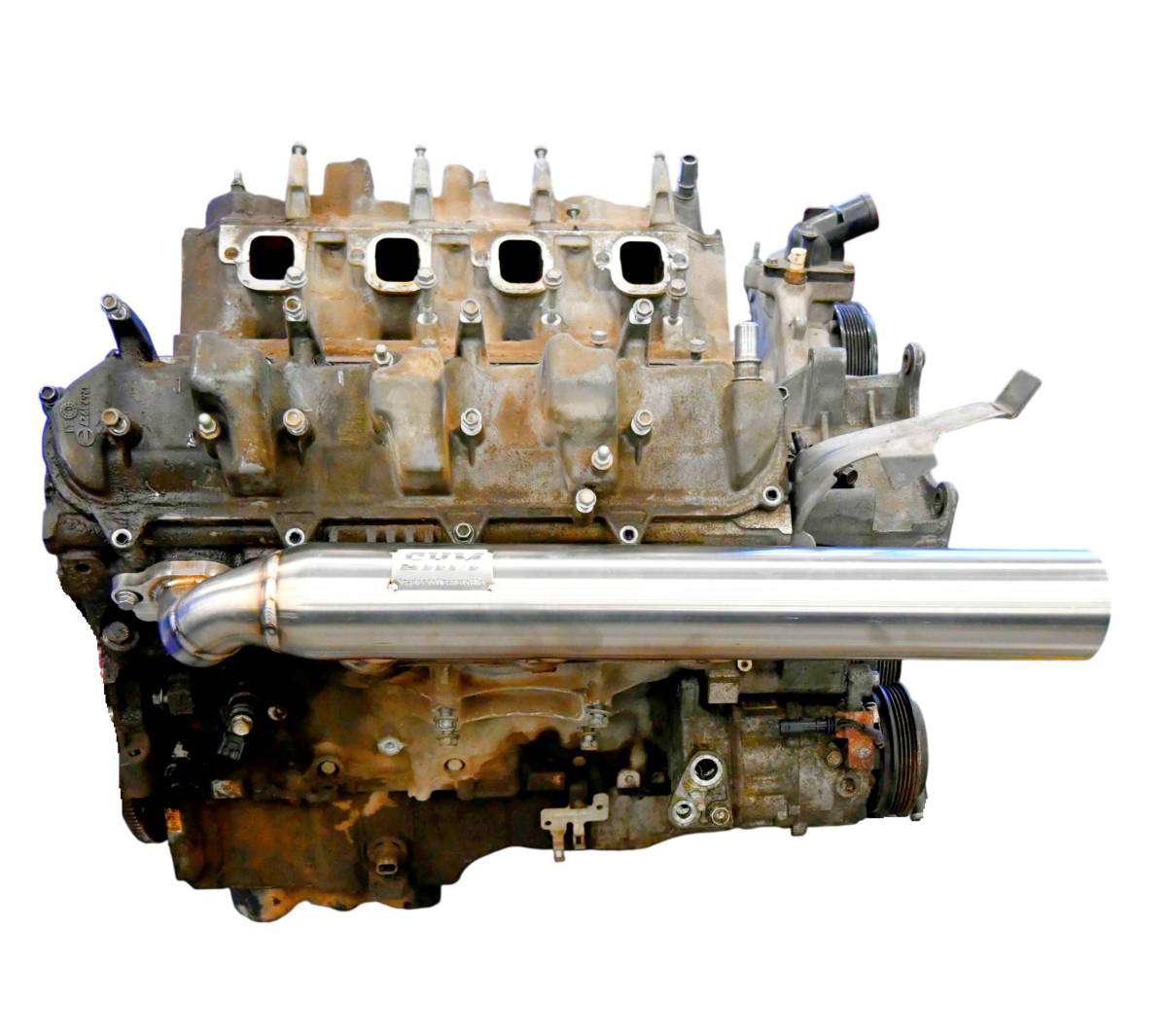

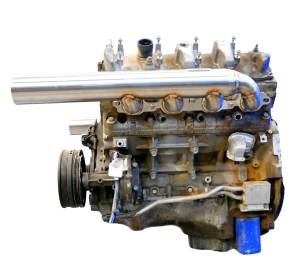

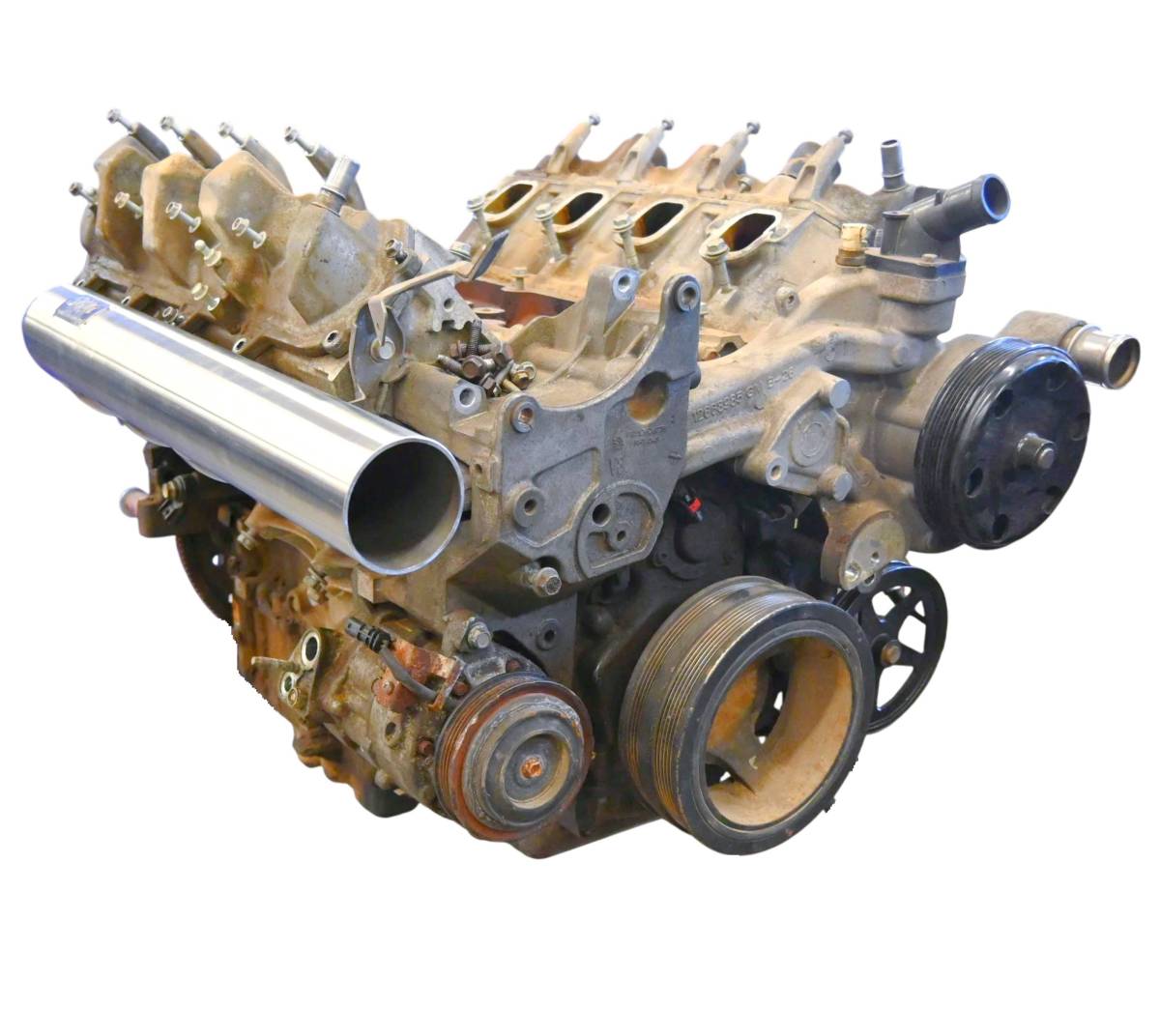

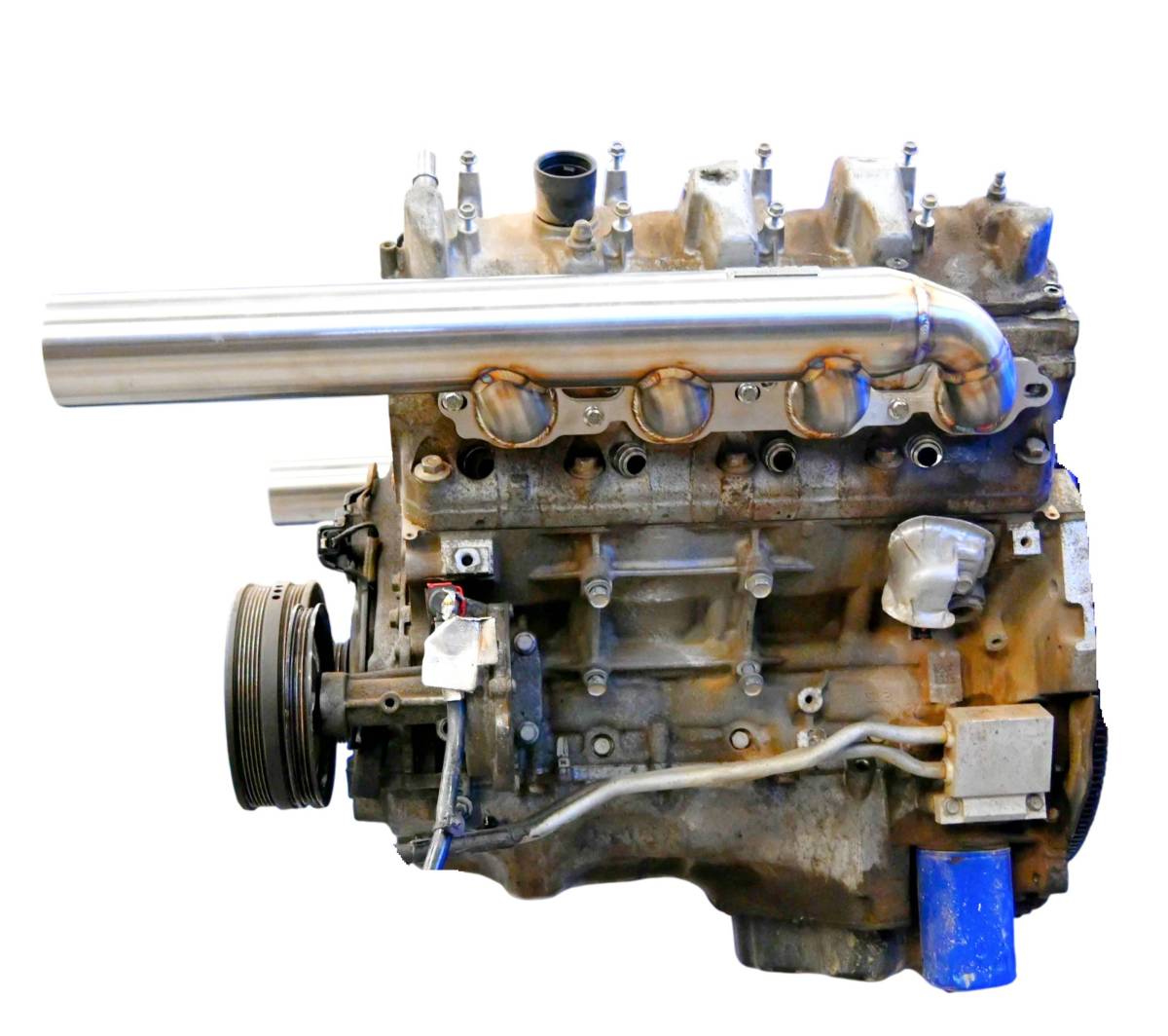

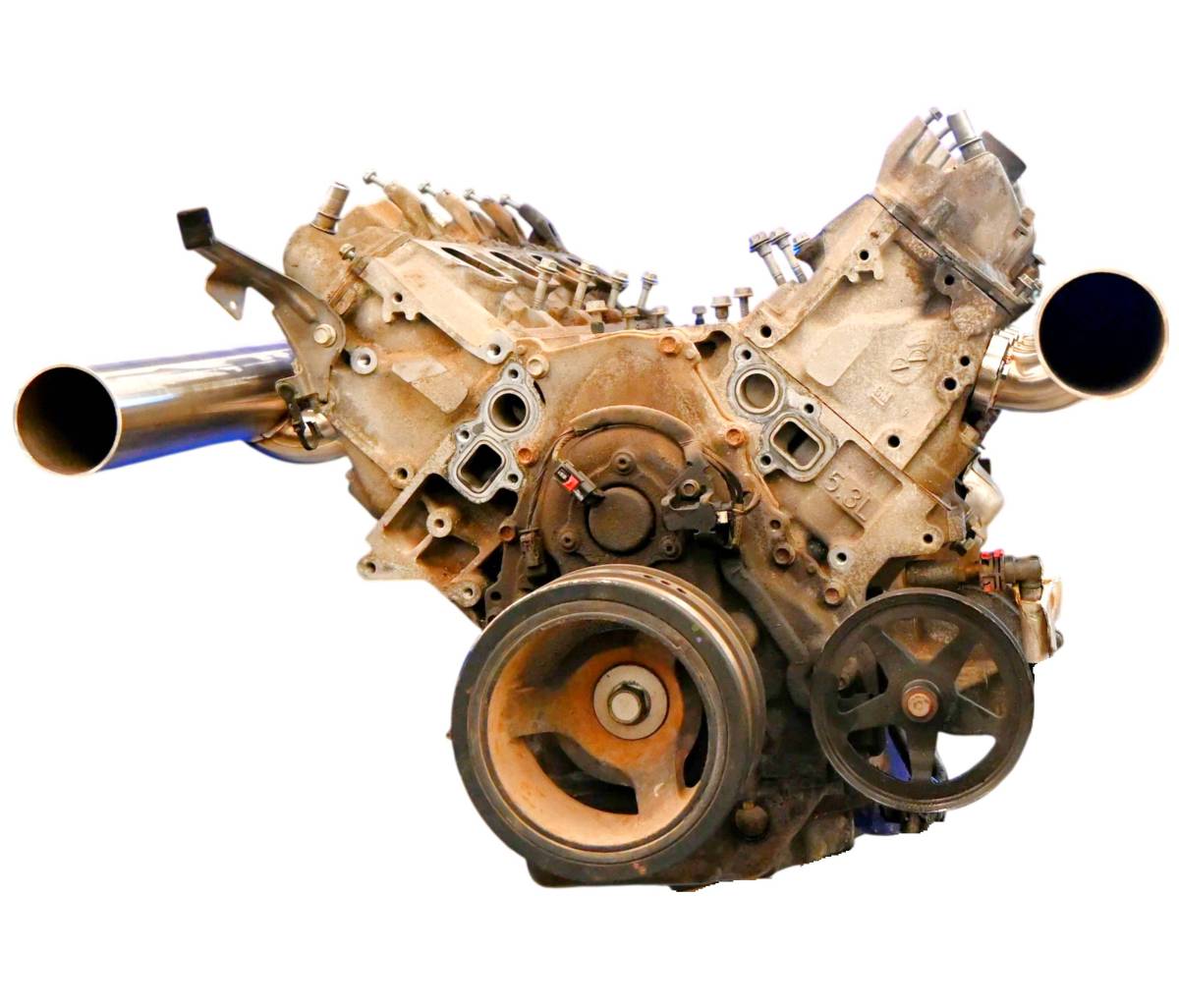

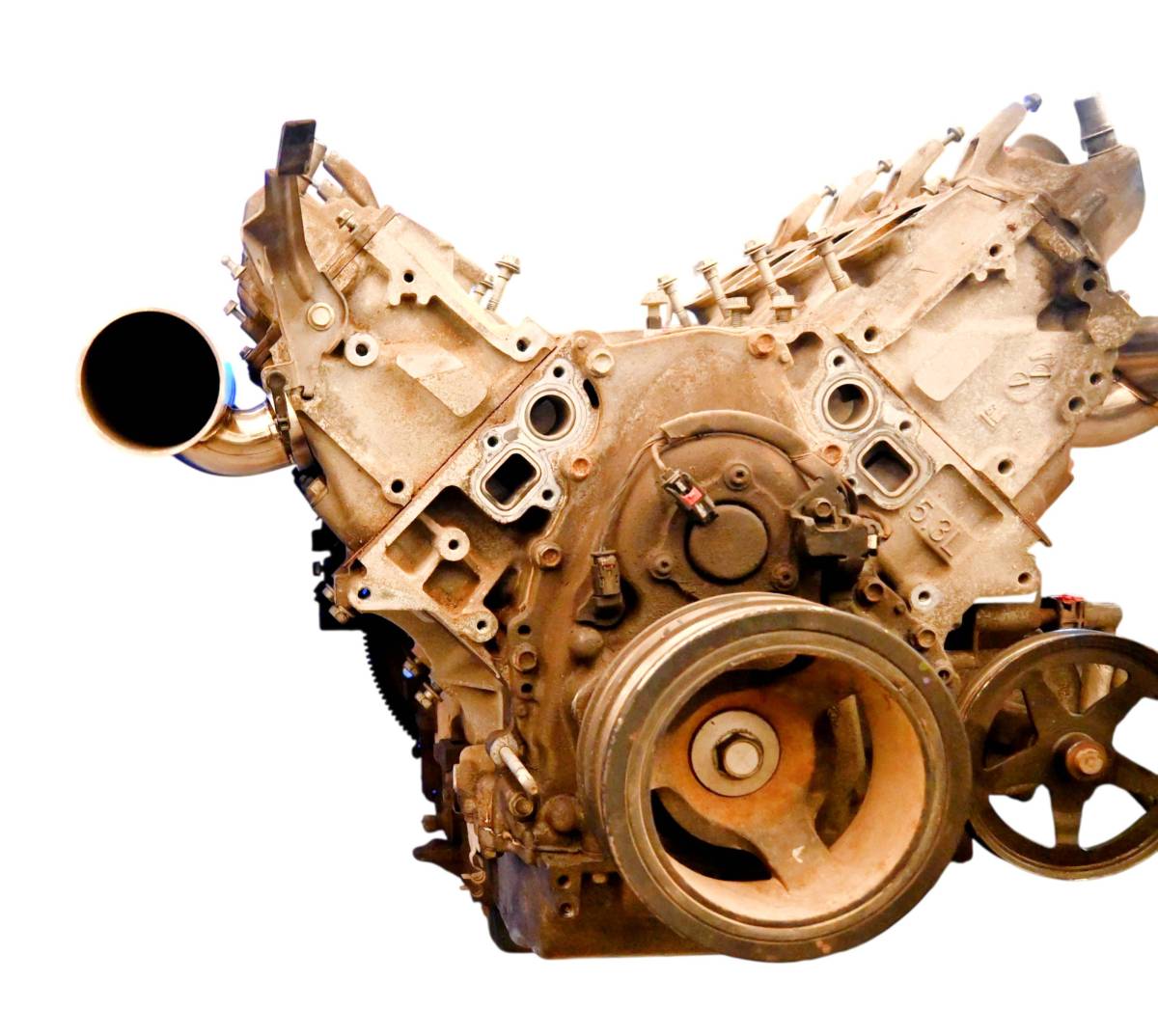

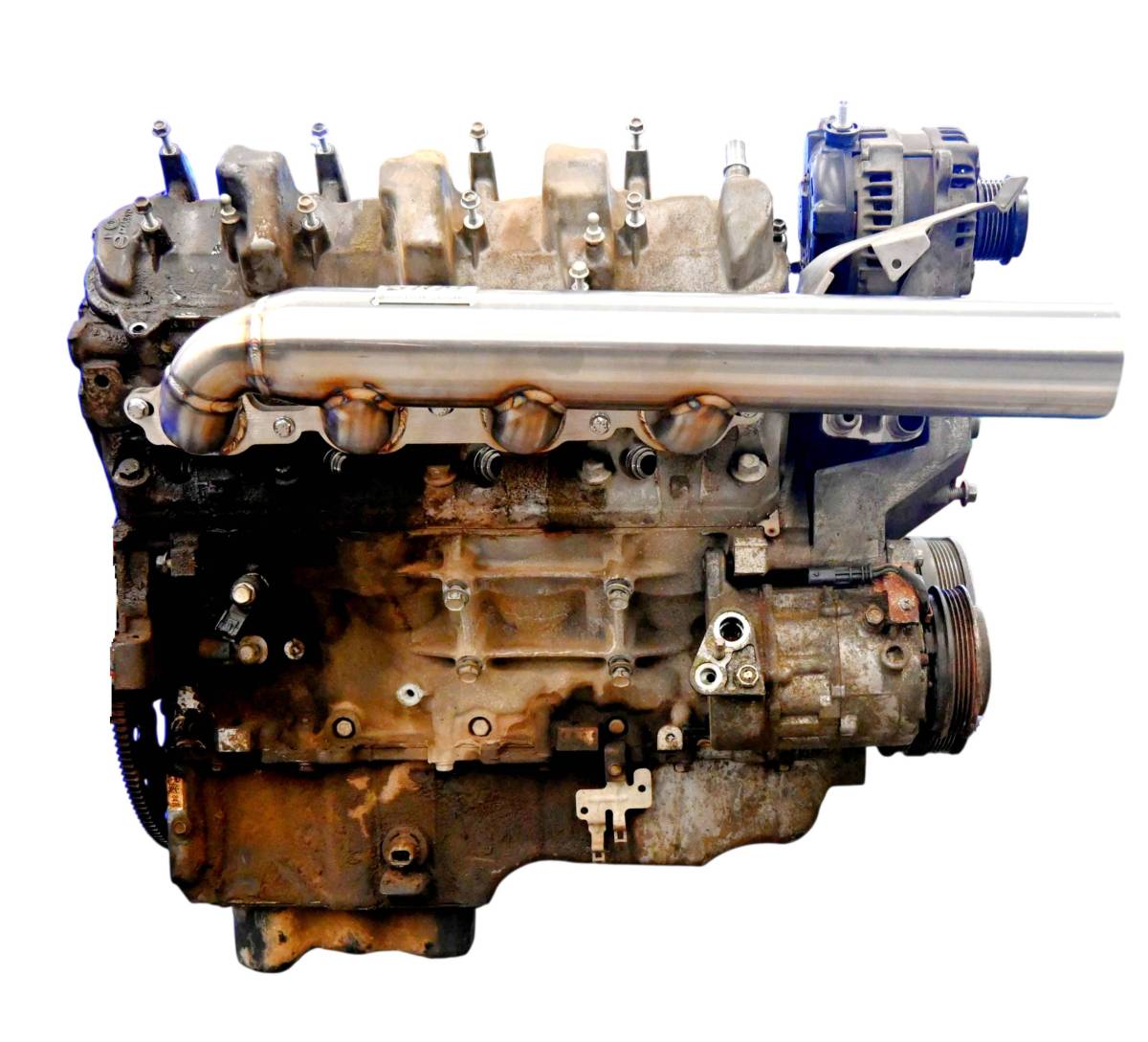

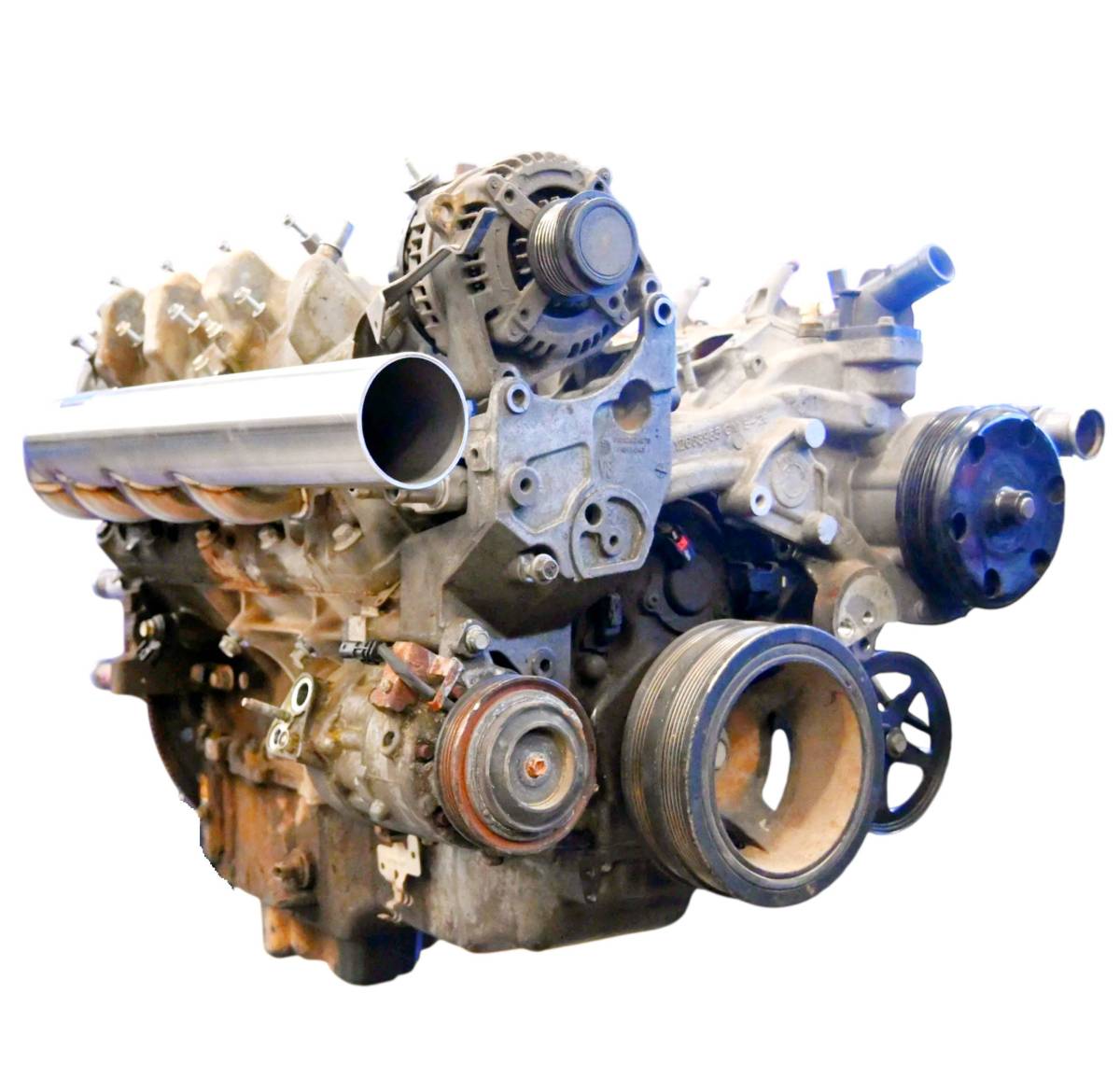

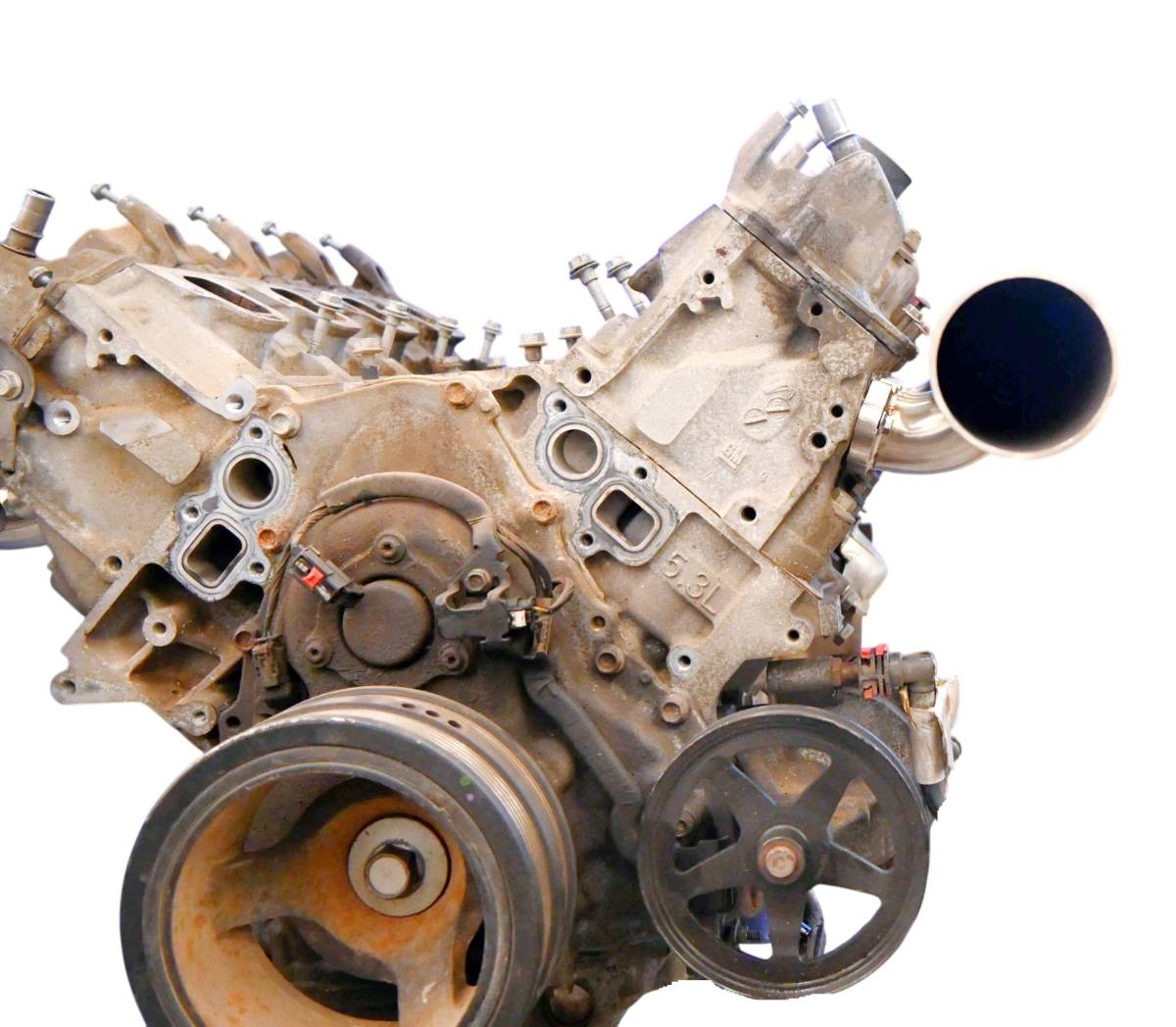

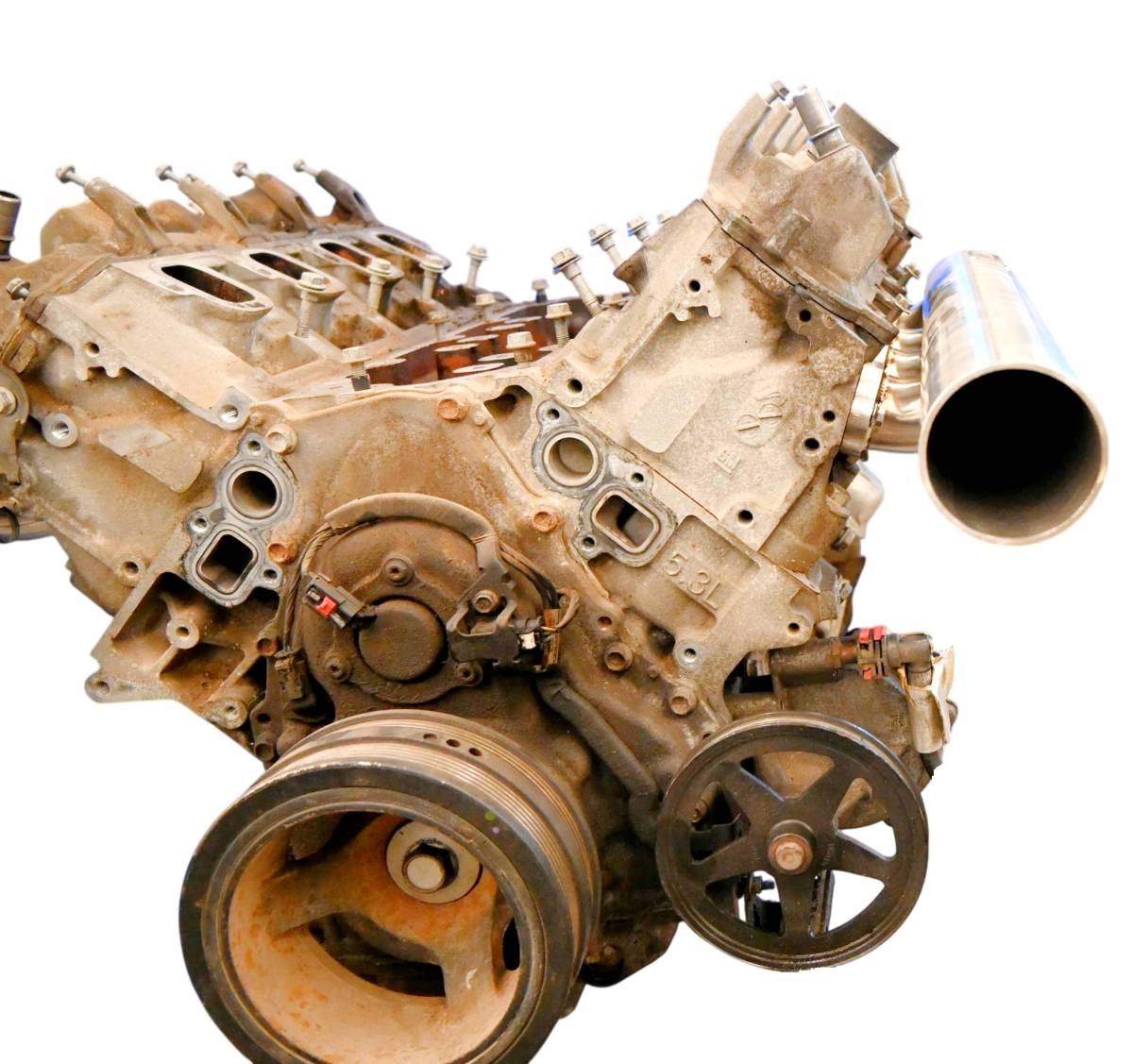

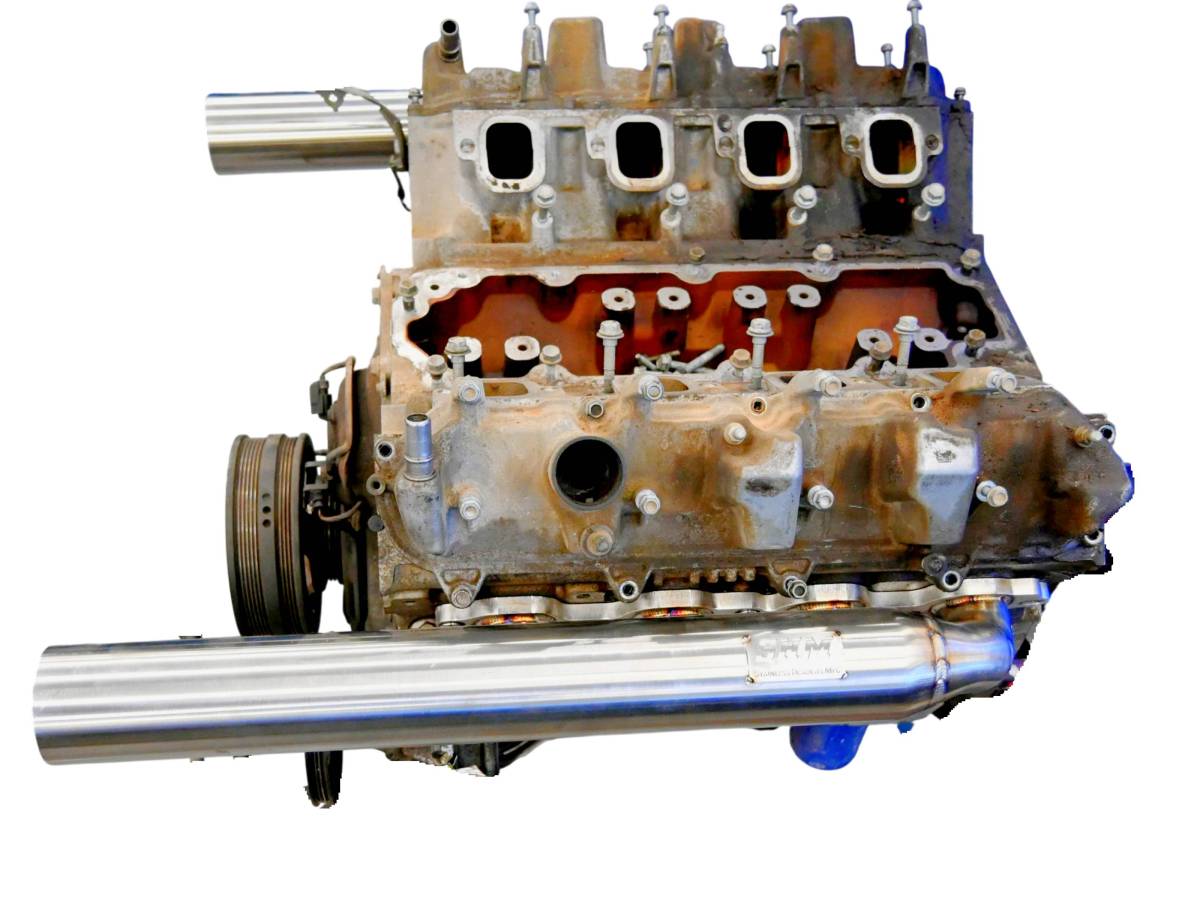

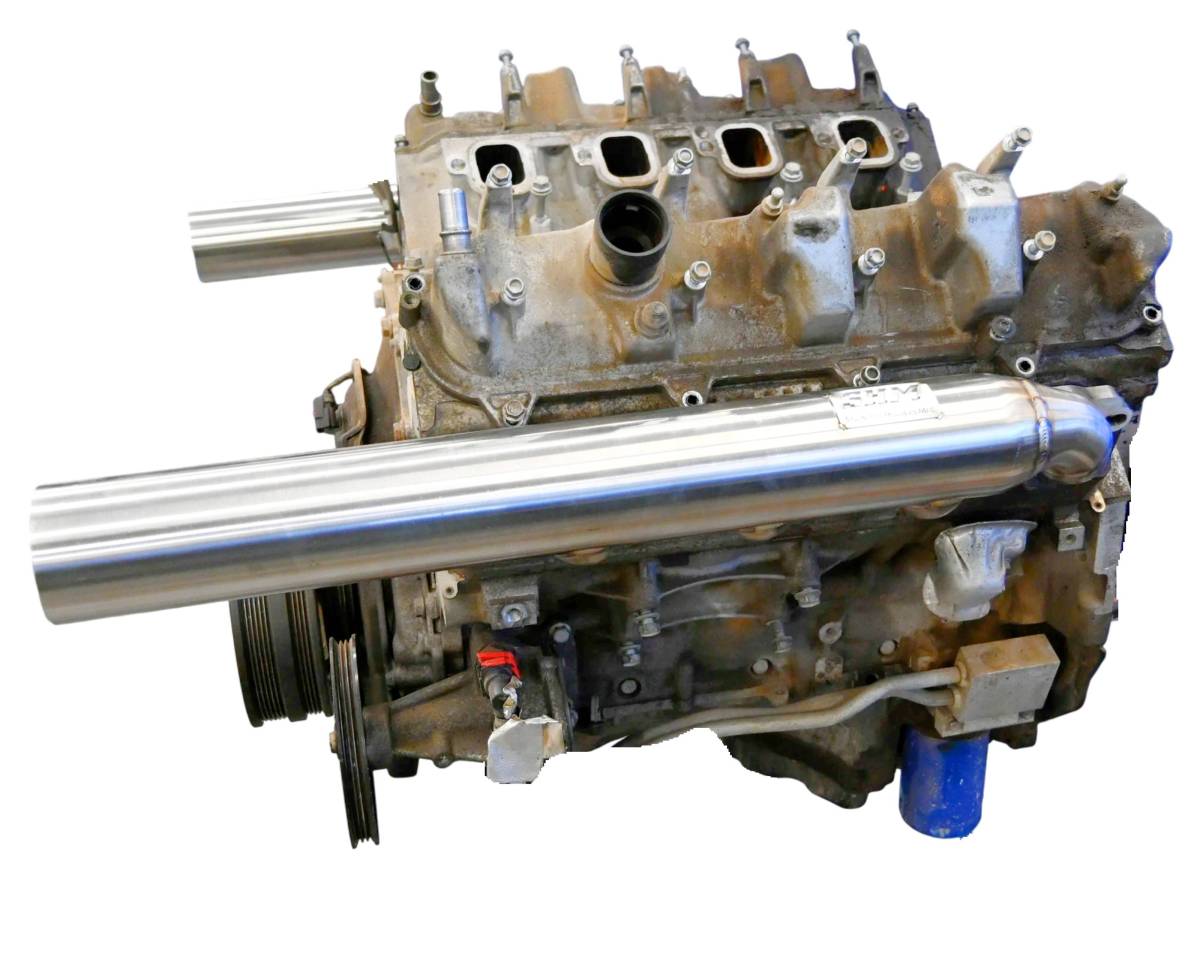

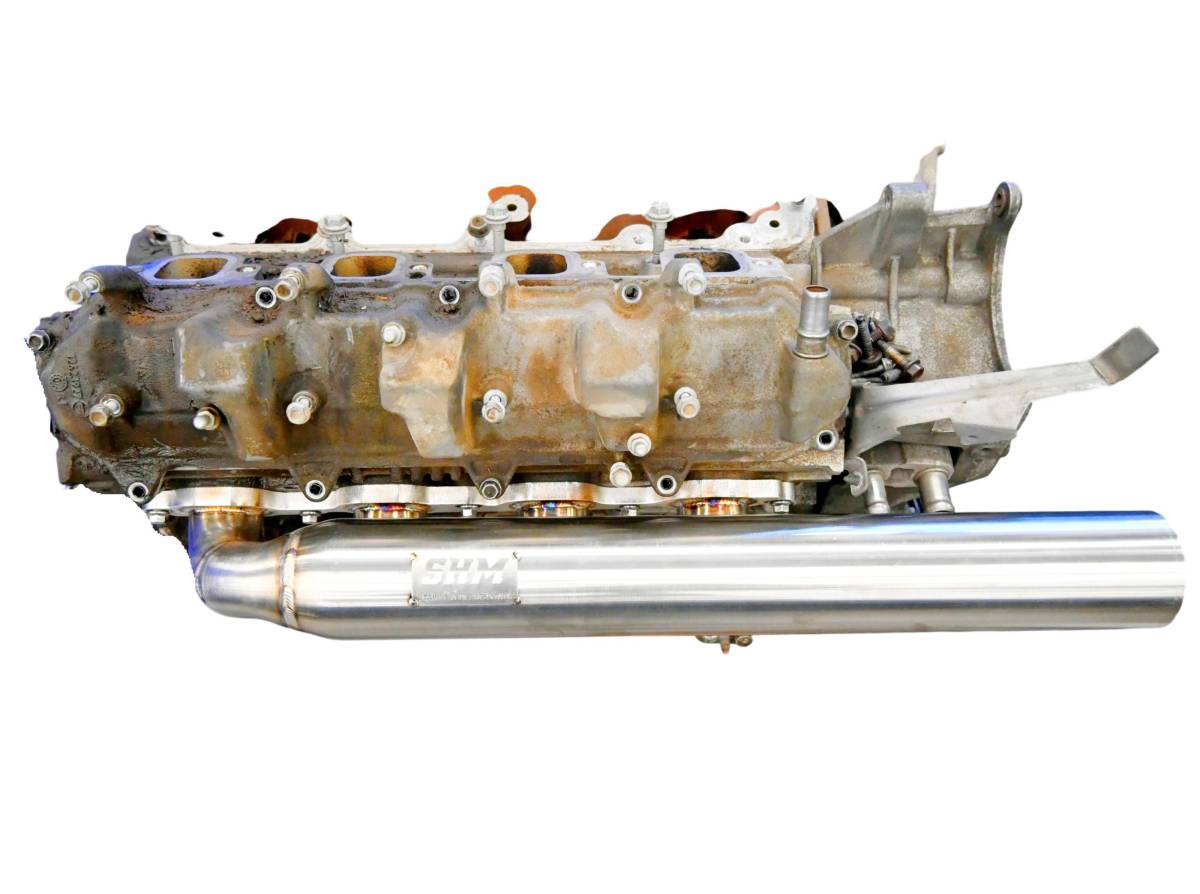

Chevy Gen V LT Turbo Headers- Straight Exit- Up & Forward

Designed specific to the GM Gen V LT engines and cylinder heads, including all factory and aftermarket cylinder head options. Each system is built from 304 stainless steel, with 1/2" thick header flanges and 11ga (.120" thick) tubing. All joints are purge-TIG welded, and finished above industry standards. Each flange is also machined flat & straight after welding to eliminate any warpage, and ensure a proper gasket seal.

These up and forward turbo headers come standard with the following specs:

• 1/2" Thick Header Flanges (Available in Round Port or Oval Port)
• 2" Diameter Primary Tubes-11ga 304 stainless steel (1.76" ID)
• 2.5" Log Sizing, 11ga 304ss (2.26" ID)
• Male V-Band flange welded to outlet (Female flange + correct clamp included)

Each system also has several upgrade options available:

• Flange Port Shape (Round Port or Oval Port)
• Upgrade for Higher Power Build (Changes to 3" Log + V-Band sizing (2.76" ID))
• Add EGT Sensor Bungs (Either Racepak Style [external thread] OR 1/8" NPT Style [internal thread])
• High Temp Ceramic Coating
  • Satin Black (2200F Rating)
  • Gray Ice (1800F Rating)
  • Satin Silver (1800F Rating)
  • Burnt Bronze (1700F Rating)

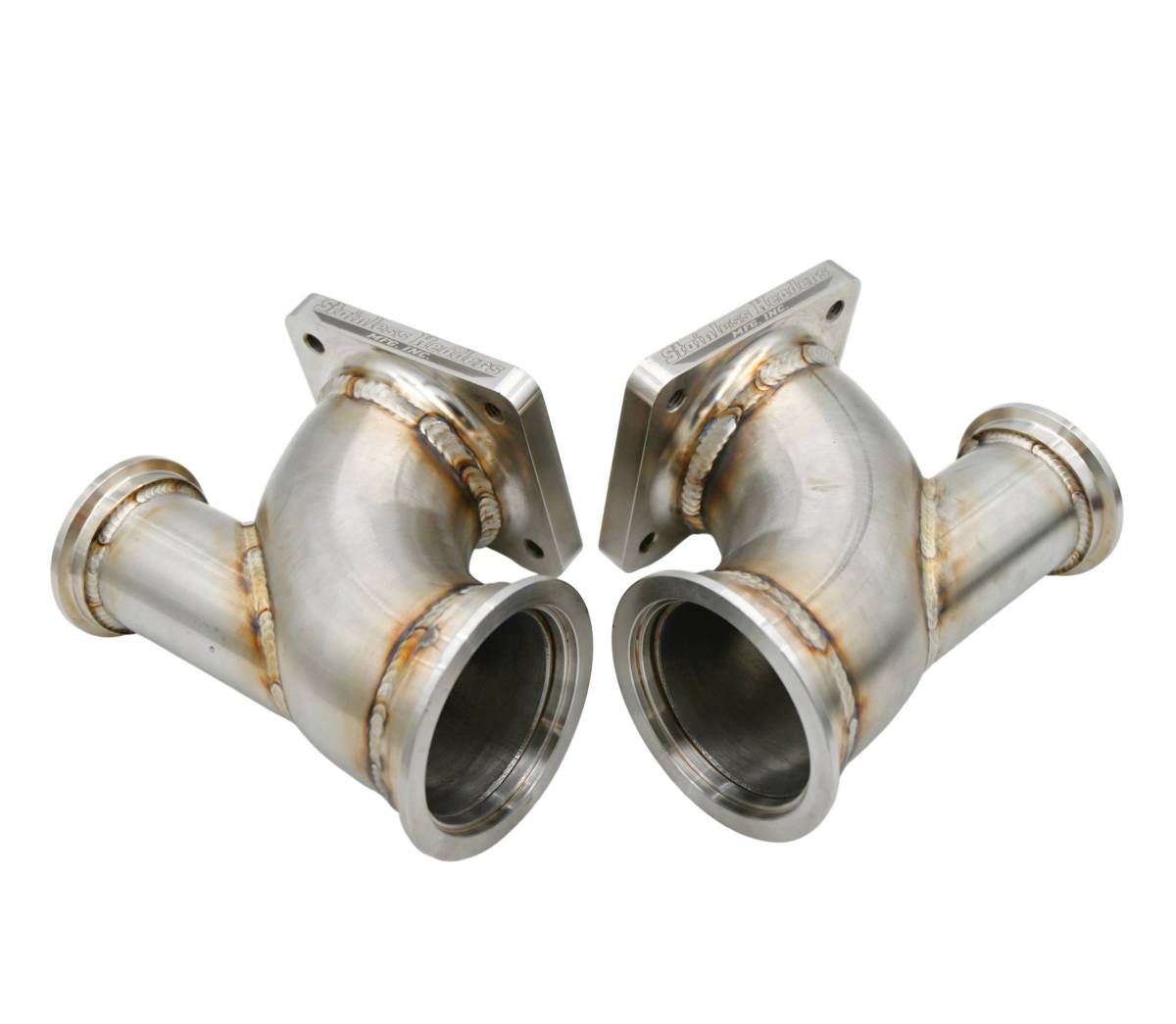

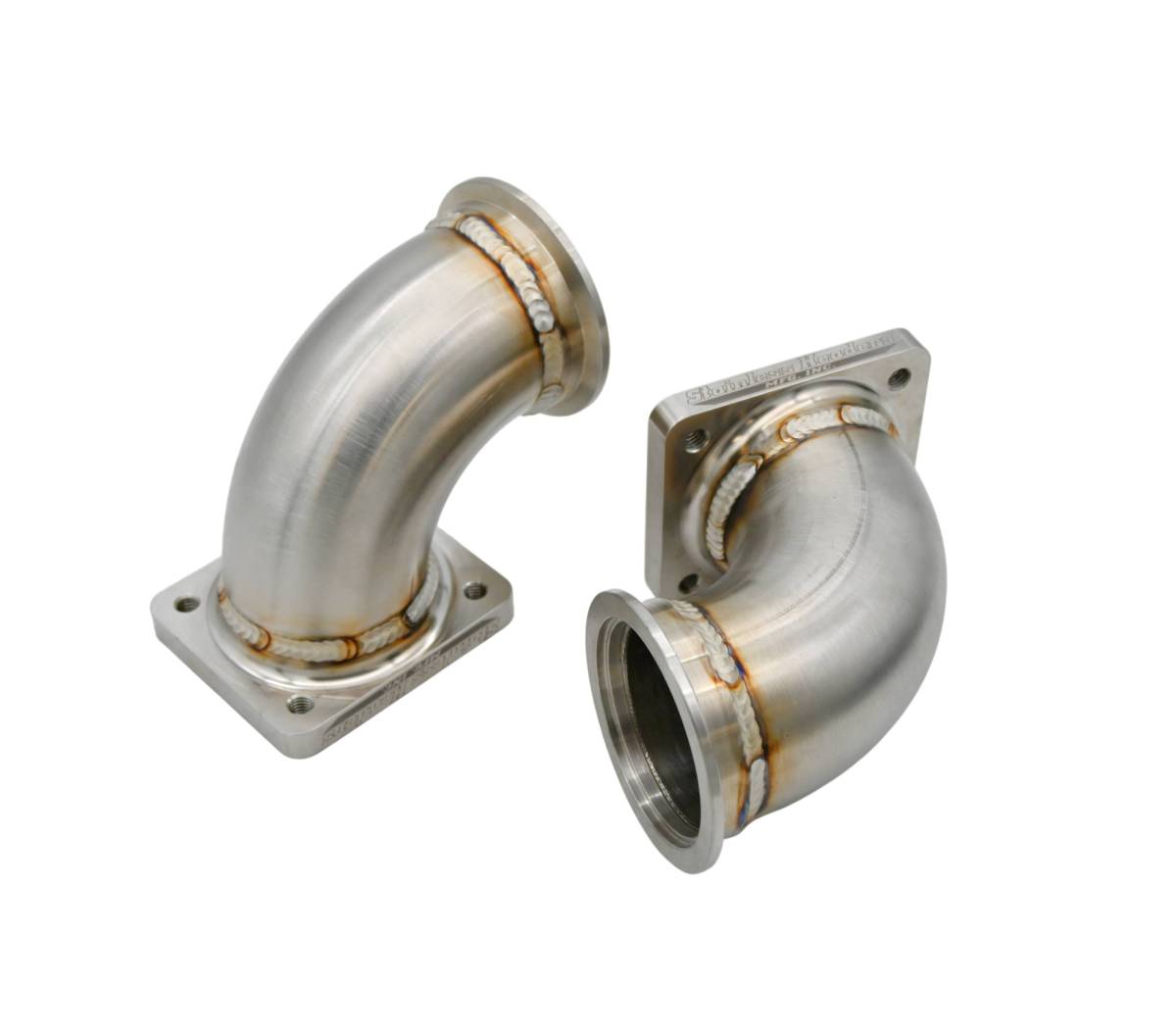

• Additional Turbo Inlet Elbows
  • T3
  • T4
  • T6
  • Turbo-Specific V-Bands (Precision, HPT, VSRacing, etc..)
• Wastegate Provisions (Requires Turbo Inlet Elbows to be purchased)
  • Available for:
    • Precision, Turbosmart, TiAl, VSRacing, etc...
    • 38mm/40mm/44mm/45mm/50mm/60mm sizing options

The GM Gen V engine lineup consists of the follow engine codes:

• LT1 6.2L (C7 Corvette, 6th Gen camaro,
• LT2 6.2L (C8 Corvette)
• LT4/LT5 (C7 Corvette Z06/ZR1)
• LT6 (C8 Corvette Z06)
• Truck Variants:
  • 5.3L LT EcoTec3 (L83/L84) and
  • 6.2L LT (L86/L87)

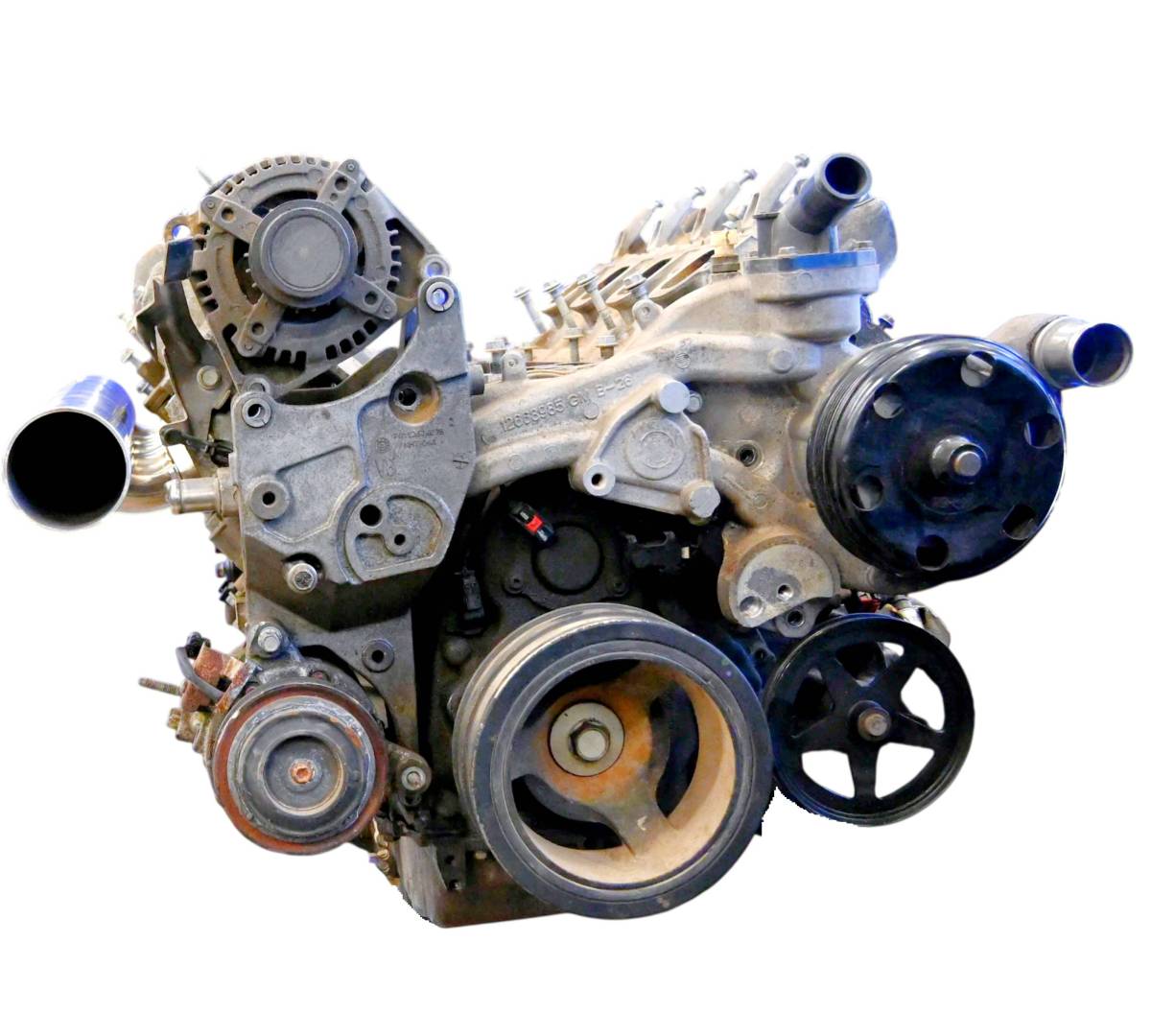

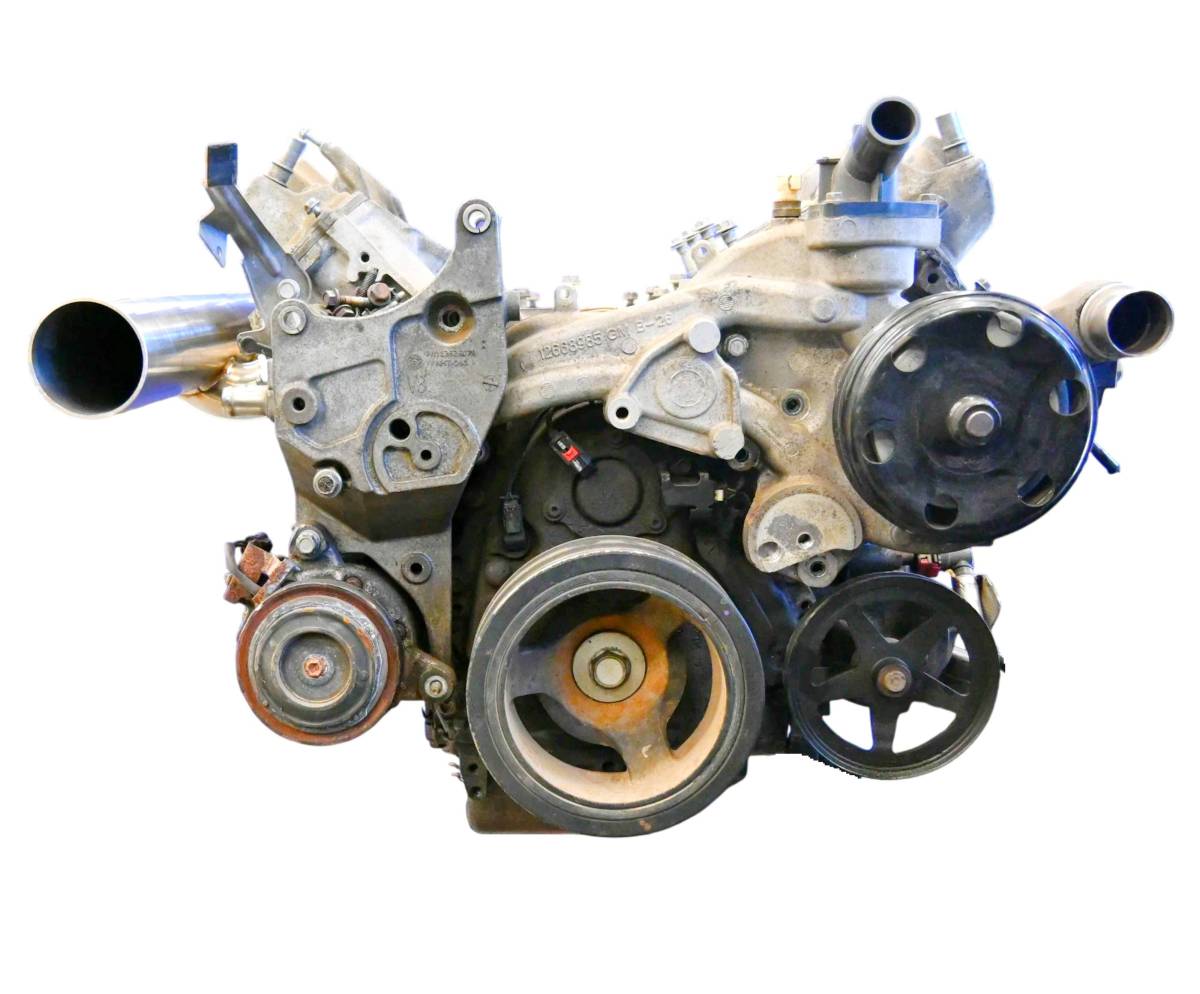

The following is an ongoing list of confirmed accessory drive kits that work with these turbo headers:

• LT1/LT4/LT5 C7 Corvette Water Pumps
• LT1/LT4 Camaro, CTS-V, CT5-V Blackwing Waterpumps
• Most (Possibly all) aftermarket Electric or Remote Water Pump Assemblies
• ICT Billet 551177-LT-3 Alternator Mount(Truck Balancer Spacing)
• ICT Billet 551790 LT4 Conversion Bracket (Truck Balancer Spacing)
• Holley Mid Mount Accessory Drive
