Standard Pontiac D-Port 400/455 Turbo Header

Pontiac V8, 389, 400, 421, 428, 455

SHM-MTH-PONT-455DS
Modular Standard Pontiac D-Port 400/455 Turbo Header
Availability: Current lead times are <2 weeks
Pricing: $1,069.95

Customize Your Item

- Modular V-Band Elbows -
 * required
- Turbo Mount Elbows -
 * required

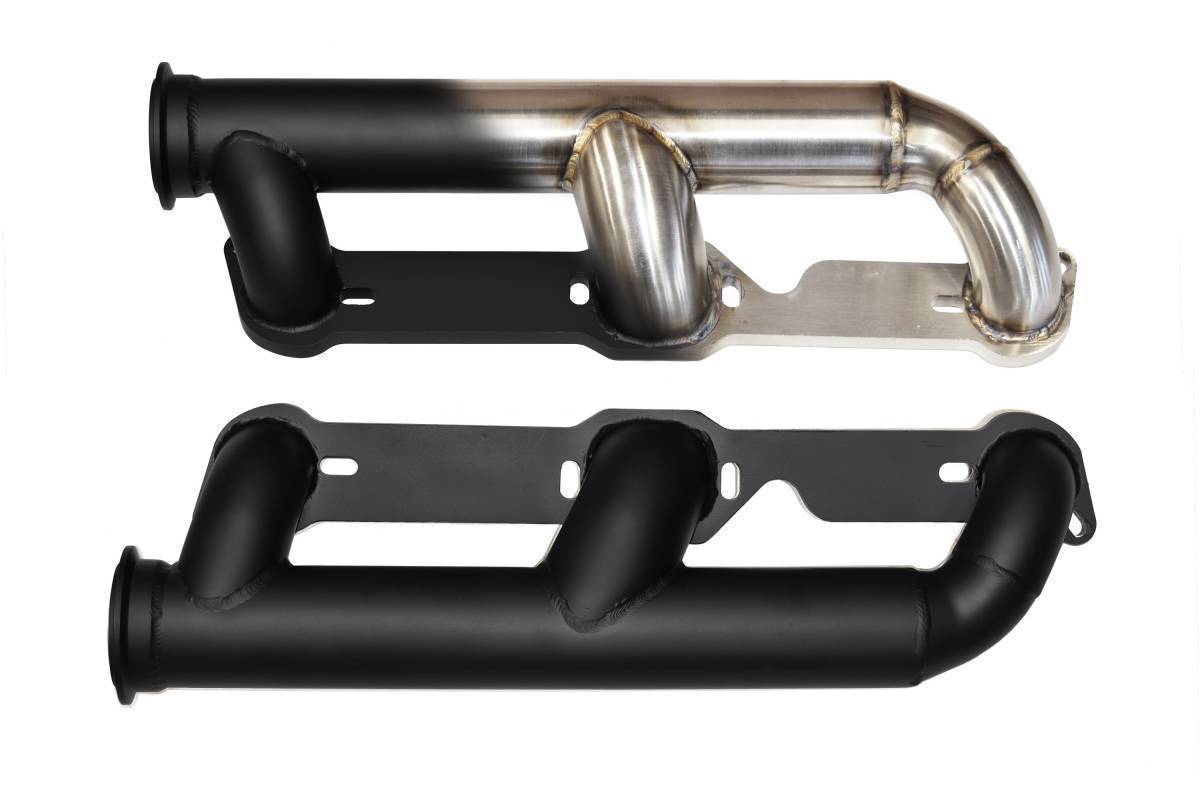

- Ceramic Coating -
 * required
- Power-Size Upgrade -
 * required
- Select Wastegate Type (requires -
 * required
- Add Header Bolts? -
 * required
Qty:
Free GROUND Shipping

Description

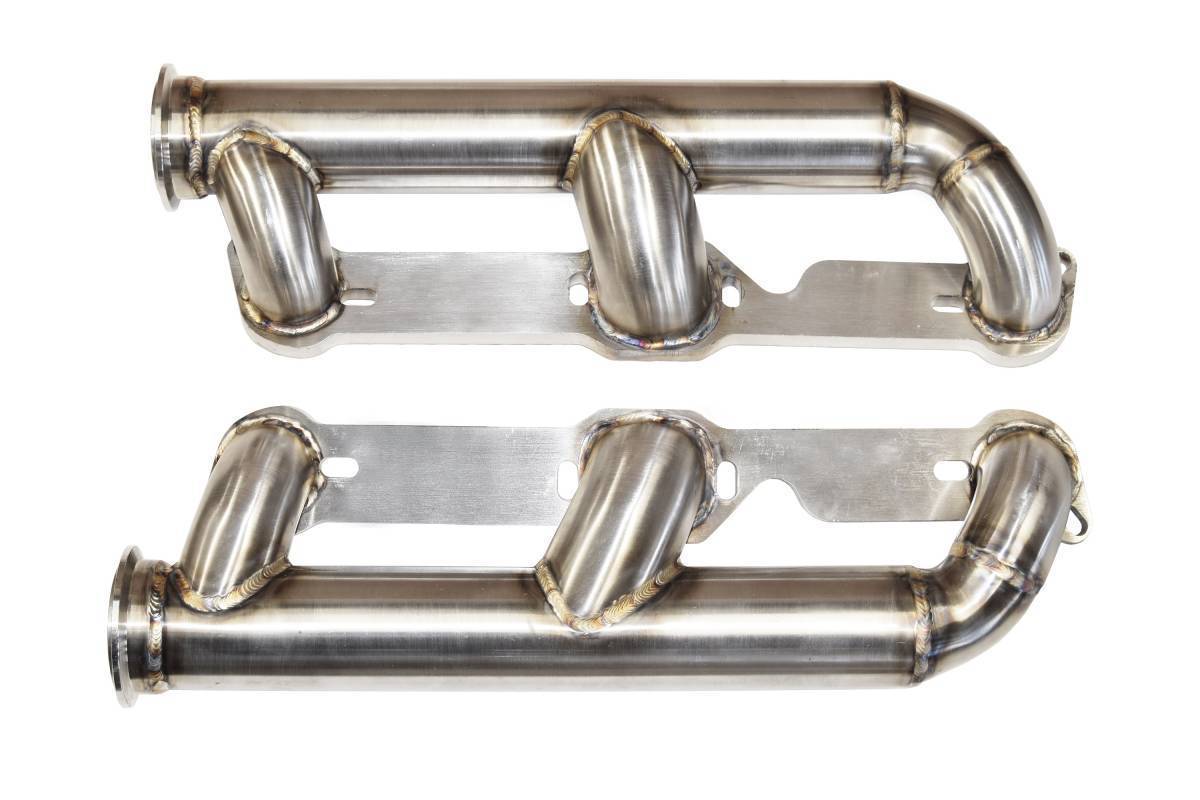

Bolt-on Pontiac 400/455 Standard D-Port Turbo Headers



The What:

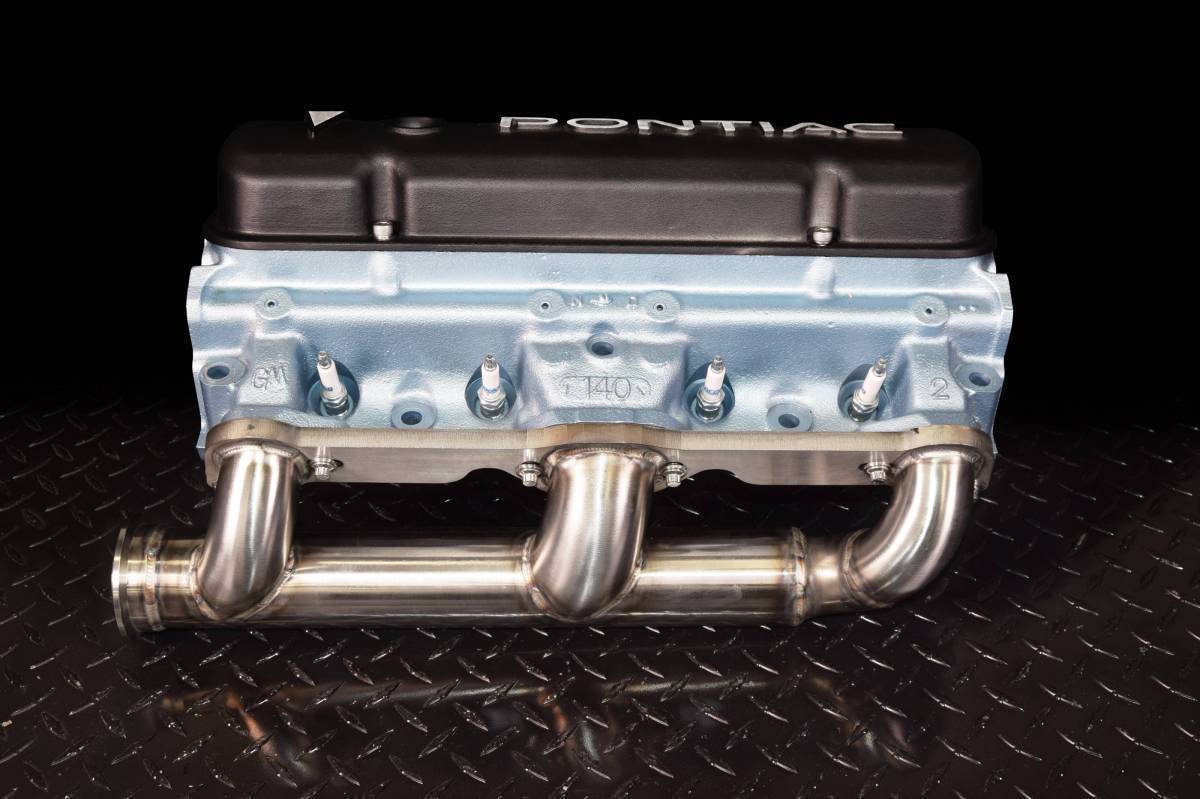

Designed to fit the factory D-Port style of Pontiac 400/428/455 cylinder heads, these bolt-on turbo headers are the perfect solution to any turbo header packaging concerns. Made of heavy wall, American Made stainless steel pipe, these modular log manifolds can handle the heat and vibrations that come from a turbocharged engine build.

The How:

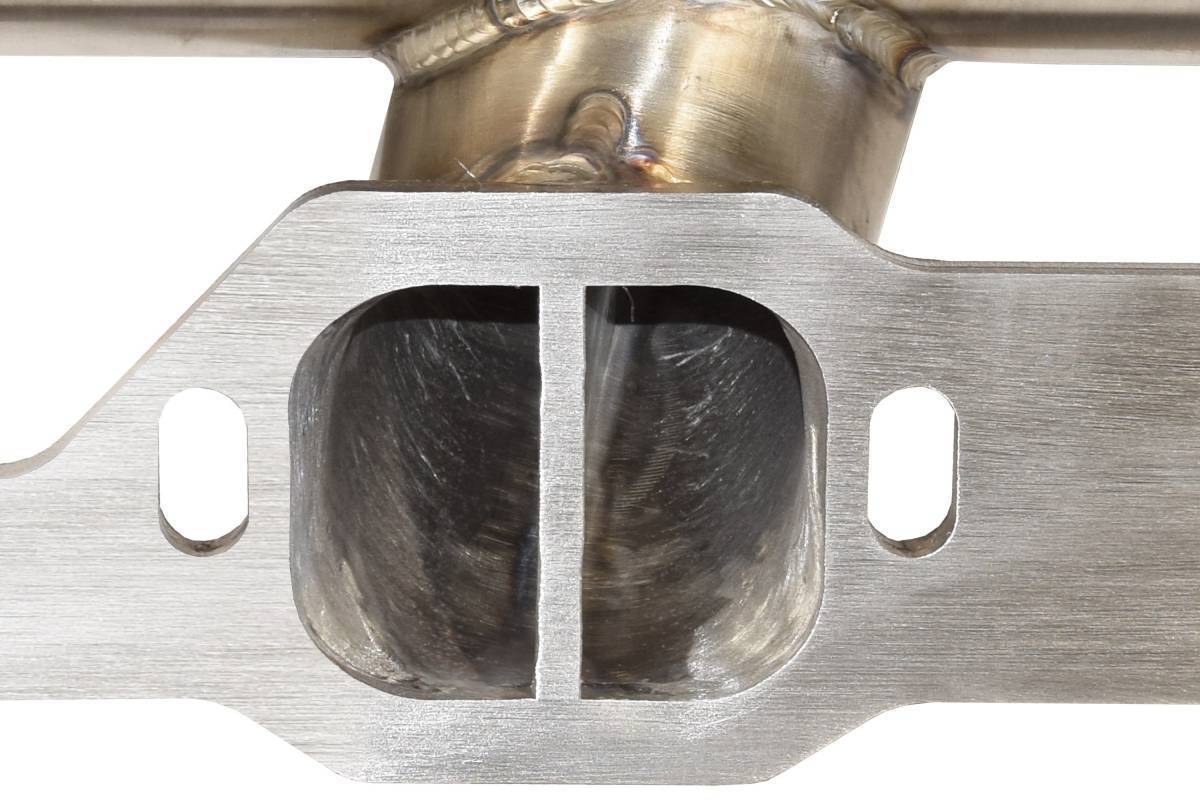

The center d-ports are Siamesed together, and utilize a larger, 2 1/2" OD primary tube to account for both cylinders' flow. The standard version of the D-port turbo header does NOT incorporate a central divider plate, in order to help reduce cost. It does, however, still utilize the half-inch thick flange and it's built-in spacer, to accomodate some amount of port division & separation. This is a great solution for those not needing ultimate performance, or are looking to save a few bucks on those turbo Poncho builds.



The beauty behind this design? The builder never has to touch a tig welder or strike an arc. Every component can be bolted and pieced together in a modular fashion, without every worrying about the strength or quality of the builder's welds and fabrication. The compact design also allows use of these modular turbo headers in small engine bays. The heavy wall construction of these manifolds means less heat-absorption by the tubing, which means less energy produced by the engine's combustion process is wasted as heat, and is instead conserved as energy and velocity going to your turbos. This also leads to cooler engine bay temperatures, which can also improve intake air temps, increasing the density of oxygen in the air, leading to further power gains.

For further information, check the Returns/Shipping policy. Any questions or concerns, call the shop for further information. Ceramic coated products are NOT returnable nor refundable items. All sales are final**



We recommend builders start off with the base manifolds prior to adding in the additional elbows to meet your turbo mount points.

Approximate Turbo Header Dimensions:

  • 20 1/2" long from rear of flange to front of V-Band
  • 5 1/2" overall height- base of flange to top of manifold
  • 3" height offset- center of log to center of exhaust ports
  • Header log is about 3 3/4" away from cylinder head, with Vband being 4" away.



The initial set up will come with:

(2) 1/2" thick 304 SS header flanges with a 2" round port in the header flange.

(8) Purge Tig Welded primaries coped into a compound manifold, made of 0.120" heavy wall pipe, 304 SS.

(2) Compound log manifolds with a 2 1/2" outside diameter, kept tight against the engine block for tight engine bay applications, ending with a 2 1/2" v-band flange for additional modular components



Additional Modular Components available:

  • 22 Degree Mandrel bend with accompanying V-band Flanges
  • 45 Degree Mandrel bend with accompanying V-band Flanges
  • 90 Degree Mandrel bend with accompanying V-band Flanges
  • "S-Curve" Double 90 Degree Mandrel bend with accompanying V-band Flanges
  • 180 Degree Mandrel bend with accompanying V-band Flanges
  • "S-Curve" Double 180 Degree Mandrel bend with accompanying V-band Flanges

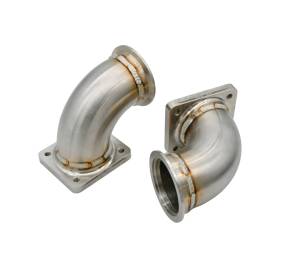

  • 22 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange
  • 45 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange
  • 90 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange
  • 180 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange
  • "S-Curve" Double 90 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange
  • "S-Curve" Double 180 Degree Mandrel bend with one mating V-band flange, and terminating in a T3 or T4 Turbo Flange

We also offer custom y-pipe and crossover tube configurations for single turbo applications, or single exhaust builds.

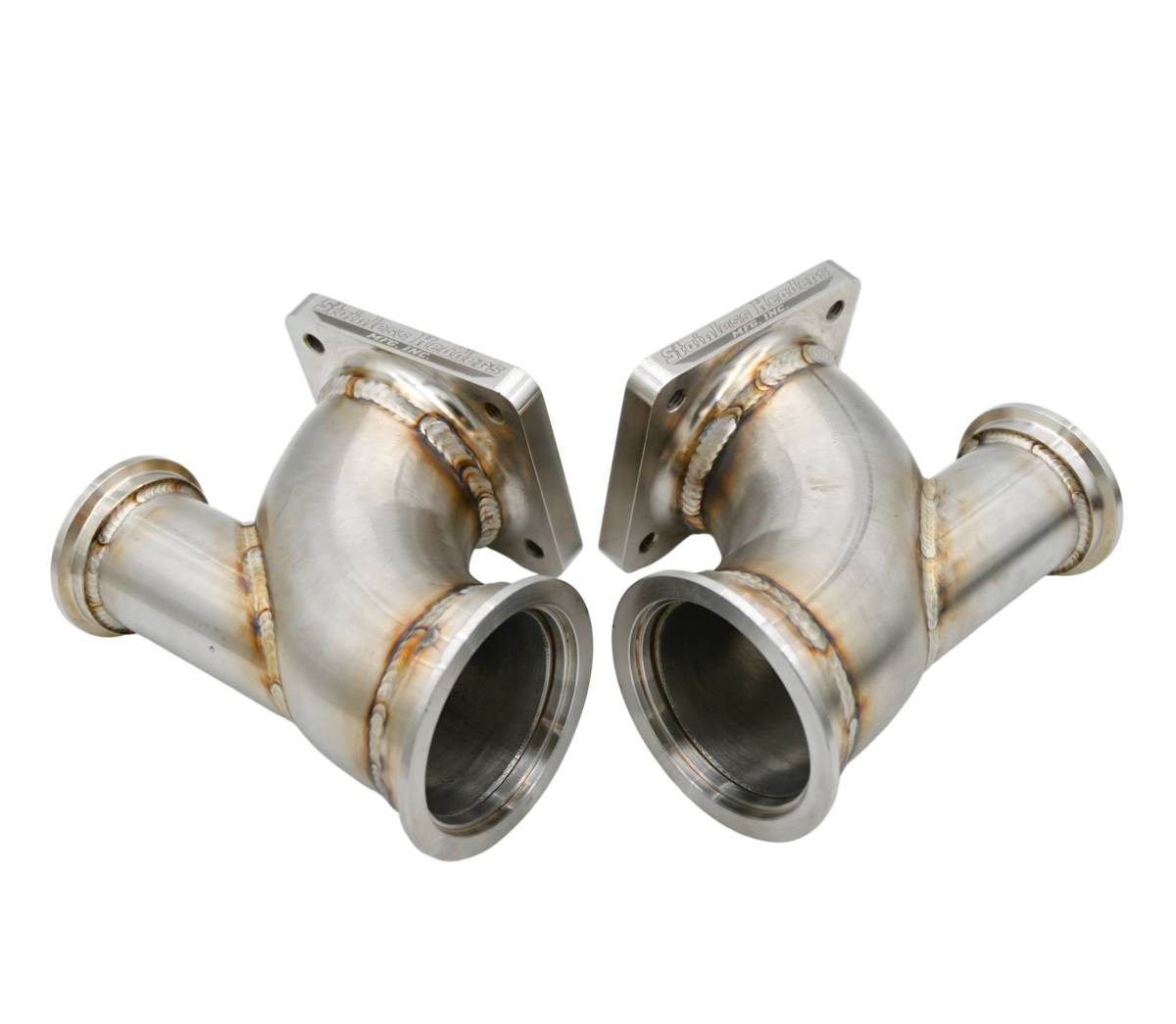

Using our downpipe mockup kit, we can configure custom downpipe and wastegate dump set ups for fender exit, hood exit, axle dump, or even full length exhaust systems. Bring us your custom turbo header needs.



Not seeing what you need? Not a problem- We can custom build turbo elbows to fit your turbo header needs.
